Copyright by Servizio Clienti ANGELO PO Spa
39

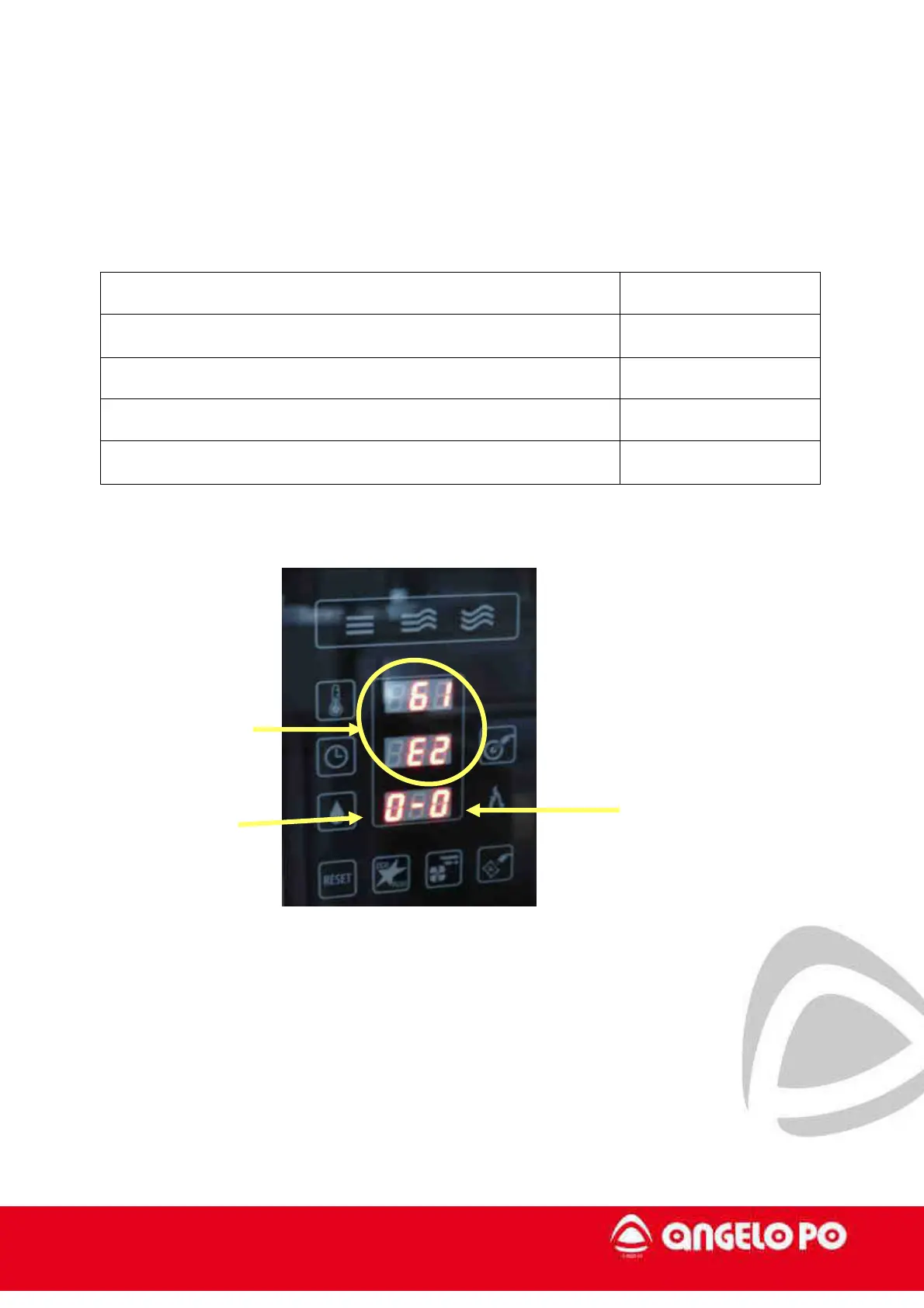

Oven configuration table
Tab 2
Oven model
Display indication
61E2, 82E2, 101E2, 122E
2
1 - 0
201E2, 202E2
2 - 0
61G2, 82G2, 101G2, 122G2
1 - 1
201G2, 202G2
2 - 2
Oven type
Number of
Inverters
Number of
Combustion Control
boards
38
40
Table of Contents
Default Chapter
2
Table of Contents
2
1 Commercial Model Number
4
Connection Diagram Electric and Gas
7
Water Characteristics
9
2 Functional Diagram Combi Oven
10
Open Valve Operation
11
Closed Valve Operation
12
Drain Cooldown / Steam Condensing Operation
14
Steam Producing Operation
15
3 Electronic Boards for Levels 2-3, Inverter, Fuses, Overload Relays
16
Electronic Boards Level 3 General Layout
16
Service" Menu
21
Explanation Table
28
Inverter
29
Electronic Boards Level 2 General Layout
32
Explanation Table
40
FX Fuses Description
41
4 Operation Testing, Adjusting, Installation Report, Gas Circuit Alarm
42
System Operation
42
Premixed System General Principles
42
Power Schemes
43
System Components
45
Gas Valve ( CSA Approved)
47
Mixer
48
Air Blower Fan
49
Blower Control Board
50
Combustion Control Board
51
General Functional Diagram
52
Spark Plug and Flame Detector Kit
53
Burner
54
Heat Exchanger
55
Exhaust Extraction Kit
56
Blower Control Board: Logic Operation
57
Ignition Standard Cycle
59
GAS Alarm: F4: Flame Missing
60
Gas Setup
61
Setup Gas
61
Recommended Values of Combustion
63
Adjustment During the Test
64
Problems During the Test Setup Wizard
67
Gas Flue Analysis
68
Installation Report
69
Gas Alarms and Burner Problem Solving
71
Gas Conversion
74
Levels 2: Gas Test
75
Periodic Gas Flue Analysis
78
5 Washing Cycles Levels 3
79
Washing Circuit Operating and Components
79
Clean Test
82
Washing Interruption
83
Washing Alarms Table
85
Cleaning Consumption Table
88
Cleaning Warning and Cleaning Blockage
89
Warning Descaling
91
6 Washing Cycles Levels 2
92
Washing Circuit Operating and Components
92
7 Dismantle and Reassembly Components
94
Encoder
94
Motor
95
Door Micro-Switch
96
Door Glass Frame Disassembly
97
Component Compartment Cooling System
98
Door Adjustment
99
Core Probe
100
Humidity Probe
101
Halogen Lamp Replacement
102
Lock Dismantling
103
Lock Dismantling 20 Trays Models
105
Spark Plug Replacement
107
Blower Fan Replacement
108
CPU and Display LCD Boards (LIV.3) Replacing
109
CPU and Display LCD Boards (LIV.3) Replacing
115
Nd Version)
115
Roll-In Adjustment RX201 - RX202
117
Scheduled Recommended Maintenance
119
8 Alarms
120
