7.2. Motor
To replace the motor, follow the instruction below:
1. motor from the left hand side, electrical components compartment (picture 1);
2. to disassemble the motor, unscrew the fixing screw on the motor shaft (picture 2);
3. pay attention to the washers, they should all be replaced when the motor is (picture
3);
4. Assembly sequence of the shaft sealing system: brass bushing, Corteco, Viton
gasket, present in the components compartment (see photo 4). When replacing the
Corteco it needs flattening with MOLIKOTE 41. For removal, you should use the
extractor p/n 6003060.

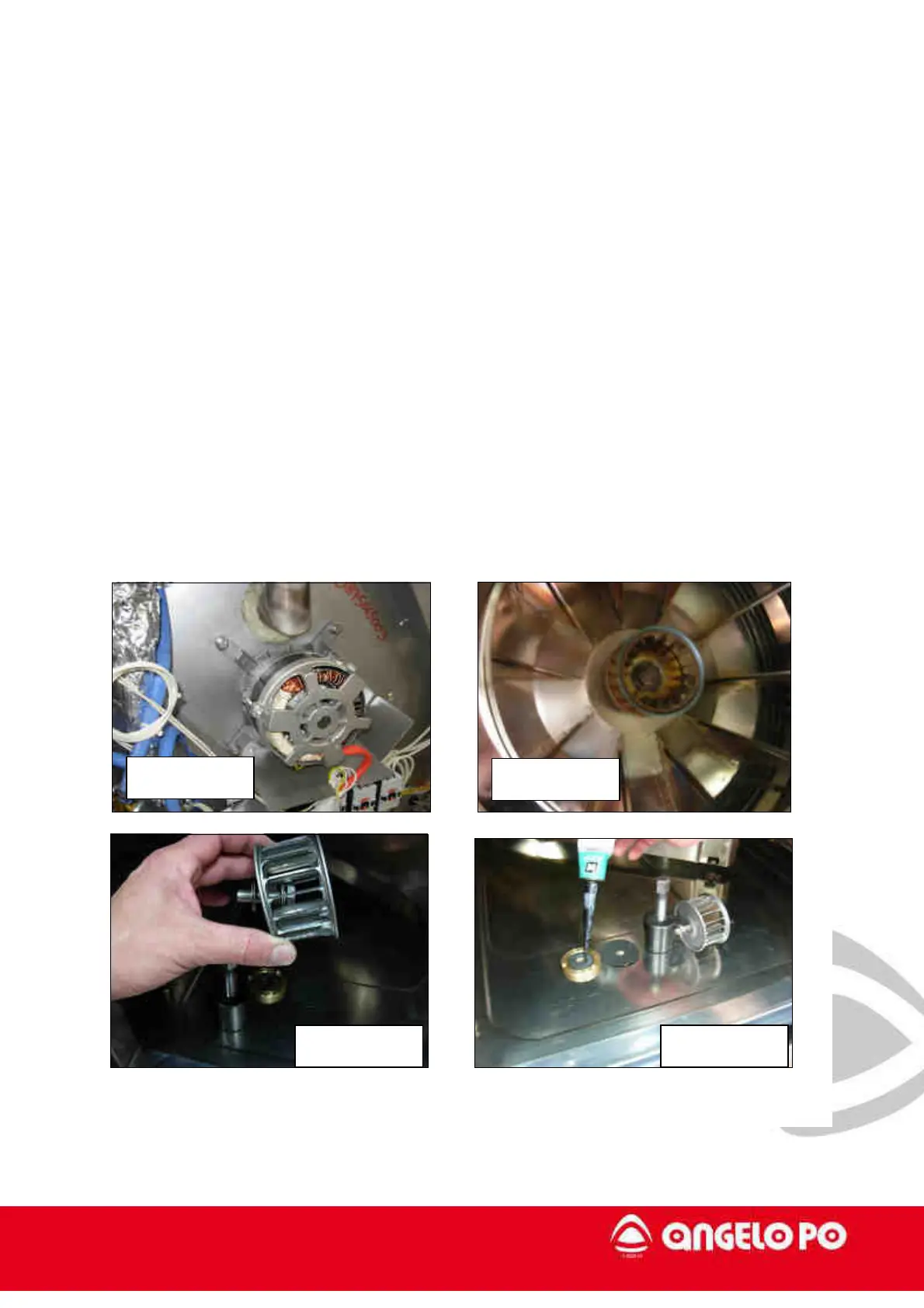

PICTURE 1
PICTURE 2
PICTURE 3 PICTURE 4
