One Stanton Street
|
Marinette, WI 54143-2542, USA
|
+1-715-735-7411
|
www.ansul.com
© 2018 Johnson Controls. All rights reserved. All specifications and other information shown were
current as of document revision date and are subject to change without notice.
|
Form No. F-81397-06

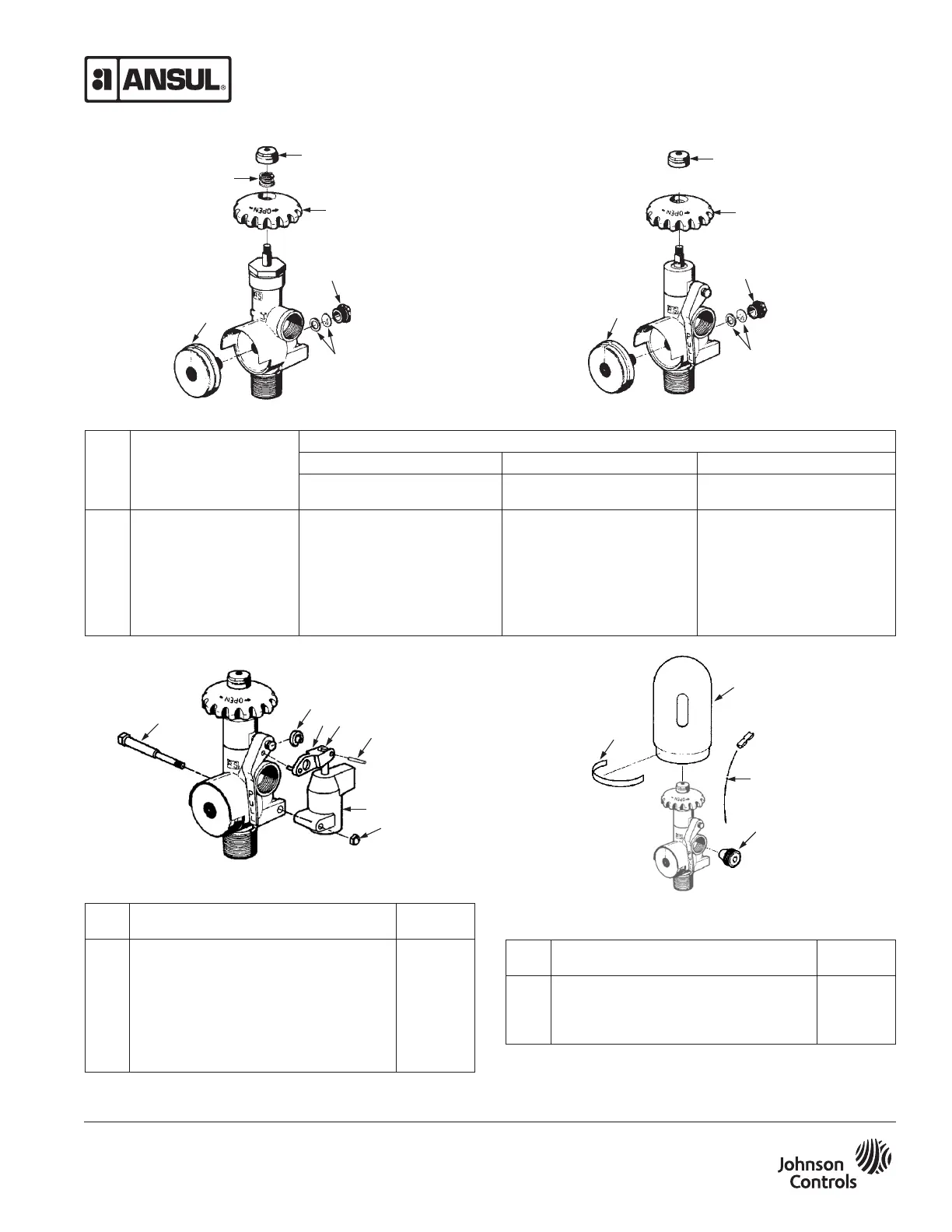

LARGE DRY CHEMICAL SYSTEMS
NITROGEN CYLINDER VALVES ACCESSORIES
AND ACTUATOR PARTS LIST
PAGE 1
ITEM
NO. DESCRIPTION
PART NO.
RS STANDARD VALVE RS QUICK-OPENING VALVE RS QUICK-OPENING VALVE
CYLINDER SIZE ft
3
(m
3
)
23/55/110/220 (0.7/1.6/3.1/6.2)
CYLINDER SIZE ft
3
(m
3
)
23/55/110/220 (0.7/1.6/3.1/6.2)
CYLINDER SIZE ft
3
(m
3
)
300/400 (8.5/11.3)
– Valve Assembly 78706 78705 419100
1 Nut, Handwheel 78710 78710 78710
2 Handwheel N/A N/A N/A
3 Spring N/A N/A N/A
4 Gauge 78707 78707 N/A
5 Safety Disc and Washer 78711 78711 419102
6 Plug, Safety Relief 78709 78709 N/A
4
5
6
2
3
1
002563
RS Standard Valve
4
6
2
1
002564
RS Quick-Opening Valve
5
5
7
6
3
1
4
002565
2
Pneumatic Valve Actuator
4
2
1
3
002566
Nitrogen Cylinder Valve Accessories
N/A – Not available as separate parts.
ITEM
NO. DESCRIPTION
PART
NO.
– Q.O. Valve Actuator Assembly 11160
1 Ring, Crescent 11322
2 Arm, Actuator 11389
3 Rod, Actuator 11301
4 Pin, Roll 11172
5 Body, Actuator 11161
6 Nut, Cap 11173
7 Stud, Anchor 11171
ITEM
NO. DESCRIPTION
PART
NO.
1 Cylinder Shipping Cap 73066
2 Label, Cylinder Shipping Cap 11391
3 Plug, Safety Shipping 11453
4 Inspection Seal 15999
Note: The converted metric values in this document are provided for dimensional reference only and do not reflect an actual measurement.
ANSUL, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited.
