36
OTHER INFORMATION
AirGap Faucet Installation
There are 3 colored tubings on your Air-Gap faucet. At the end of each 1/4” tubing there is a
“Quick Connect” fitting. The Quick Connect fittings is used to connect the Pure and Waste water line
from the RO unit to the Air Gap Faucet.
To connect the lines, simply insert each line into the fitting port tightly.
Hook-Up:
1. Assemble the faucet: There is a plastic “filler tube” in the slot next to the faucet’s on/off black le-
ver. Remove this filler-tube, and immediately insert the faucet spout into the slot to prevent the black
lever from falling out of its socket. Do Not press down the black lever until the spout is inserted
into the slot.
2. Please connect each tubing to your RO system and drain outlet as follows:
Blue 1/4” tubing: Connect the 1/4” Blue line from the Air-Gap faucet to the RO’s 1/4” Output
CLEAR Line (which is hooked up to the Stage-5 filter output port). See Fig.19&20
Red 1/4” tubing: Connect the 1/4” Red line from the Air-Gap faucet to the RO’s 1/4” BLACK Drain
Line on your RO system. See Fig.19&20
Black 3/8” tubing: Connect the 3/8” Black line on the Air-Gap faucet to the new 3/8” Drain Saddle
provided. See Fig.20

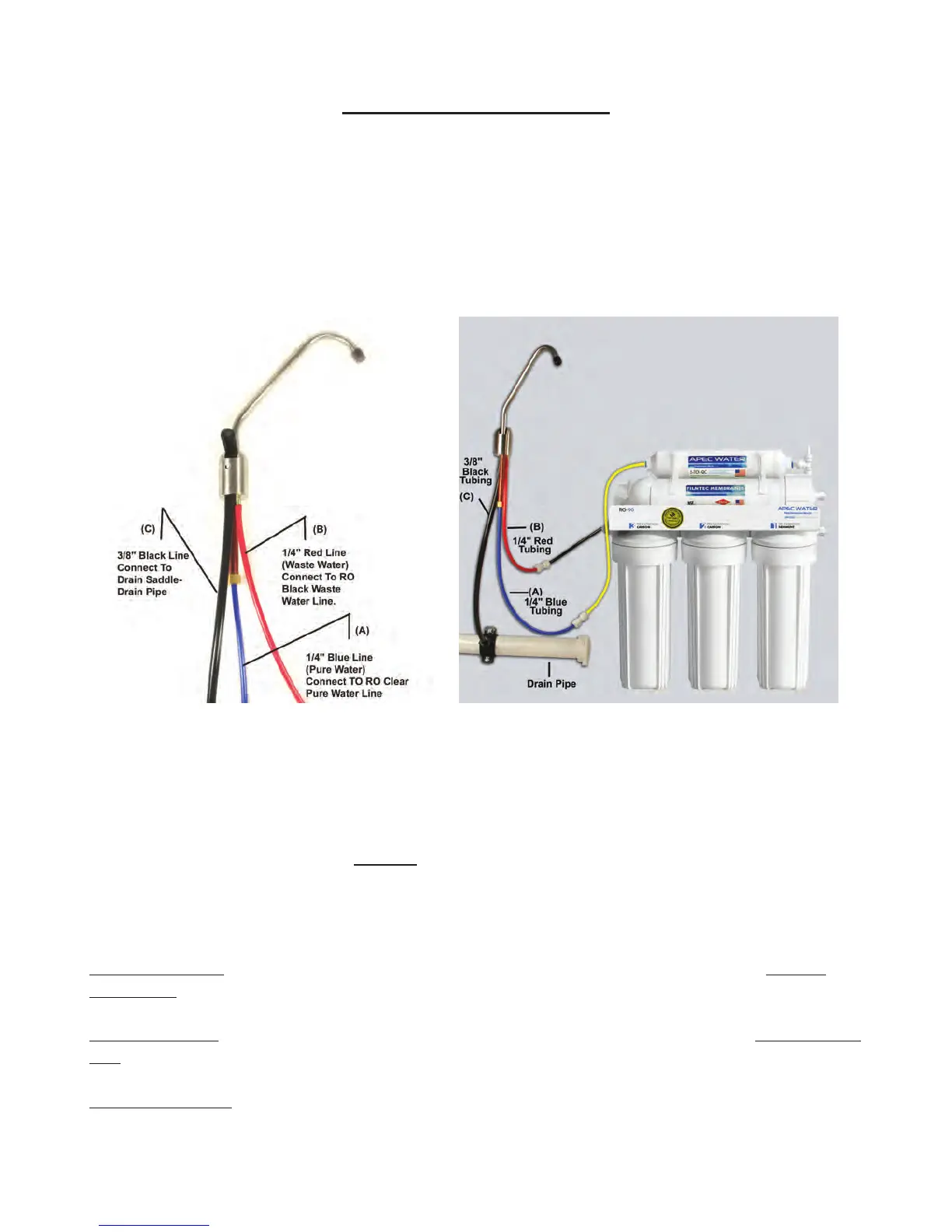

Fig. 19 Fig. 20
