Keys-Commands confi guration
With these assignments, the transmitter will send the following commands:
Opening M1 Closing M1 Opening M2 Closing M2
Opening M3 Closing M3 Opening M4 Closing M4
Opening M5 Closing M5 Opening M6 Closing M6
Centraliz. Centraliz.
Opening Closing
11. CENTRALIZED CONTROL - VIA RADIO
The easiest way to control more automatic systems via
radio is to store the same remote control in all modules
you wish to operate together. In this case whether
you add a remote control to the system, dedicated to
the simultaneous control or you lose the possibility
to control the automations individually. Additionally,
the commands transmitted by the dedicated remote
control will not have priority.
A more effi cient way to control more automations simultaneously, using the peculiar characteristics of the modules,
is programming them in order to receive centralized open and centralized close commands. In this way, you
get prioritized centralized commands as well as the possibility to simultaneously control more automations
individually and by group with one remote control.
Centralized commands have priority on local commands; for this reason, for the whole duration of the (opening or
closing) cycle controlled by a centralized commands, local commands are disabled.
Regardless of the operation logic selected, the reception of a centralized command causes the immediate
execution of the corresponding motion for the duration of the pre-set operating time.
“Stop” and “Safety” inputs remain always activated, thus enabling the user to stop or reverse the motion in
the event of dangers for people or property.

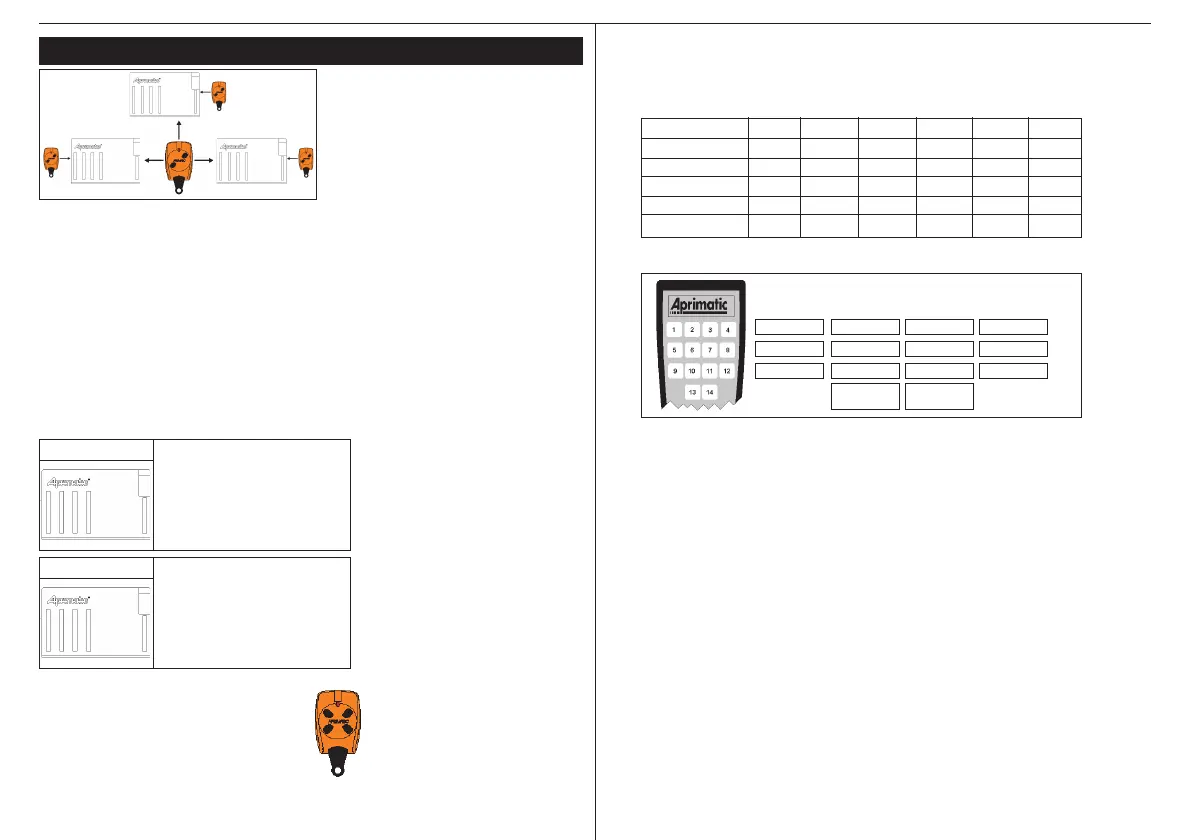

Example 1: individual or multiple control of two automations with one 4-key remote control.
Select the “step-by-step” logic for both modules and program the remote controls as follows.
With these assignments, the transmitter
will send the following commands
:
Module 1
Control
Centralized
Opening
Module 2
Control
Centralized
Closing
Radio commands M1 M2 M3 M4 M5 M6
Local Open T1 T3 T5 T7 T9 T11
Local Close T2 T4 T6 T8 T10 T12
Centralized Open T13 T13 T13 T13 T13 T13
Centralized Close T14 T14 T14 T14 T14 T14
Stop n.o. n.o. n.o. n.o. n.o. n.o.
Example 2: individual or multiple control of six automations (M1,M2,..,M6) with one 14-key remote control
(T1,T2,T3,..,T14).
Select the “Semiautomatic Open/Close” logic for all modules and program the remote controls as follows.
Assignments
Local Open
Key
1
Local Close
Key
2
Centralized Open
Key
3
Centralized Close
Key
4
Stop n.a.
Module 1
Assignments
Local Open
Key
2
Local Close
Key
1
Centralized Open
Key
3
Centralized Close
Key
4
Stop n.a.
Module 2
