3. Remove deck drive belt from rear drive
pulley. See Figure 47.
See Figure 48.
4. Remove one hairpin from drag link to
disconnect drag link from mower deck
bracket. Retain all parts for reinstallation.
5. Repeat step 4 on other side.
3. Remove one hair pin and one nylon flat
washer from deck lift lever. Retain
hardware for reinstallation. See
Figure 49.

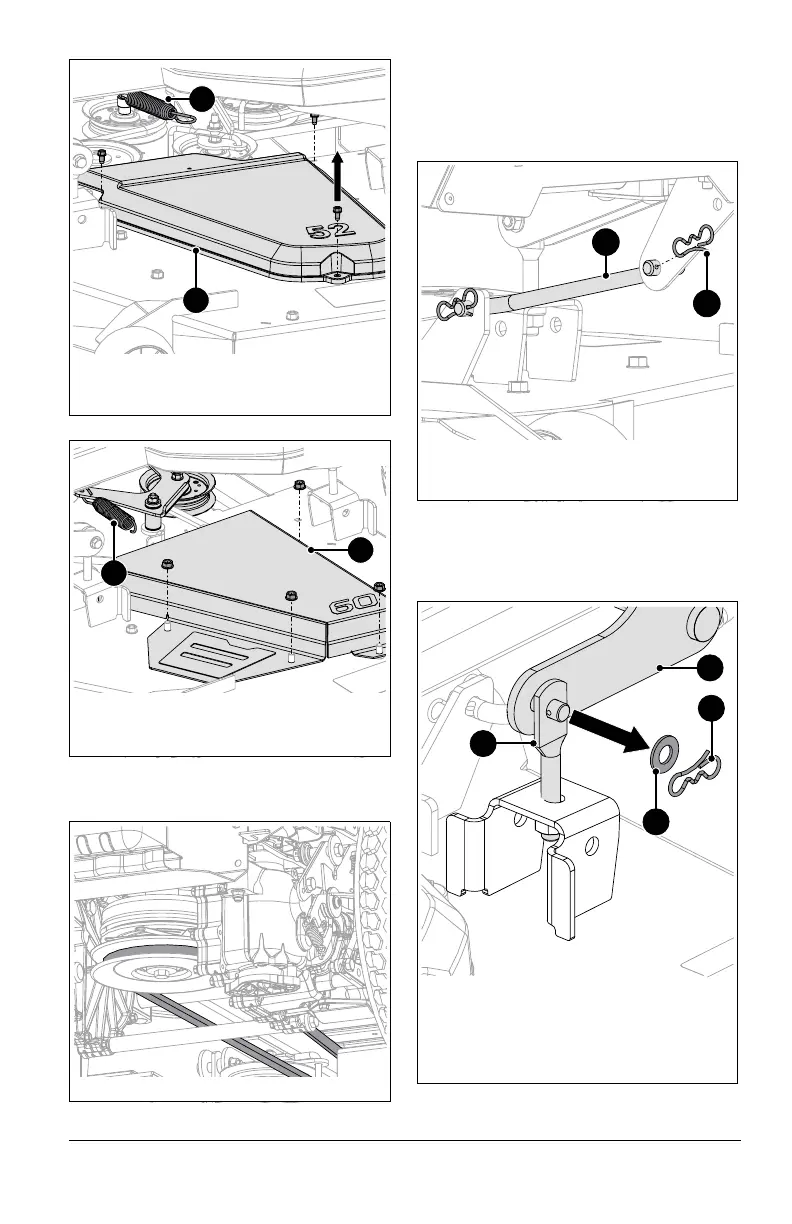

Figure 45
1. Spring
2. Belt Cover
1
2
52" Decks
60" Decks
1. Spring
2. Belt Cover
1
2
Figure 46
Figure 47
1
2
1. Drag Link
2. Hairpin
Figure 48
Figure 49
1. Deck Lift Lever
2. Deck Link
3. Nylon Flat Washer
4. Hair Pin
4
1
3
2
