DIGITAL VIDEO RECORDER QUICK START GUIDE

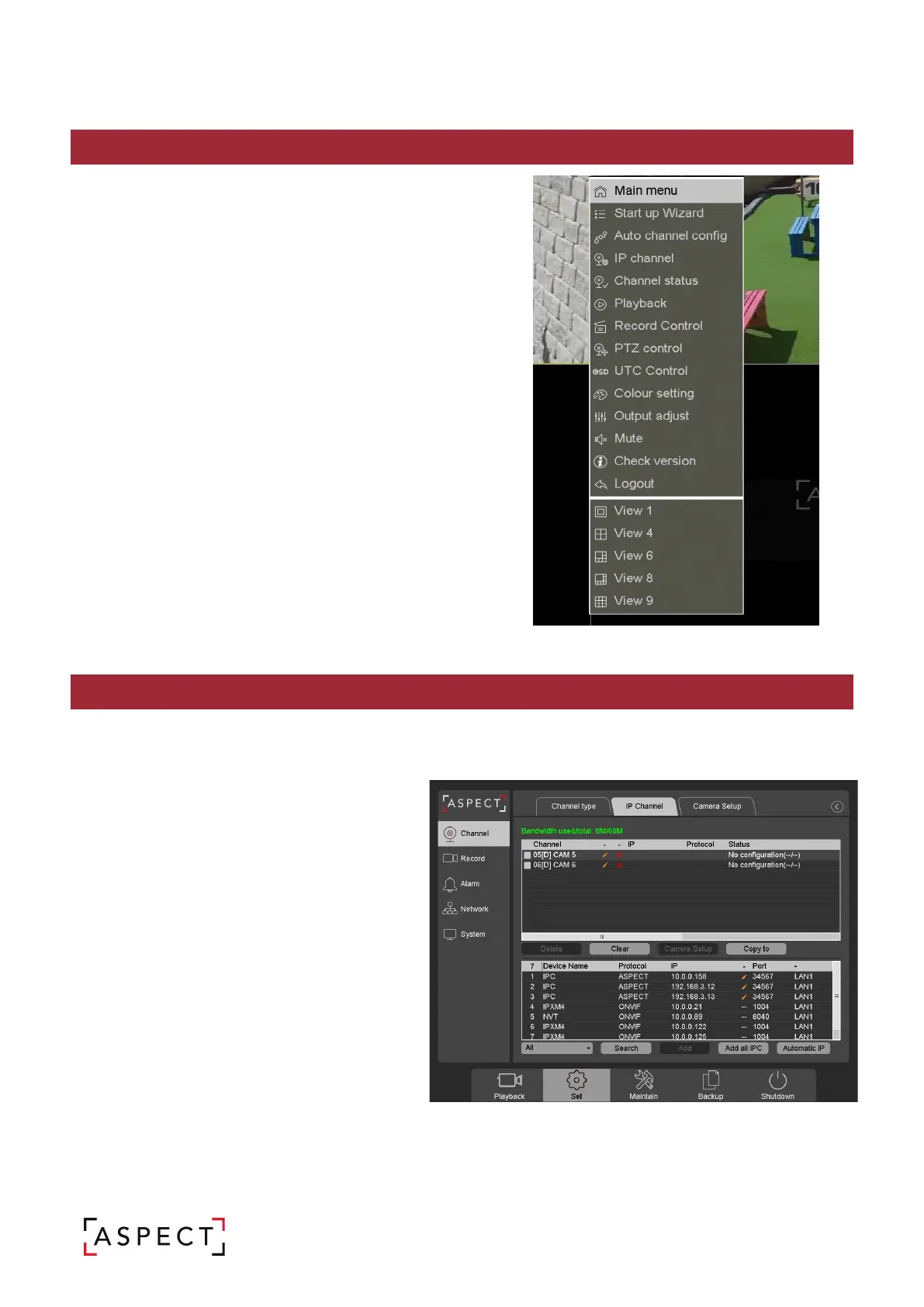

8. LIVE VIEW – ENTER THE MENU

9. ADDING IP CAMERAS

It is possible to connect cameras from the local network, by configuring network IP cameras to

the same IP range as the DVR. Refer to step 4 of this guide.

First, the HD channel needs to be changed to

IP, follow these steps:

Right click in Live view to open the menu,

select Main Menu > Setting > Channel >

Channel Type, use the tick boxes to

select channel to change to IP.

Select ‘Apply’ and the DVR will reboot

to apply the changes.

Adding IP cameras from the network;

Ensure the DVR is properly configured

to the local network.

2. Right click from Live view then click ‘IP

channel’.

Use the bottom window to scan the network for compatible IP cameras.

Select the channel position from the top window.

Double click the desired IP address to add the selected channel position above.

From Live View, right click the

mouse to access the menu.

 Main Menu – Access to all NVR function and settings

 Start-up Wizard – Launch the start up wizard

 Auto channel Config – Search and add all compatible

IP cameras

 IP Channel – Configure connection to IP cameras

 Channel status – View the status of recording of each

channel

 Playback – Shortcut to playback functions

 Record Control – Open control settings for recording

 PTZ Control – Open PTZ controls

 UTC Control – Open Coaxitron controls

 Colour Setting – Adjust the camera colour settings

 Output Adjust – Adjust the display output

 Mute – Turn off the sound

 Check Version – Opens system version information

 Logout – Logout, switch user, restart or shutdown

shortcut

 View – Change the Live View layout

Aspect DVR-8M-16 User Manual
