ASROCK 880GM PRO3 User Manual

1212
1212
12

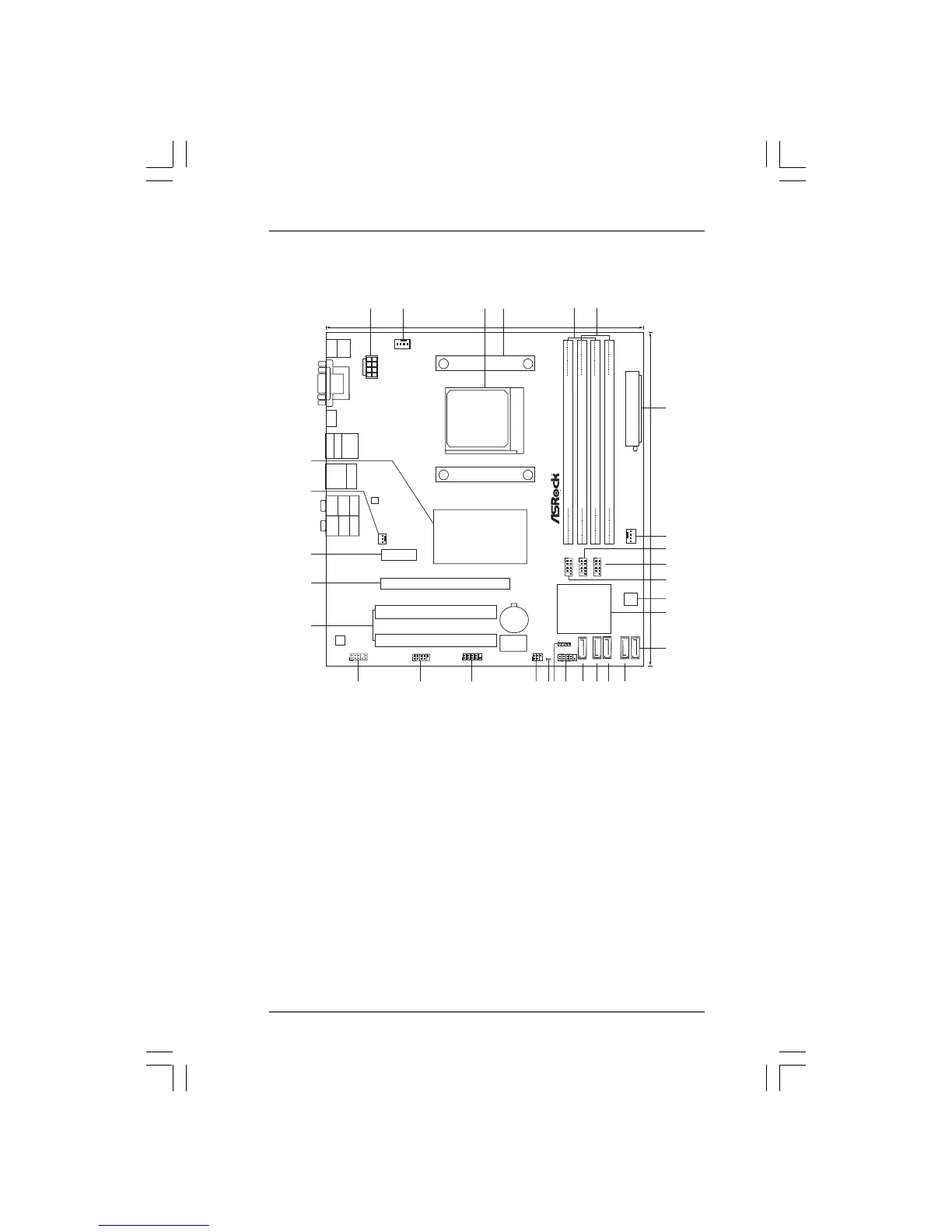

1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 17 SATA3 Connector (SATA3_2 (PORT 1), White)
2 CPU Fan Connector (CPU_FAN1) 18 SATA3 Connector (SATA3_1 (PORT 0), White)
3 AM3+ CPU Socket 19 System Panel Header (PANEL1, White)
4 CPU Heatsink Retention Module 20 Chassis Speaker Header
5 2 x 240-pin DDR3 DIMM Slots (SPEAKER 1, White)
(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 21 Clear CMOS Jumper (CLRCMOS1)
6 2 x 240-pin DDR3 DIMM Slots 22 Infrared Module Header (IR1)
(Dual Channel B: DDR3_A2, DDR3_B2; White) 23 Serial Port Connector (COM1)
7 ATX Power Connector (ATXPWR1) 24 Front Panel IEEE 1394 Header
8 Chassis Fan Connector (CHA_FAN1) (FRONT_1394, White)
9 USB 2.0 Header (USB8_9, Blue) 25 Front Panel Audio Header
10 USB 2.0 Header (USB6_7, Blue) (HD_AUDIO1, White)
11 USB 2.0 Header (USB10_11, Blue) 26 PCI Slots (PCI1-2)
12 SPI Flash Memory (32Mb) 27 PCI Express 2.0 x16 Slot (PCIE2; Blue)
13 Southbridge Controller 28 PCI Express 2.0 x1 Slot (PCIE1; White)
14 SATA3 Connector (SATA3_5 (PORT 4), White) 29 Power Fan Connector (PWR_FAN1)
15 SATA3 Connector (SATA3_4 (PORT 3), White) 30 Northbridge Controller
16 SATA3 Connector (SATA3_3 (PORT 2), White)
Super
I/O
CMOS
BATTERY
ATXPWR1
SOCKET AM3b
AMD
880G
Chipset
COM1
PCIE1
PCI1
PCI2
LAN
AUDIO
CODEC
1
CLRCMOS1
1
CPU_FAN1
HDLED RESET
PLED PWRBTN
1
PANEL1
SPEAKER1
1
HD_AUDIO1
1
24.4cm (9.6-in)
24.4cm (9.6-in)
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
32Mb
BIOS
IR1
1
AMD
SB850
Chipset
PCIE2
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
FSB800
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
SATA3_1
(
SATA3_2 SATA3_3 SATA3_4 SATA3_5
PORT0) (PORT 1) (PORT 2) (PORT 3) (PORT4)
USB 2.0
T:USB2
B: USB3
PS2
Keyboard
VGA1
DVI_CON1
HDMI1
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
eSATA1
IEEE 1394
USB 2.0
T:USB4
B: USB5
1
1
1
USB6_7 USB8_9 USB10_11
FRONT_1394
11
PWR_FAN1
HT3.0 DX10.1 AM3+
880GM Pro3
ErP/EuP Ready
140W CPU
1394a
USB 3.0
Designed in Taipei
RoHS
Support 8-Core CPU
Phenom II
DDR3 1866
Dual Channel
FSB2.6GHz
USB 3.0
T:USB0
B: USB1
ATX12V1
CHA_FAN1
Hybrid CrossFire
SATA3 6Gb/s
