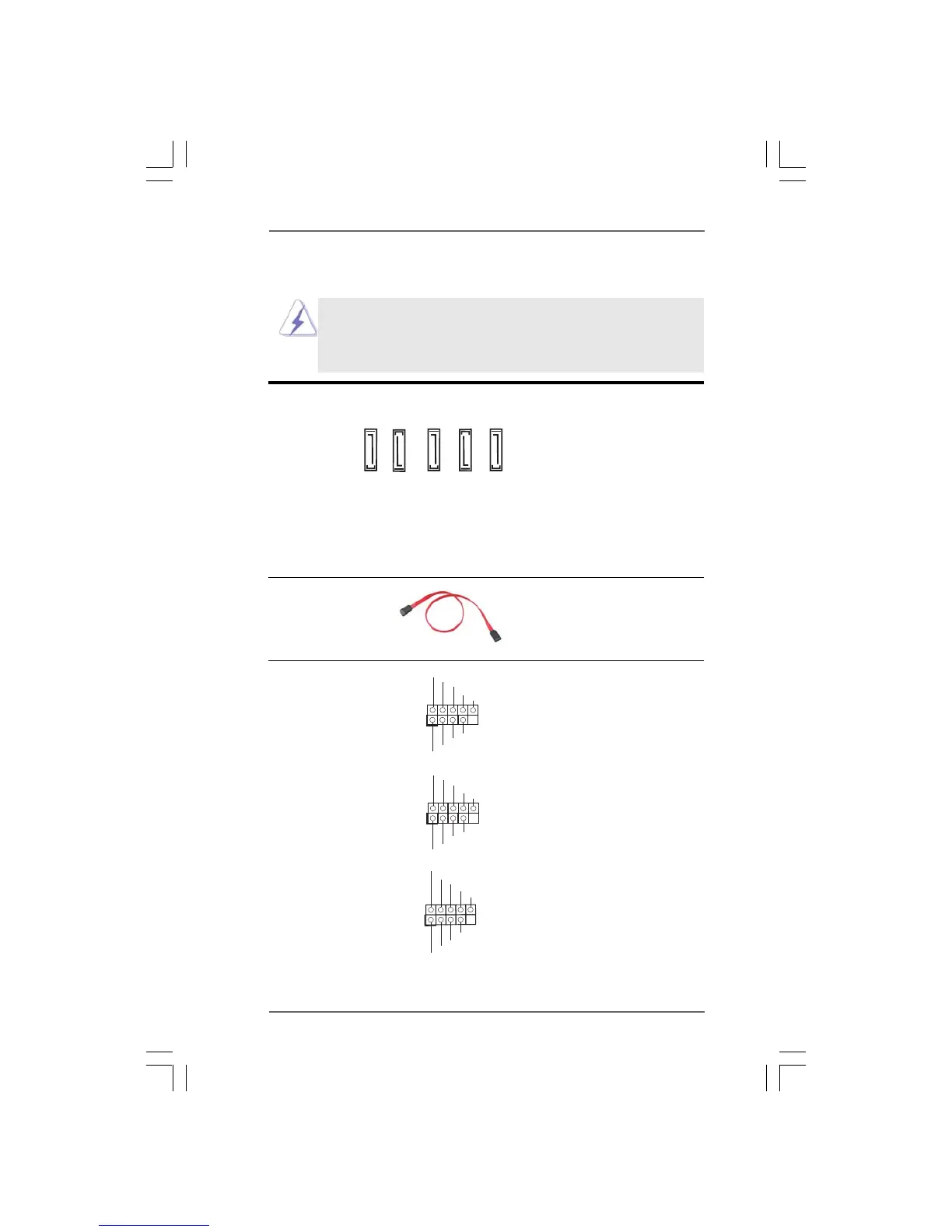

2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors
2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors
2.8 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA3 Connectors These five Serial ATA3
(SATA3_1 (PORT 0): (SATA3) connectors support
see p.12, No. 18) SATA data cables for internal
(SATA3_2 (PORT 1): storage devices. The current
see p.12, No. 17) SATA3 interface allows up to
(SATA3_3 (PORT 2): 6.0 Gb/s data transfer rate.
see p.12, No. 16)
(SATA3_4 (PORT 3):
see p.12, No. 15)
(SATA3_5 (PORT 4):
see p.12, No. 14)
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA3
(Optional) hard disk or the SATA3
connector on this motherboard.
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB10_11) ports on the I/O panel, there are
(see p.12 No. 11) three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB8_9)
(see p.12 No. 10)
(9-pin USB6_7)
(see p.12 No. 9)
1
USB_P WR
P-8
GND
DUMMY
USB_P WR
P+8
GND
P-9
P+9
1
USB_PWR
P-10
GND
DUMMY
USB_PWR
P+10
GND
P-11
P+11
SATA3_1 (PORT 0)
SATA3_2 (PORT 1)
SATA3_3 (PORT 2)
SATA3_4 (PORT 3)
SATA3_5 (PORT 4)
