ASROCK G41M-GS3 User Manual

2020
2020
20
2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors
2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors

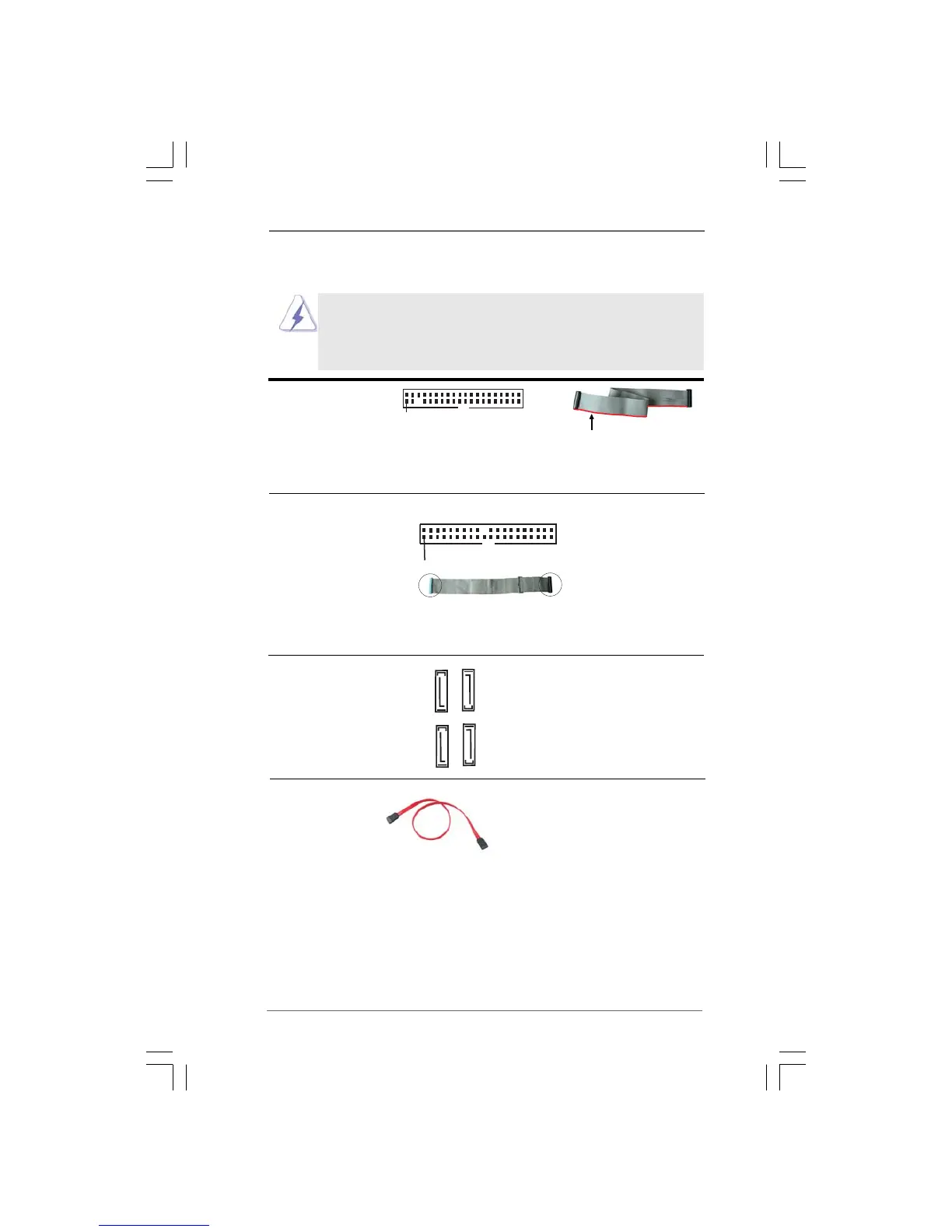

2.8 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
FDD connector
(33-pin FLOPPY1)
(see p.10 No. 20)
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
Primary IDE connector (Blue)
(39-pin IDE1, see p.10 No. 7)
Note: Please refer to the instruction of your IDE device vendor for the details.
Serial ATAII Connectors These Serial ATAII (SATAII)
(SATAII_1: see p.10, No. 13) connectors support SATAII
(SATAII_2: see p.10, No. 12) or SATA hard disk for internal
(SATAII_3: see p.10, No. 10) storage devices. The current
(SATAII_4: see p.10, No. 11) SATAII interface allows up to
3.0 Gb/s data transfer rate.
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA /
(Optional) SATAII hard disk or the SATAII
connector on the motherboard.
FLOPPY1
Pin1
the red-striped side to Pin1
connect the black end
to the IDE devices
connect the blue end
to the motherboard
80-conductor ATA 66/100 cable
IDE1
PIN1
SATAII_4
SATAII_3
SATAII_2
SATAII_1

ASROCK G41M-GS3 Specifications

General

Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	800, 1066, 1333 MHz
Processor socket	LGA 775 (Socket T)
Number of SATA connectors	4
Number of Parallel ATA connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Certification	FCC, CE
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Graphics card	GMA X4500
Maximum graphics card memory	1759 MB
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111D(L)
Networking features	Gigabit LAN
BIOS type	AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	193 mm
Width	244 mm
