ASROCK X570 Steel Legend User Manual

English
84

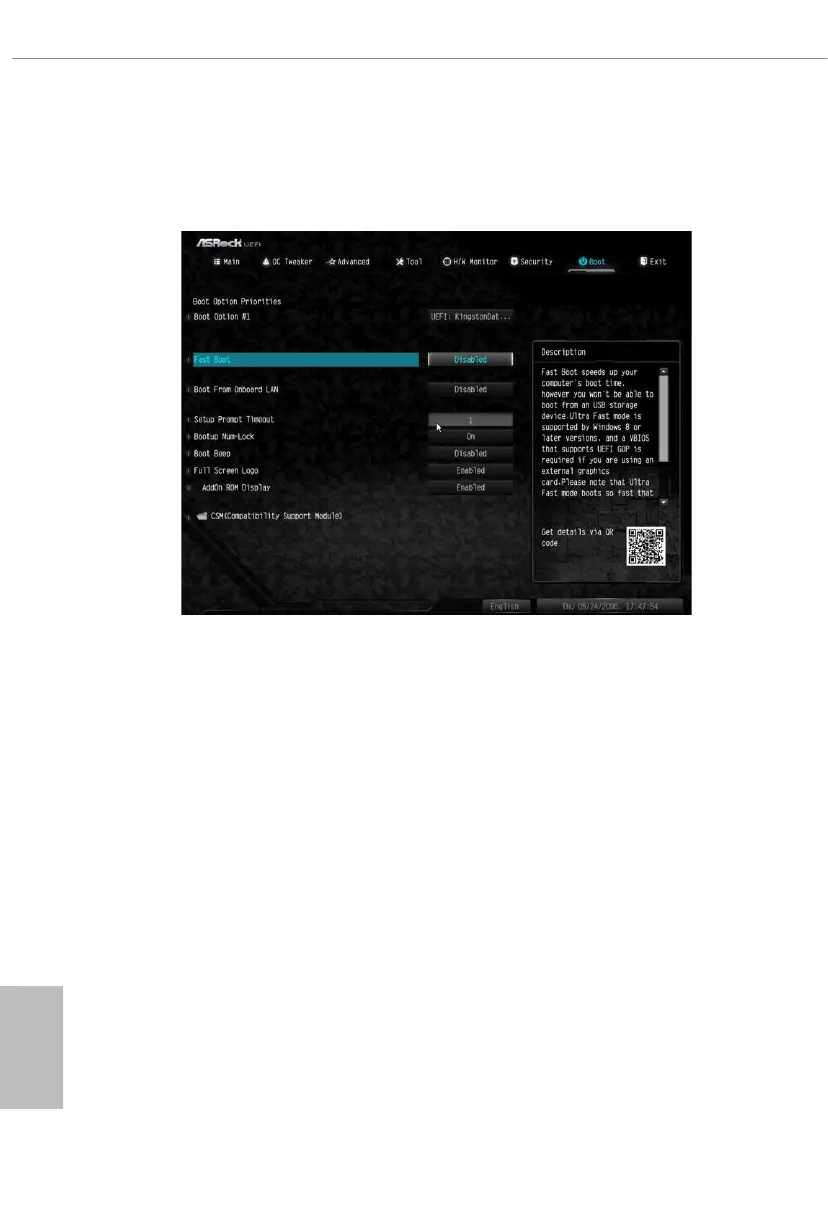

4.8 Boot Screen
is section displays the available devices on your system for you to congure the
boot settings and the boot priority.
Fast Boot
Fast Boot minimizes your computer's boot time. In fast mode you may not boot
from an USB storage device.
Boot From Onboard LAN
Allow the system to be waked up by the onboard LAN.
Setup Prompt Timeout
Congure the number of seconds to wait for the setup hot key.
Bootup Num-Lock
Select whether Num Lock should be turned on or o when the system boots up.
Boot Beep
Select whether the Boot Beep should be turned on or o when the system boots up. Please
note that a buzzer is needed.
Full Screen Logo
Enable to display the boot logo or disable to show normal POST messages.

ASROCK X570 Steel Legend Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Audio chip	Realtek ALC1220
Certification	FCC, CE, ErP/EuP
Component for	PC
Motherboard chipset	AMD X570
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3466, 3600, 4133, 4200, 4266, 4300, 4400 MHz
BIOS type	UEFI AMI
ACPI version	5.1
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	2.3
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	-
DisplayPort version	1.2
PS/2 ports quantity	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
LAN controller	Intel® I211-AT
Ethernet interface type	Gigabit Ethernet
Weight	1500 g
Number of M.2 (M) slots	2
Number of SATA III connectors	8
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA III
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	87 mm
