ASUS A88X-PLUS
1-3

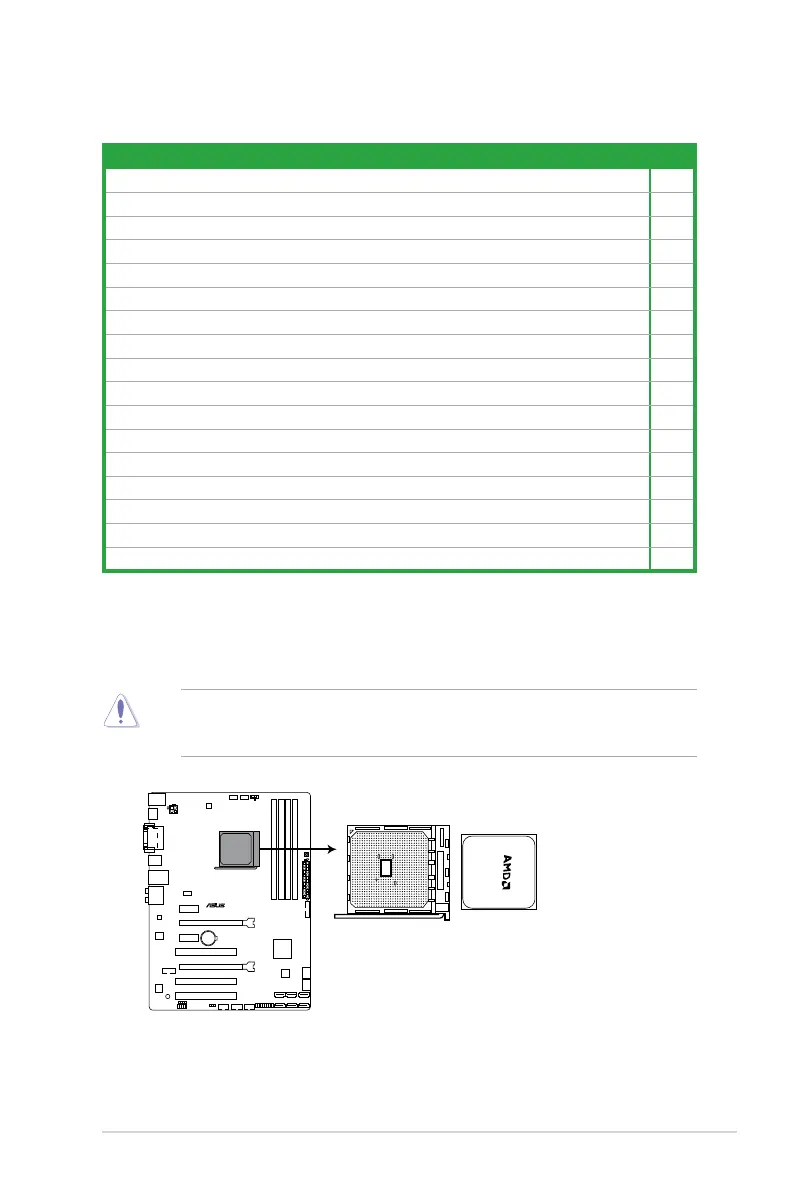

1.2.4 Layout contents
A88X-PLUS
A88X-PLUS CPU socket FM2+
1.3 Accelerated Processing Unit (APU)
This motherboard comes with a FM2+ socket designed for AMD
®
A-series and Athlon™
processors.
Ensure that you use an APU designed for the FM2+ socket. The APU ts in only one
correct orientation. DO NOT force the APU into the socket to prevent bending the pins and
damaging the APU!
Connectors/Jumpers/Slots/LED Page
1. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-15
2. CPU and chassis fan connectors (4-pin CPU_FAN, and 4-pin CHA_FAN1/2)
1-14
3. AMD FM2+ socket
1-3
4. GPU Boost switch
1-21
5. GPU Boost LED (GPU_LED)
1-22
6. DDR3 DIMM slots
1-7
7.
MemOK! button 1-20
8. DRAM LED
1-22
9. USB 3.0 connector (20-1 pin USB3_34)
1-19
10. SATA 6.0 Gb/s connectors (7-pin SATA6G_1~8)
1-16
11. System panel connector (20-8 pin PANEL)
1-17
12. USB 2.0 connectors (10-1 pin USB56, USB78, USB910)
1-19
13. Clear RTC RAM (3-pin CLRTC)
1-11
14. Digital audio connector (4-1 pin SPDIF_OUT)
1-14
15. Front panel audio connector (10-1 pin AAFP)
1-18
16. Standby power LED (SB_PWR)
1-21
17. Serial port connector (10-1 pin COM)
1-18

Asus A88X-PLUS Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1333, 1600, 2133, 2200, 2250, 2400 MHz
Processor socket	Socket FM2+
Processor manufacturer	AMD
Compatible processor series	AMD A
USB 2.0 connectors	3
Number of SATA connectors	8
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
RAID levels	1, 5, 10
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	4
LAN controller	Realtek 8111G
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	AMD A88X
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	2048 MB
Parallel processing technology support	Quad-GPU CrossFireX
BIOS type	UEFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit
Cables included	SATA

Weight and Dimensions

Depth	226 mm
Width	305 mm
