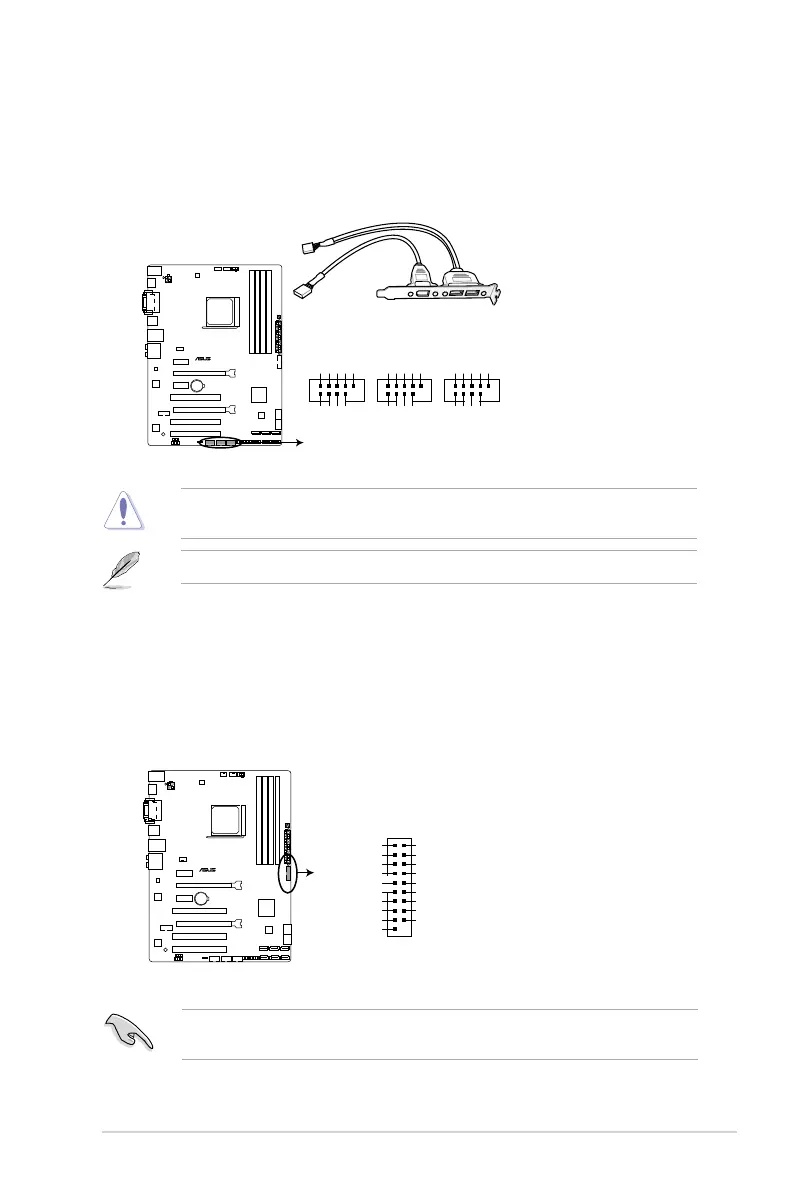

7. USB 2.0 connectors (10-1 pin USB56, USB78, USB910)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
8. USB 3.0 connector (20-1 pin USB3_34)
These connectors allow you to connect a USB 3.0 module for additional USB 3.0 front
or rear panel ports. With an installed USB 3.0 module, you can enjoy all the benets of
USB 3.0 including faster data transfer speeds of up to 5Gbps, faster charging time for
USB-chargeable devices, optimized power efciency and backward compatibility with
USB 2.0.
You can connect the ASUS front panel USB 3.0 bracket to this connector to obtain the front
panel USB 3.0 solution.
A88X-PLUS
A88X-PLUS USB2.0 connectors
USB+5V USB_P9- USB_P9+ GND NC
USB+5V
USB_P10-
USB_P10+
GND
USB910
PIN 1
USB+5V USB_P7- USB_P7+ GND NC
USB+5V
USB_P8-
USB_P8+
GND
USB78
PIN 1
USB+5V USB_P5- USB_P5+ GND NC
USB+5V
USB_P6-
USB_P6+
GND
USB56
PIN 1
A88X-PLUS
A88X-PLUS USB3.0 Front panel connector
USB3_34
GND
IntA_P1_D+
IntA_P1_D-
GND
IntA_P1_SSTX+
GND
IntA_P1_SSTX-
IntA_P1_SSRX+
IntA_P1_SSRX-
USB3+5V
PIN 1
IntA_P2_D+
IntA_P2_D-
GND
IntA_P2_SSTX+
IntA_P2_SSTX-
GND
IntA_P2_SSRX+
IntA_P2_SSRX-
USB3+5V

Asus A88X-PLUS Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1333, 1600, 2133, 2200, 2250, 2400 MHz
Processor socket	Socket FM2+
Processor manufacturer	AMD
Compatible processor series	AMD A
USB 2.0 connectors	3
Number of SATA connectors	8
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
RAID levels	1, 5, 10
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	4
LAN controller	Realtek 8111G
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	AMD A88X
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	2048 MB
Parallel processing technology support	Quad-GPU CrossFireX
BIOS type	UEFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit
Cables included	SATA

Weight and Dimensions

Depth	226 mm
Width	305 mm
