ASUS CUSL2 Users Manual 29
3. HARDWARE SETUP
Expansion Cards
3. H/W SETUP

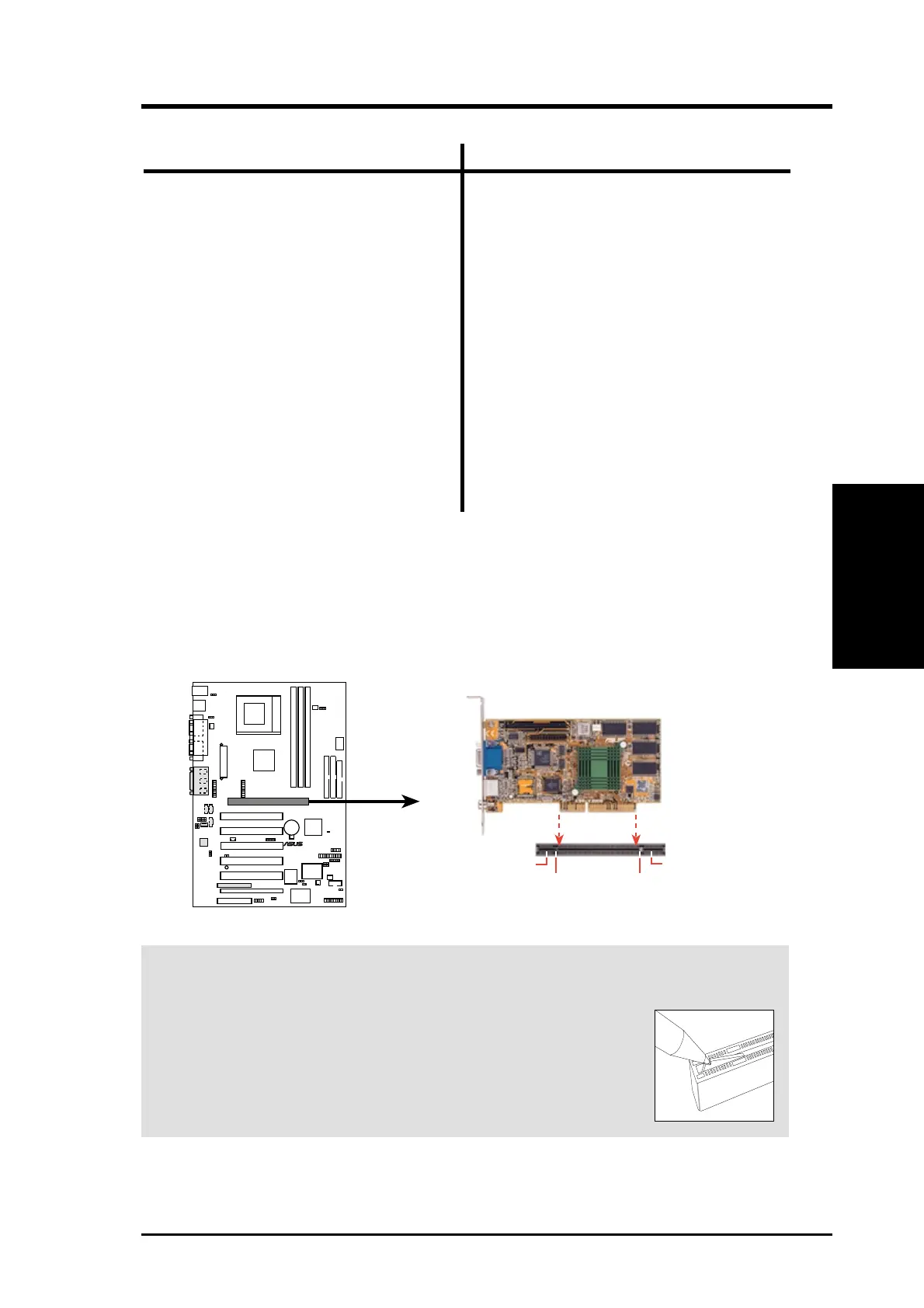

3.7.4 Accelerated Graphics Port (AGP) Pro Slot
This motherboard provides an accelerated graphics port (AGP) pro slot to support a
new generation of AGP graphics cards with ultra-high memory bandwidth.
CUSL2 Accelerated Graphics Port (AGP PRO)
TOP VIEW
Rib (inside slot) Rib
20-pin bay
28-pin bay
AGP Card without Retention Notch
CUSL2
®
CAUTION! The AGP Pro slot is shipped with a warning label over the 20-pin bay.
DO NOT remove this label and the safety tab underneath it if you will be using an
AGP card without a retention notch. Removing may cause the
card to shift and may cause damage to your card, slot, and moth-
erboard. Remove ONLY when you will be using an AGP Pro
card. Use a rigid tip, such as a pen tip, to dislodge and remove the
tab from the bay.
Removing the tab
Follow the table below to install CNR cards.
CNR1 CNR2
Primary Audio ---
Primary Audio Secondary Modem
Primary Audio Ethernet LAN
Primary Audio HomePNA
Primary Audio + Modem ---
Primary Audio + Modem Ethernet LAN
Primary Audio + Modem HomePNA
Primary Modem ---
Primary Modem Ethernet LAN
Primary Modem HomePNA
--- Primary Modem
Ethernet LAN Primary Modem
HomePNA Primary Modem
