1.5 System memory
1.5.1 Overview
This motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched
differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for
better performance with less power consumption.

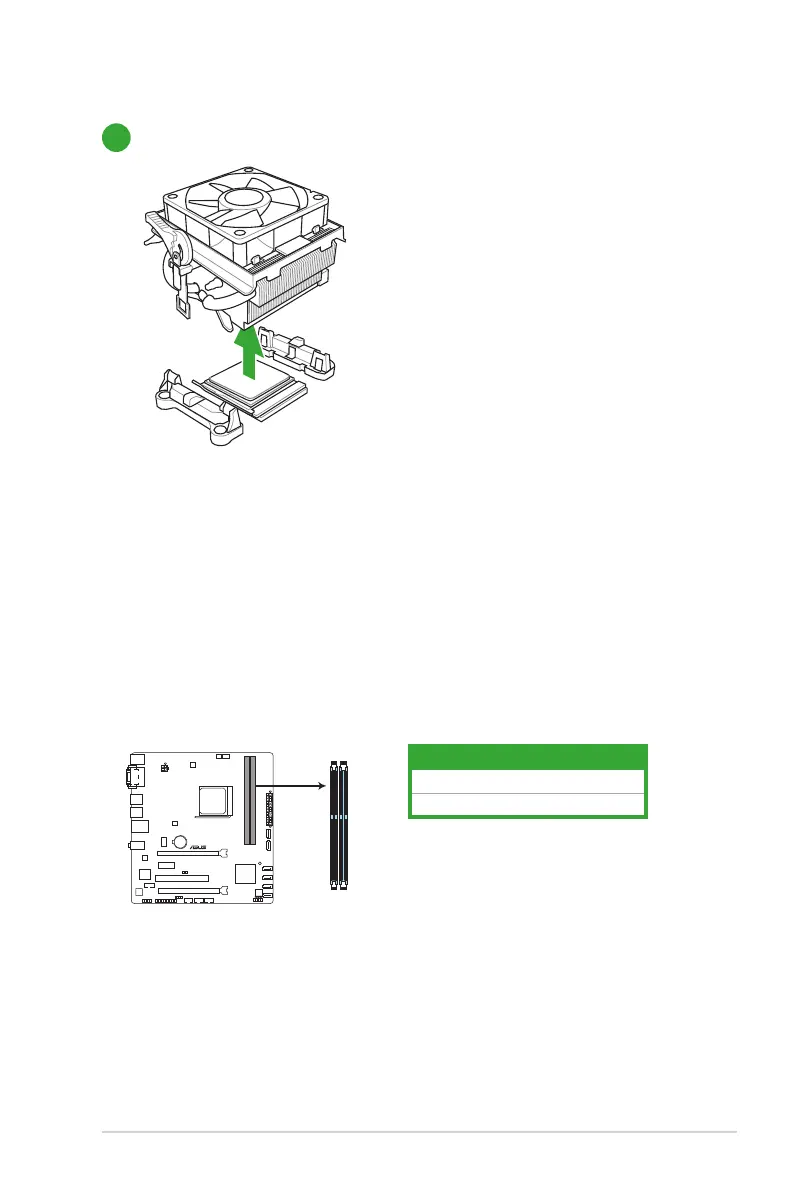

The gure illustrates the location of the DDR3 DIMM sockets:
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1
F1A55-M LE R2.0
F1A55-M LE R2.0 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_B1

Asus F1A55-M LE R2.0 Specifications

General

ECC	No
Non-ECC	Yes
Internal memory	32 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1066, 1333, 1600, 1866, 2250 MHz
Processor socket	Socket FM2
Processor manufacturer	AMD
Compatible processor series	AMD A, AMD E2
USB 2.0 connectors	3
Number of COM connectors	1
Number of SATA connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55 FCH
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 3, 10, JBOD
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	Radeon HD 6000
DirectX version	11
Maximum resolution	1920 x 1200 pixels
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Cables included	SATA
BIOS type	UEFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	229 mm
Width	244 mm
