Asus F1A55-M LK R2.0 User Manual

1.10 Connectors

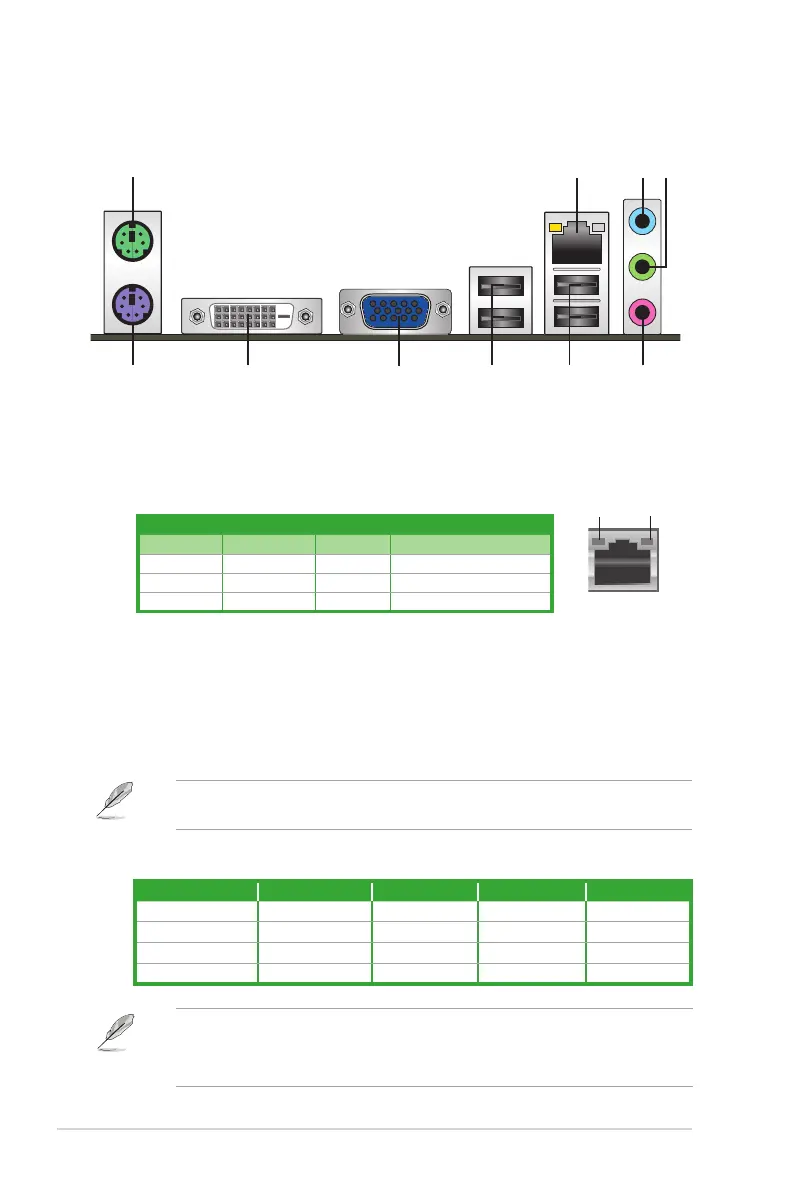

1.10.1 Rear panel ports
1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
3. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
4. Line Out port (lime). This port connects to a headphone or a speaker. In 4-channel,
6-channel, and 8-channel congurations, the function of this port becomes Front
Speaker Out.
5. Microphone port (pink). This port connects a microphone.
3 42
57 69 8
1
10
Refer to the audio conguration table below for the function of the audio ports in the 2, 4, 6,
or 8-channel conguration.
Audio 2, 4, 6, 8-channel conguration
Port Headset 2-channel 4-channel 6-channel 8-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) - - - Side Speaker Out
To congure an 8-channel audio output:
Use a chassis with HD audio module in the front panel to support an 8-channel audio
output.
Chapter 1: Product introduction1-20

Asus F1A55-M LK R2.0 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD A, AMD E2
Maximum number of SMP processors	1
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
Graphics card	Radeon HD 6000
DirectX version	11
Maximum resolution	1920 x 1200 pixels
Parallel processing technology support	LucidLogix Virtu
PCI Express slots version	2.0
PCI Express configurations	1x1, 1x16
Trial software	Antivirus
Cables included	SATA
Bundled software	ASUS Utilities ASUS Update
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	186 mm
Width	226 mm
