Unplug all power cables before installing the CPU.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components. ASUS will shoulder the cost of repair only if the damage is shipment/
transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1155 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.

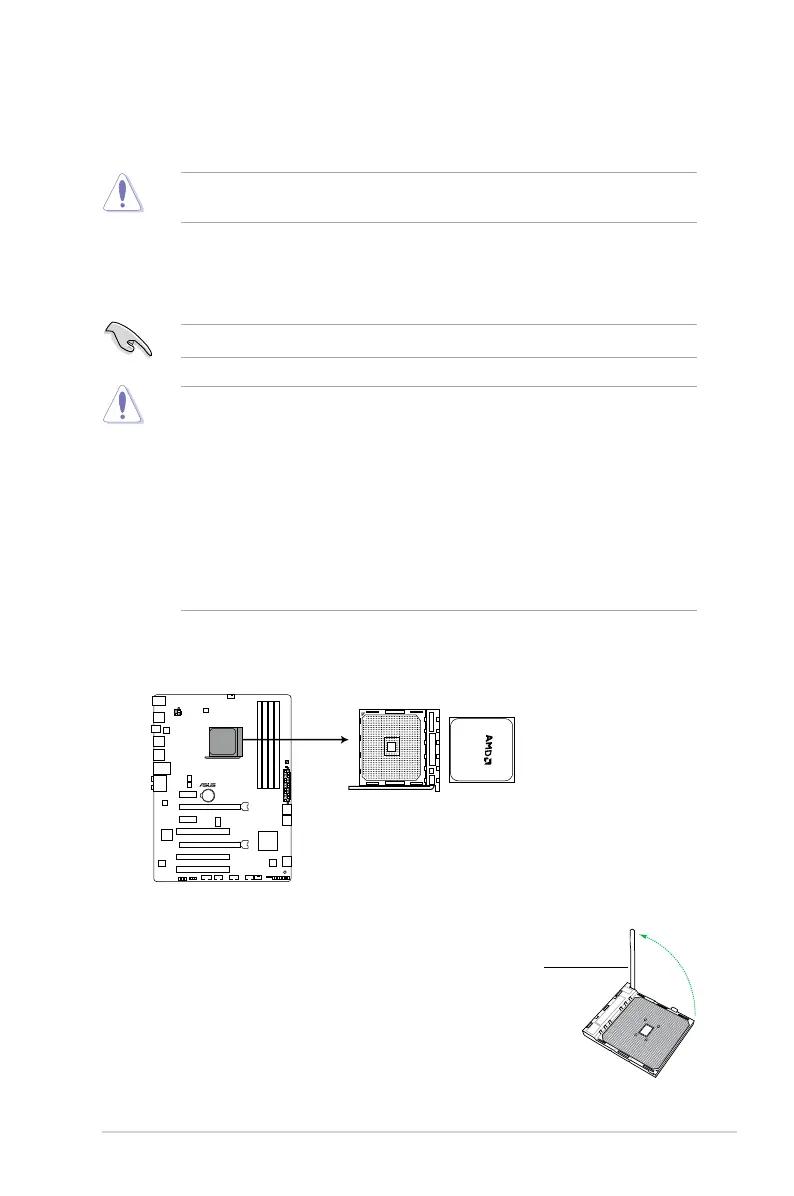

1.4.1 Installing the CPU
1.4 Accelerated Processing Unit (APU)
This motherboard comes with an FM1 socket designed for AMD
®
Fusion™ A- & E2- series
accelerated processors with AMD
®
Radeon™ HD 6000 series graphics.
Use an APU designed for the FM1 socket. The APU ts in only one correct orientation. DO
NOT force the APU into the socket to prevent bending the pins and damaging the APU!
To install an APU:
1. Locate the FM1 socket on the motherboard.
2. Press the lever sideways to unlock the
socket, then lift it up to a 90°-100° angle.
Socket lever
F1A55 R2.0
F1A55 R2.0 CPU socket FM1
