Asus F1A55 R2.0 User Manual

1-22
Chapter 1: Product introduction
Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default
position. Removing the cap will cause system boot failure!
• If the steps above do not help, remove the onboard battery and move the jumper
again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the
battery.
• You do not need to clear the RTC when the system hangs due to overclocking. For
system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature.
Shut down and reboot the system, then the BIOS automatically resets parameter
settings to default values.
1.8 Connectors

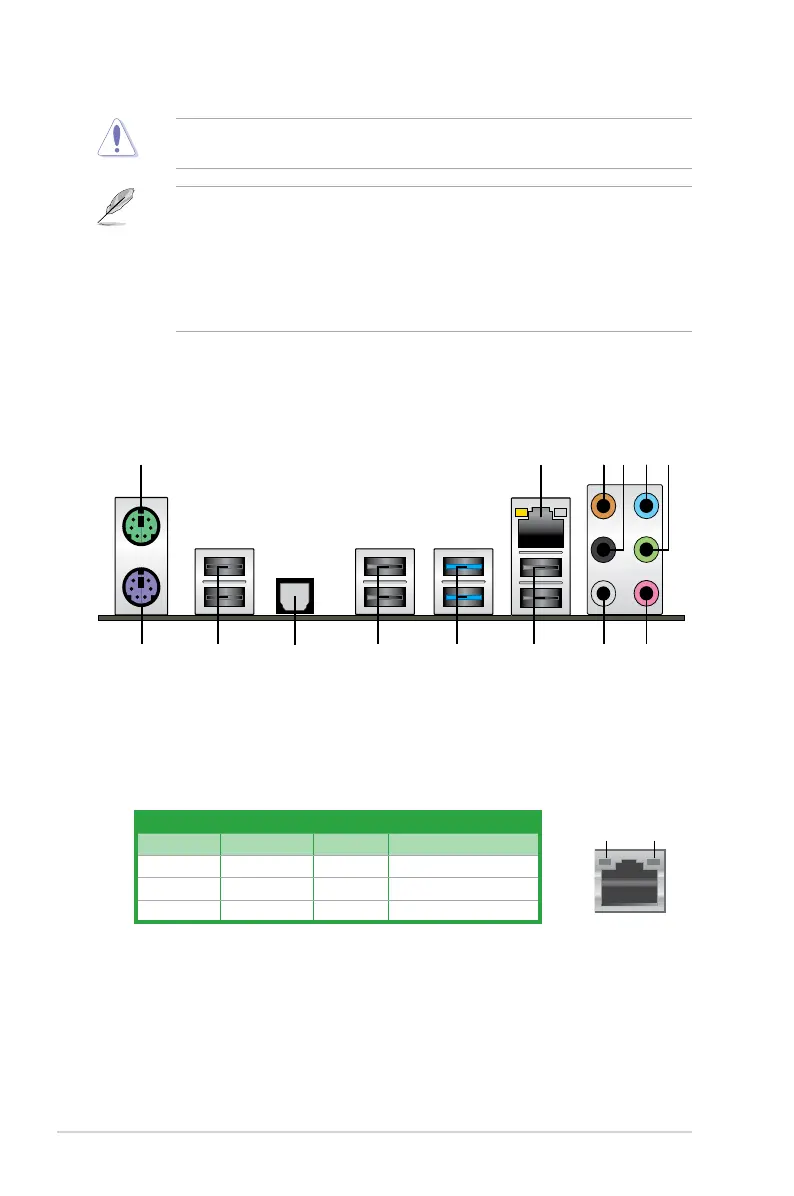

1.8.1 Rear panel connectors
LAN port
Speed
LED
Activity Link
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
12
11 1013
2
9
1
14
3 4 5 6
78
1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. LAN (RJ-45) port.
This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications

Asus F1A55 R2.0 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1866, 2250 MHz
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD A, AMD E2
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA II connectors	6
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Motherboard chipset	AMD A55
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
Graphics card	Radeon HD 6000
DirectX version	11
Parallel processing technology support	2-Way CrossFireX
PCI Express slots version	2.0
PCI Express configurations	1x4, 1x16, 2x1
Controller interface type	AMD A55 FCH
Trial software	Antivirus
Cables included	SATA
Bundled software	ASUS Utilities\\r ASUS Update
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	224 mm
Width	305 mm
