1.5 Motherboard overview
1.5.1 Placement direction
When installing the motherboard, ensure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.
DO NOT overtighten the screws! Doing so can damage the motherboard.
Place this side towards
the rear of the chassis.
1.5.2 Screw holes

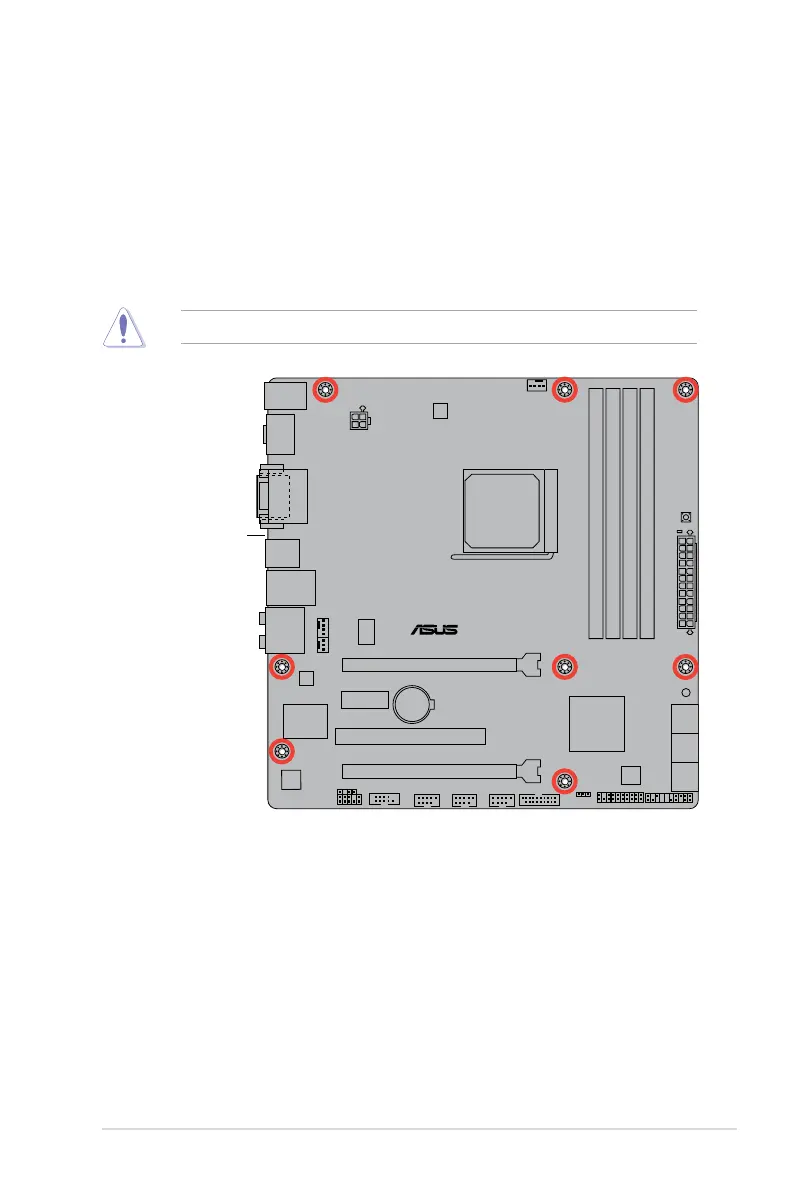

Place eight screws into the holes indicated by circles to secure the motherboard to the
chassis.
ASUS F1A75-M 1-5

Asus F1A75-M Specifications

General

Form Factor	Micro ATX
Socket	FM1
Memory Type	DDR3
Max Memory	64GB
PCI Express x16	1
SATA Ports	6 x SATA 6Gb/s
Video Output	D-Sub, DVI, HDMI
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Chipset	AMD A75
Memory Slots	4
Memory Standard	DDR3 1866/1600/1333/1066 MHz
USB Ports	4 x USB 3.0
LAN	Realtek 8111E Gigabit LAN
Onboard Video	Yes
RAID Support	RAID 0, RAID 1, RAID 10
PCI Express x1	2
