Asus F1A75-M User Manual

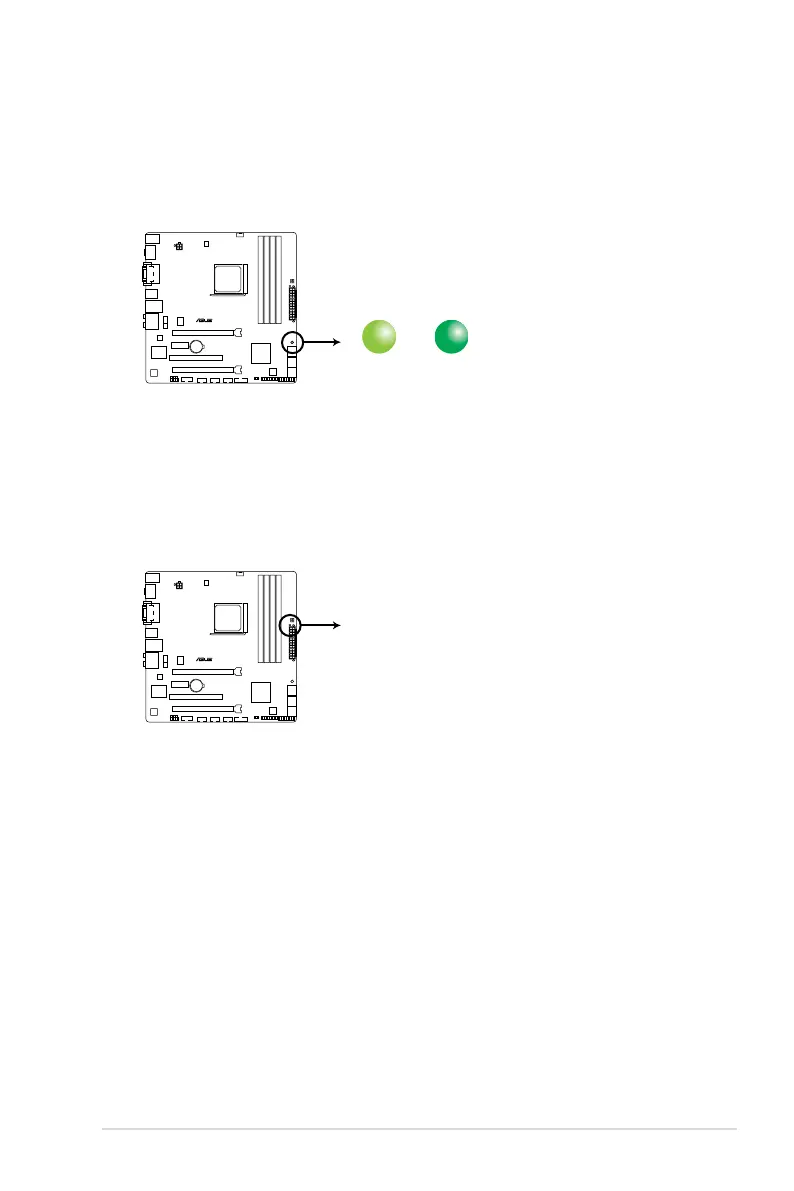

1.12 Onboard LEDs
1. Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
2. DRAM LED
DRAM LED checks the DRAM in sequence during motherboard booting process. If an
error is found , the LED next to the error device will continue lighting until the problem
is solved. This user-friendly design provides an intuitional way to locate the root
problem within a second.
F1A75-M
SB_PWR
ON
Standby Power Powered Of
f
OFF
F1A75-M Onboard LED
F1A75-M
F1A75-M DRAM LED
DRAM LED
ASUS F1A75-M 1-27

Asus F1A75-M Specifications

General

Form Factor	Micro ATX
Socket	FM1
Memory Type	DDR3
Max Memory	64GB
PCI Express x16	1
SATA Ports	6 x SATA 6Gb/s
Video Output	D-Sub, DVI, HDMI
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Chipset	AMD A75
Memory Slots	4
Memory Standard	DDR3 1866/1600/1333/1066 MHz
USB Ports	4 x USB 3.0
LAN	Realtek 8111E Gigabit LAN
Onboard Video	Yes
RAID Support	RAID 0, RAID 1, RAID 10
PCI Express x1	2
