5. When the APU is in place, push down the socket
lever to secure the APU. The lever clicks on the side
tab to indicate that it is locked.
6. Install a APU heatsink and fan following the
instructions that comes with the heatsink package.
You can also refer to section 1.6.2 Installing
heatsink and fan for instructions.

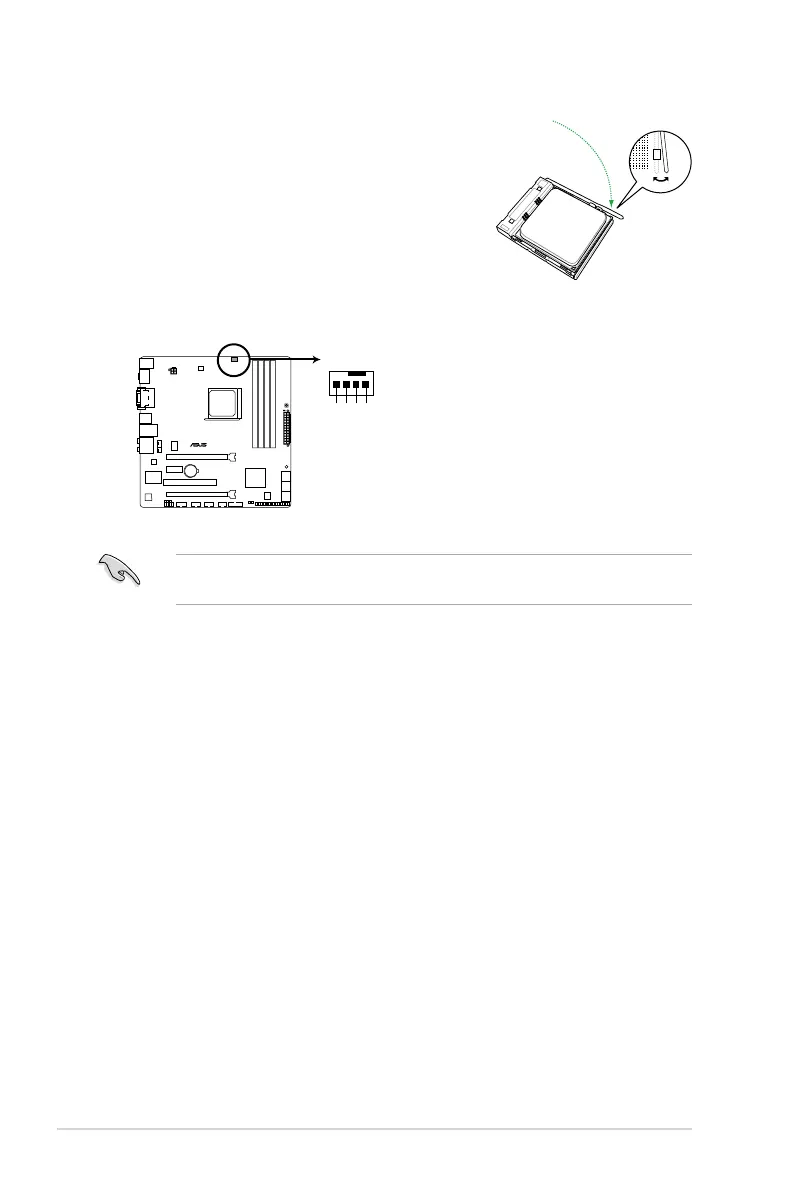

7. Connect the CPU fan cable to the CPU_FAN connector on the motherboard.
DO NOT forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.
F1A75-M
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
F1A75-M CPU fan connector
Chapter 1: Product introduction1-8

Asus F1A75-M Specifications

General

Form Factor	Micro ATX
Socket	FM1
Memory Type	DDR3
Max Memory	64GB
PCI Express x16	1
SATA Ports	6 x SATA 6Gb/s
Video Output	D-Sub, DVI, HDMI
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Chipset	AMD A75
Memory Slots	4
Memory Standard	DDR3 1866/1600/1333/1066 MHz
USB Ports	4 x USB 3.0
LAN	Realtek 8111E Gigabit LAN
Onboard Video	Yes
RAID Support	RAID 0, RAID 1, RAID 10
PCI Express x1	2
