Asus F2A55 User Manual

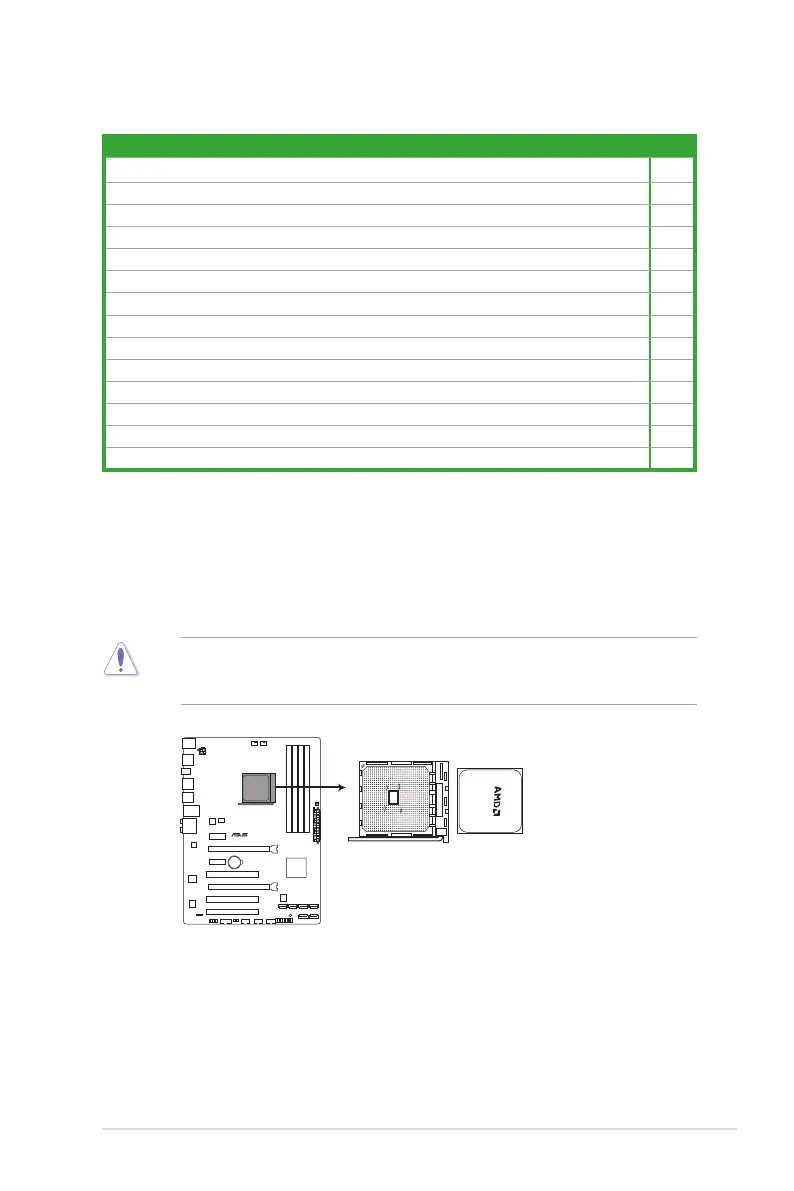

1.4 Accelerated Processing Unit (APU)
This motherboard comes with an FM2 socket designed for AMD
®
A-series accelerated
processors with AMD
®
Radeon™ HD 7000 series graphics.
Ensure that you use a APU designed for the FM2 socket. The APU ts in only one correct
orientation. DO NOT force the APU into the socket to prevent bending the pins and
damaging the APU!
1.3.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-26
2. CPU and chassis fan connectors (4-pin CPU_FAN, and 4-pin CHA_FAN1/2) 1-25
3. AMD FM2 socket 1-7
4. DDR3 DIMM slots 1-11
5. DRAM LED (DRAM_LED) 1-32
6. MemOK! switch 1-31
7. Standby power LED (SB_PWR) 1-32
8. SATA 3.0Gb/s connectors (7-pin SATA3G_1~6) 1-27
9. System panel connector (20-8 pin PANEL) 1-28
10. USB 2.0 connectors (10-1 pin USB78, USB910, USB1112) 1-30
11. Clear RTC RAM (3-pin CLRTC) 1-22
12. Serial port connector (10-1 pin COM) 1-27
13. Front panel audio connector (10-1 pin AAFP) 1-29
14. Digital audio connector (4-1 pin SPDIF_OUT) 1-29
F2A55
F2A55 CPU socket FM2
ASUS F2A55
1-7

Asus F2A55 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000, 2133, 2200, 2250, 2400 MHz
Processor socket	Socket FM2
Processor manufacturer	AMD
Compatible processor series	AMD Athlon
USB 2.0 connectors	3
Number of COM connectors	1
Number of SATA II connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek 8111F
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	AMD A55 FCH
Audio output channels	- channels
Motherboard form factor	ATX
Parallel processing technology support	-
BIOS type	UEFI
ACPI version	2.0a
Cables included	SATA

Weight and Dimensions

Depth	224 mm
Width	305 mm
