2 Knowing the Parts
Bottom Side

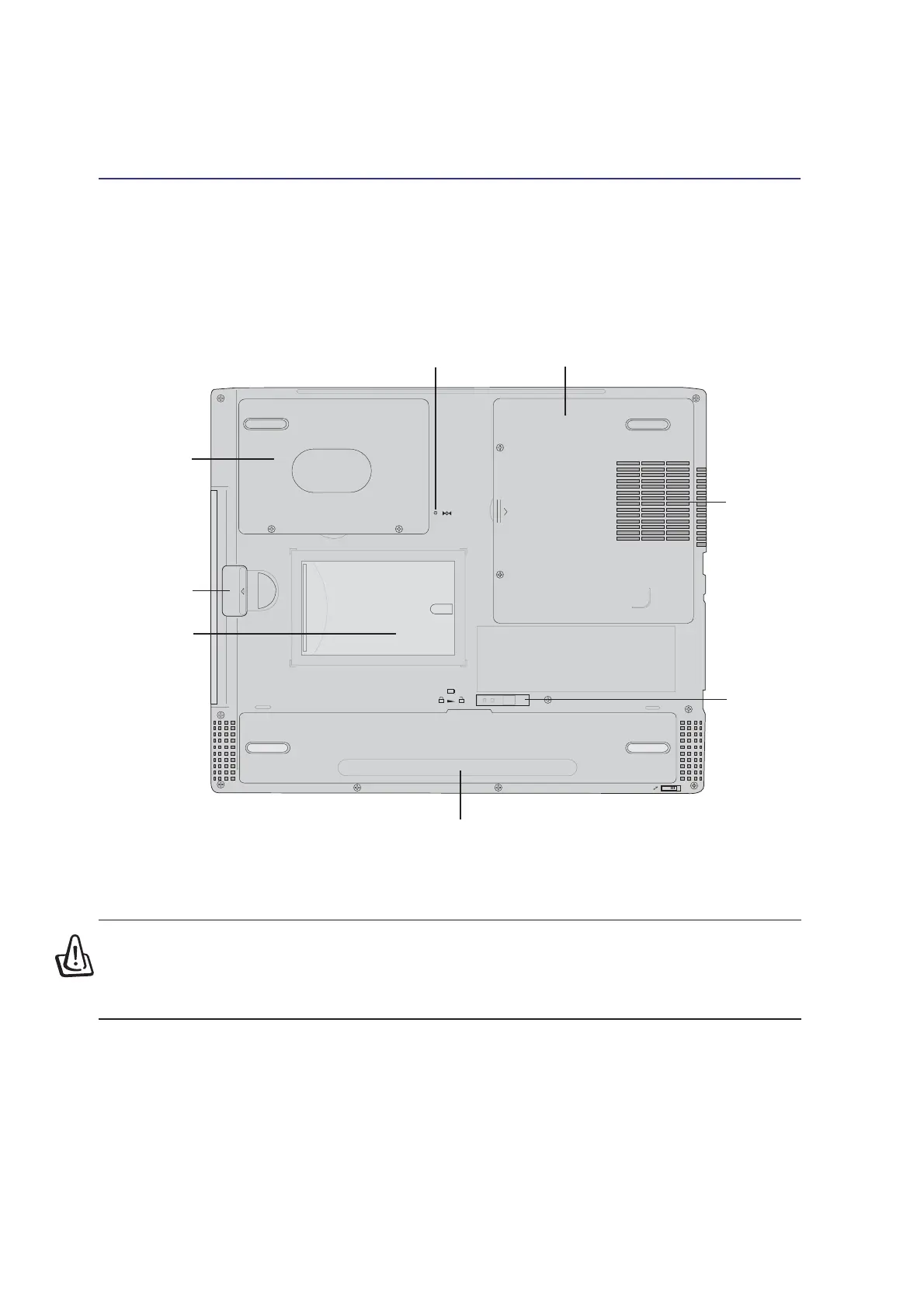

Refer to the diagram below to identify the components on the bottom side of the Notebook PC.
Name Card
Holder
Air Vent &
Cooling Fan
PUSH
L
L
CD
Reset Button
Battery Pack
Drive Module
Eject
Battery Eject
Hard Disk Drive
Compartment
CPU & Memory
Compartment
WARNING! The bottom of the Notebook PC can get very hot. Be careful when han-
dling the Notebook PC while it is in operation or recently been in operation. High
temperatures are normal during charging or operation. DO NOT PUT THE NOTEBOOK
PC ON THE LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.
