ASUS M2A-MX 1-33

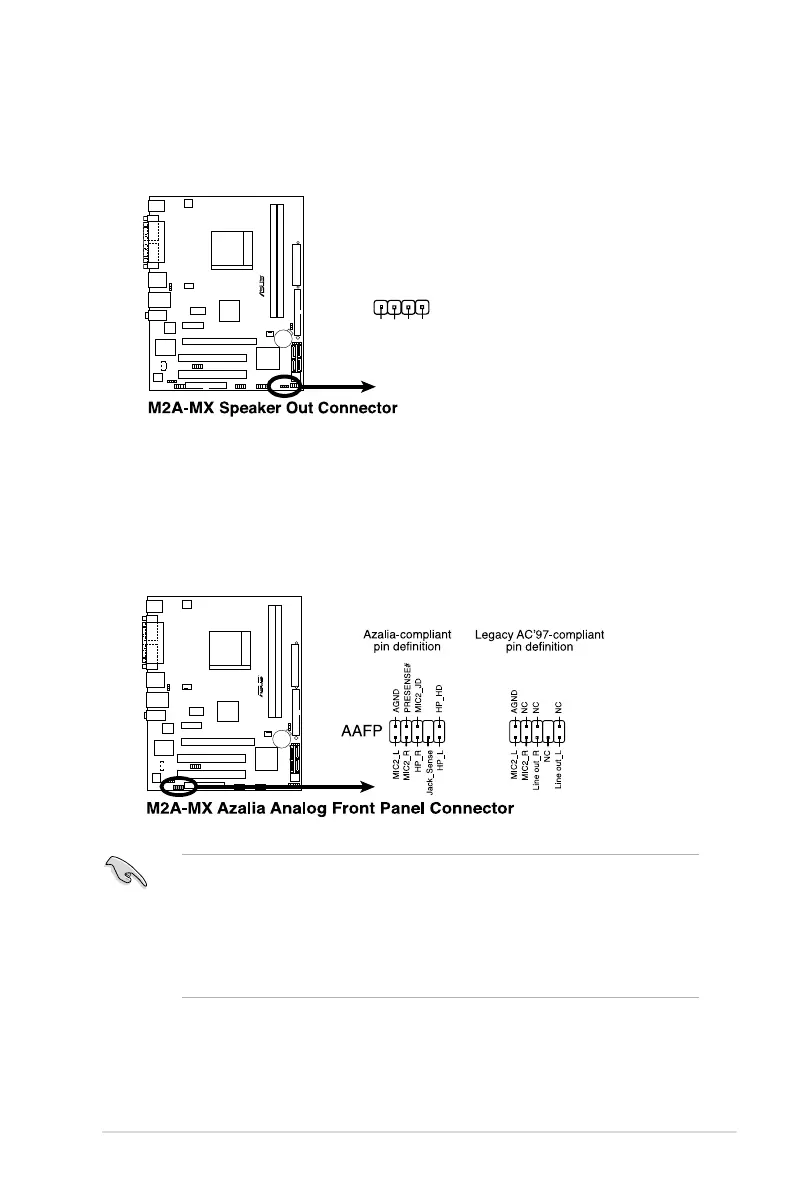

10. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that
supports either High Denition Audio or AC`97 audio standard. Connect one
end of the front panel audio I/O module cable to this connector.
• We recommend that you connect a high-denition front panel audio module
to this connector to avail of the motherboard high-denition audio capability.
• If you want to connect a high-denition front panel audio module to this
connector, make sure that the Front Panel Select item in the BIOS is set
to [HD Audio]; if you want to connect an AC`97 front panel audio module to
this connector, set the item to [AC97]. See page 2-25 for details.
9. Speaker connector (4-pin SPEAKER)
This connector is for the chassis-mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.
M2A-MX
R
SPEAKER
+5V
GND GND
Speaker Out
1
M2A-MX
R
