ASUS M2N-MX SE 1-23

Refer to the audio conguration table for the function of the audio ports

in 2, 4, or 6,-channel conguration.

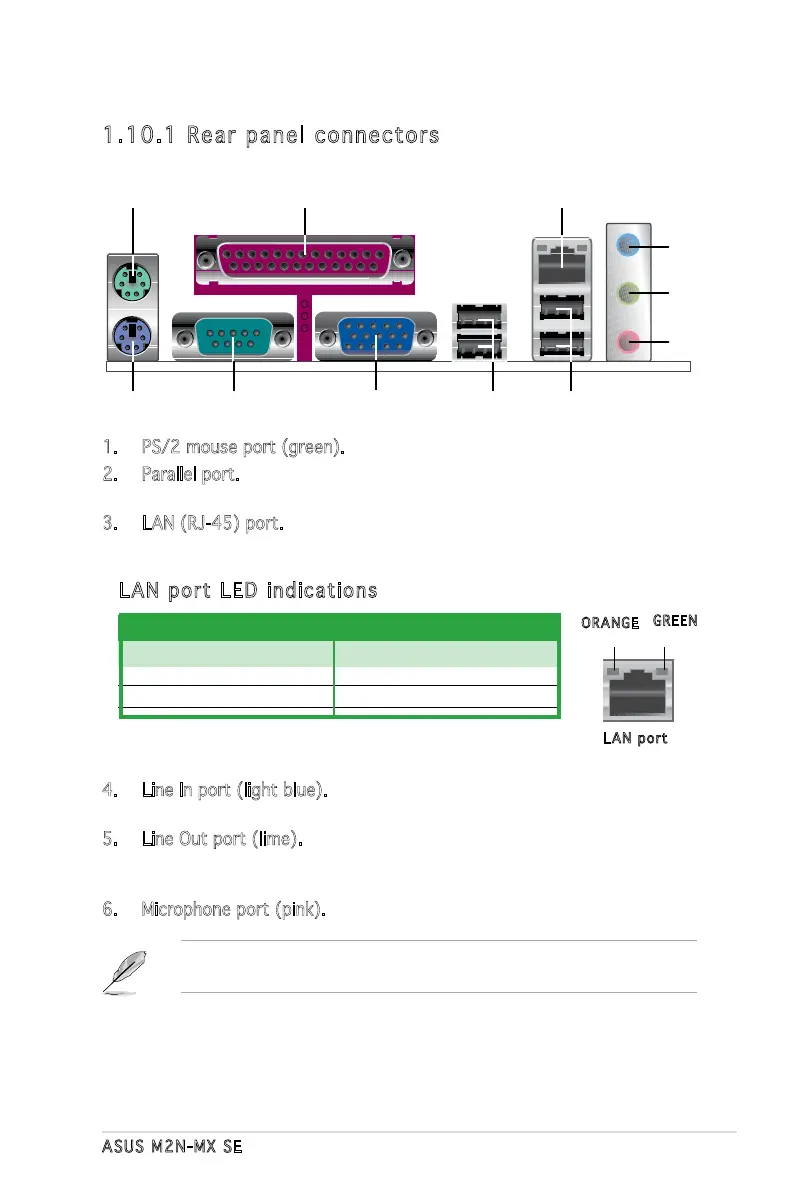

1.10 Connectors

1.10.1 Rear panel connectors

1. PS/2 mouse port (green). This port is for a PS/2 mouse.

2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or

other devices.

3. LAN (RJ-45) port. This port allows Network (LAN) through a network

hub.

LAN port LED indications

LAN port

GREEN

ORANGE

4. Line In port (light blue). This port connects a tape, CD, DVD player, or

other audio sources.

5. Line Out port (lime). This port connects a headphone or a speaker. In

4-channel/ 6-channel conguration, the function of this port becomes

Front Speaker Out.

6. Microphone port (pink). This port connects a microphone.

ORANGE LED GREEN LED

Status Description Status Description

OFF No link OFF No Link

Orange 100Mbps connection Geen 10 Mbps connection

2 3
