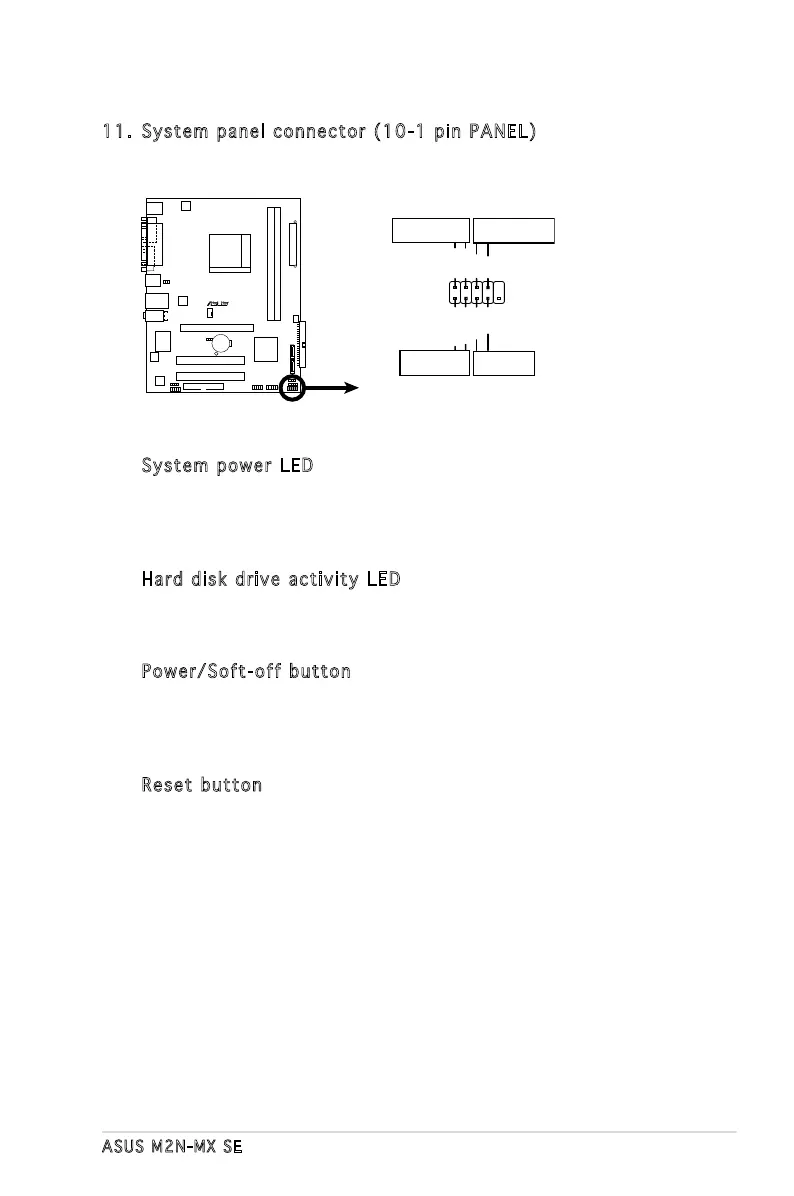

ASUS M2N-MX SE 1-31
11. System panel connector (10-1 pin PANEL)
This connector supports several chassis-mounted functions.
System power LED
This 2-pin connector is for the system power LED. Connect the
chassis power LED cable to this connector. The system power LED
lights up when you turn on the system power, and blinks when the
system is in sleep mode.
Hard disk drive activity LED
This 2-pin connector is for the HDD Activity LED. Connect the HDD
Activity LED cable to this connector. The IDE LED lights up or ashes
when data is read from or written to the HDD.
Power/Soft-off button
This connector is for the system power button. Pressing the power
button turns the system ON or puts the system in SLEEP or SOFT-OFF
mode depending on the BIOS settings. Pressing the power switch for
more than four seconds while the system is ON turns the system OFF.
Reset button
This 2-pin connector is for the chassis-mounted reset button for
system reboot without turning off the system power.
M2N-MX SE
R
M2N-MX SE
System Panel Connector
F_PANEL
PLED-
PWR
PLED+
Ground
GNDReset
IDELED+
IDELED-
HD LED RESET
PWR LED PWR BTN

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus M2N-MX SE and is the answer not in the manual?

Asus M2N-MX SE Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetNVIDIA GeForce 6100 / nForce 430
CPU SocketAM2
Memory TypeDDR2
Memory Slots2 x DIMM
Maximum Memory4 GB
Integrated GraphicsNVIDIA GeForce 6100
USB Ports8 x USB 2.0
Video OutputsVGA
Expansion Slots1 x PCIe x16, 2 x PCI
AudioRealtek ALC662 6-Channel HD Audio
LANRealtek RTL8201CL 10/100 Mbps
Storage InterfaceSATA 3Gb/s
