ASUS M2N-SLI 2-3

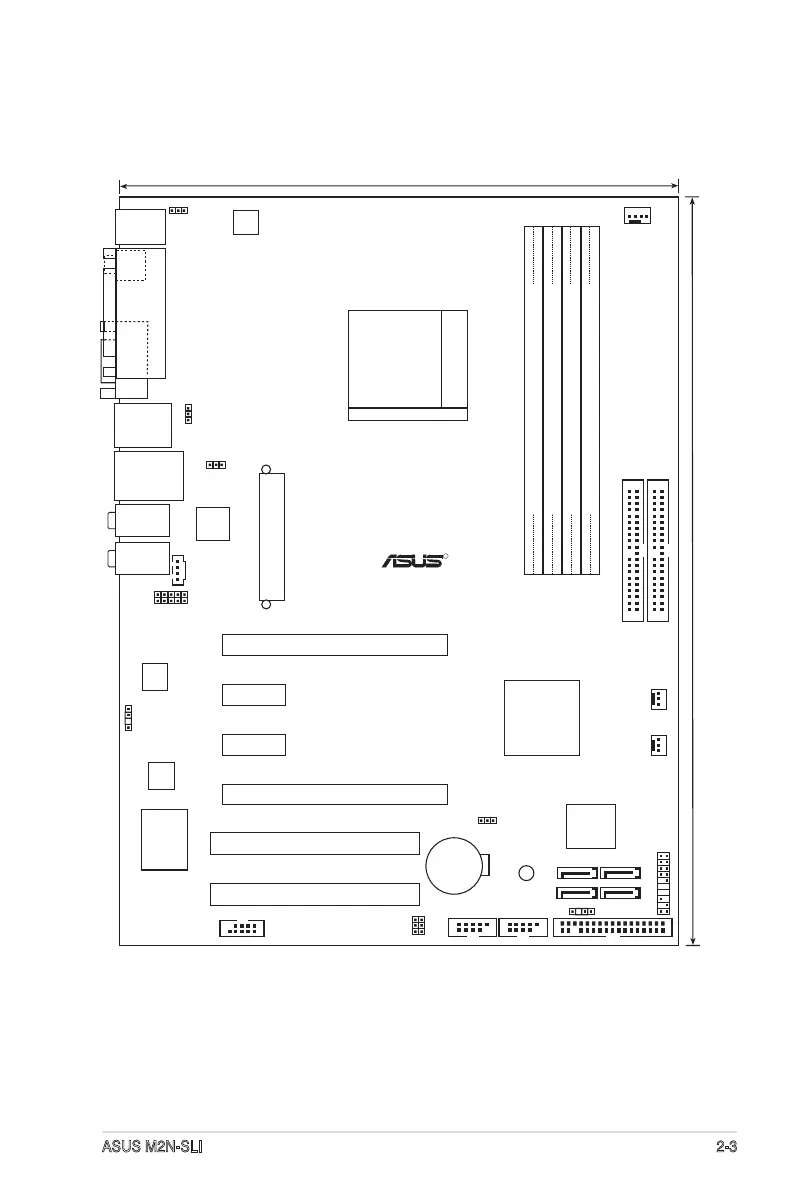

2.2.3 Motherboard layout
21.8cm(8.6in)
30.5cm(12.0in)
Socket AM2
CPU_FAN
PRI_IDE
SEC_IDE
DDR2 DIMM_A1 (64 bit,240-pin module)
DDR2 DIMM_B1 (64 bit,240-pin module)
DDR2 DIMM_A2 (64 bit,240-pin module)
DDR2 DIMM_B2 (64 bit,240-pin module)
PWR_FANCHA_FAN
PANEL
SATA1
SATA3
SATA2
SATA4
8Mb
BIOS
SB_PWR
CR2032 3V
Lithium Cell
CMOS Power
USB56 USB78
FLOPPY
CHASSIS
Nvidia
NF560 SLI
PCI1
PCI2
PCIEX16_2
PCIEX16_1
PCIEX1_1
PCIEX1_2
EATXPWR
USBPW78
USBPW56
Super I/O
SPDIF_OUT
FP_AUDIO
CD
USBPW34
R
M2N-SLI
AUDIO2
AUDIO1
LAN_USB12
1394_USB34
SPDIF_O1
PARALLE PORT
COM1
PS/2KBMS
T: Mouse
B: Keyboard
Attansic
F1
CM6501
USBPW12
KBPWR
ATX12V
CLRTC
IE1394_1
VIA
VT6308P
