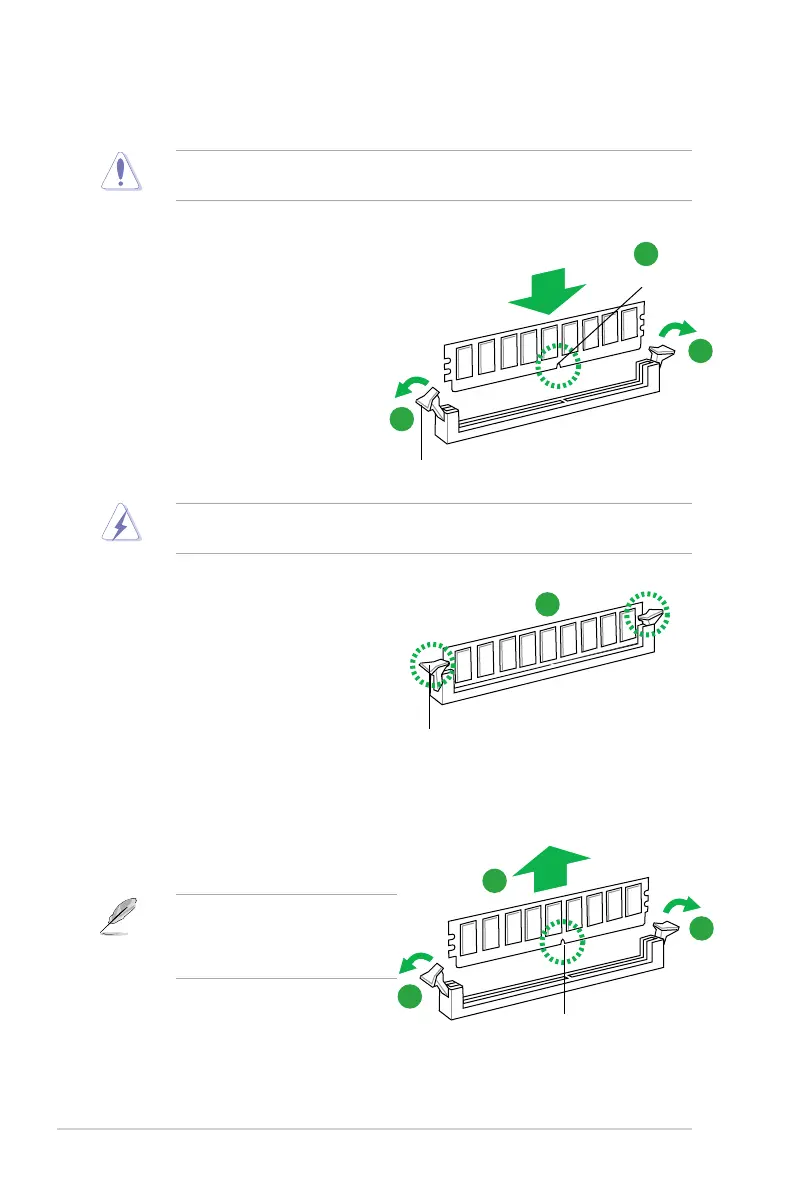

1.7.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
1. Press the retaining clips outward to
unlock a DDR2 DIMM socket.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
break on the socket.
Unlocked retaining clip
1
DDR2 DIMM notch
2
1
A DDR2 DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a
DIMM into a socket to avoid damaging the DIMM.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in place
and the DIMM is properly seated.
Locked Retaining Clip
3
1.7.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining clips
outward to unlock the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with your
ngers when pressing the retaining
clips. The DIMM might get damaged
when it ips out with extra force.
DDR2 DIMM notch
1
1
2
1-16 ASUS M2N68-AM

Asus M2N68 AM - Motherboard - Micro ATX Specifications

General

Form Factor	Micro ATX
Chipset	NVIDIA GeForce 7025 / nForce 630a
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	4 GB
Video Outputs	VGA
CPU Socket	AM2+
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
Storage Interfaces	4 x SATA 3Gb/s
USB Ports	10 (4 on back panel, 6 via headers)
Audio	Realtek ALC662 6-Channel High Definition Audio CODEC
LAN	10/100 Mbps Ethernet
