Asus M2N68 AM - Motherboard - Micro ATX User Manual

7. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
8. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
9. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
10. Serial port. This 9-pin COM1 port is for pointing devices or other serial devices.
11. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
1.10.2 Internal connectors

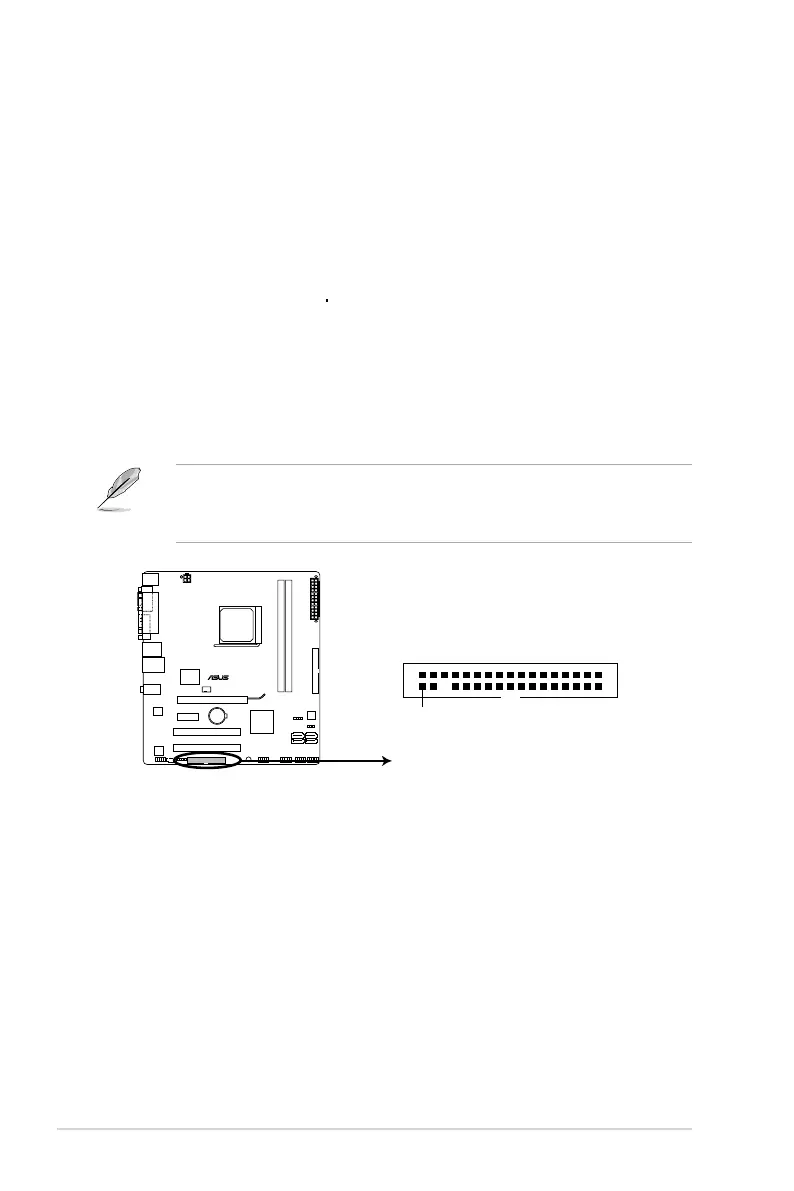

1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the oppy disk drive (FDD) signal cable. Insert one end of the
cable to this connector, then connect the other end to the signal connector at the back
of the oppy disk drive.
• Pin 5 on the connector is removed to prevent incorrect cable connection when using an
FDD cable with a covered Pin 5.
• The FDD cable is purchased separately.
M2N68-AM
M2N68-AM Floppy disk drive connector
FLOPPY
NOTE:Orient the red markings
on the floppy ribbon cable to PIN 1.
PIN1
1-20 ASUS M2N68-AM

Asus M2N68 AM - Motherboard - Micro ATX Specifications

General

Form Factor	Micro ATX
Chipset	NVIDIA GeForce 7025 / nForce 630a
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	4 GB
Video Outputs	VGA
CPU Socket	AM2+
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
Storage Interfaces	4 x SATA 3Gb/s
USB Ports	10 (4 on back panel, 6 via headers)
Audio	Realtek ALC662 6-Channel High Definition Audio CODEC
LAN	10/100 Mbps Ethernet
