1.3 Central Processing Unit (CPU)
This motherboard comes with a 940-pin AM2+ / AM2 socket designed for AMD
®
Phenom™FX
/ Phenom™ / Athlon™ / Sempron™ processors.
The AM2+ / AM2 socket has a different pinout from the 940-pin socket designed for the
AMD Opteron™ processor. Use a CPU that is designed for the AM2+ / AM2 socket.
1.4 System memory
1.4.1 Overview
This motherboard comes with two Double Data Rate 2 (DDR2) Dual Inline Memory Modules
(DIMM) sockets. A DDR2 DIMM has the same physical dimensions as a DDR DIMM but
has a 240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched

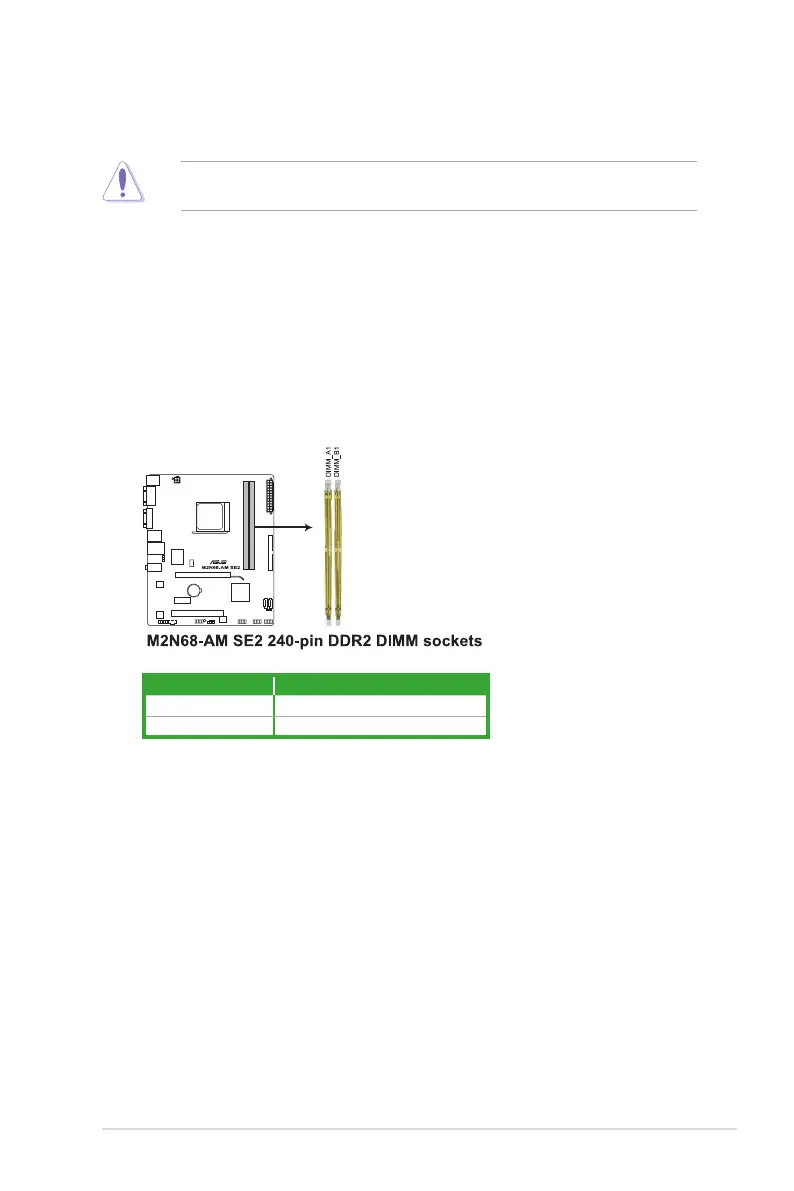

differently to prevent installation on a DDR DIMM socket.The gure illustrates the location of
the DDR2 DIMM sockets:
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1
Chapter 1: Product introduction1-3

Asus M2N68-AM SE2 - Motherboard - Micro ATX Specifications

General

Form Factor	Micro ATX
Chipset	NVIDIA GeForce 7025/nForce 630a
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
Storage Interface	4 x SATA 3Gb/s
Audio Chipset	Realtek ALC662
LAN	10/100/1000 Mbps
LAN Chipset	Realtek RTL8211CL
Video Outputs	VGA
CPU Socket	AM2+
CPU Type	Athlon 64, Athlon 64 FX, Athlon 64 X2, Sempron
Memory Slots	2
Memory Type	DDR2
IDE	1 x ATA133
Integrated Graphics	NVIDIA GeForce 7025
Audio	HD Audio (6-channel)
