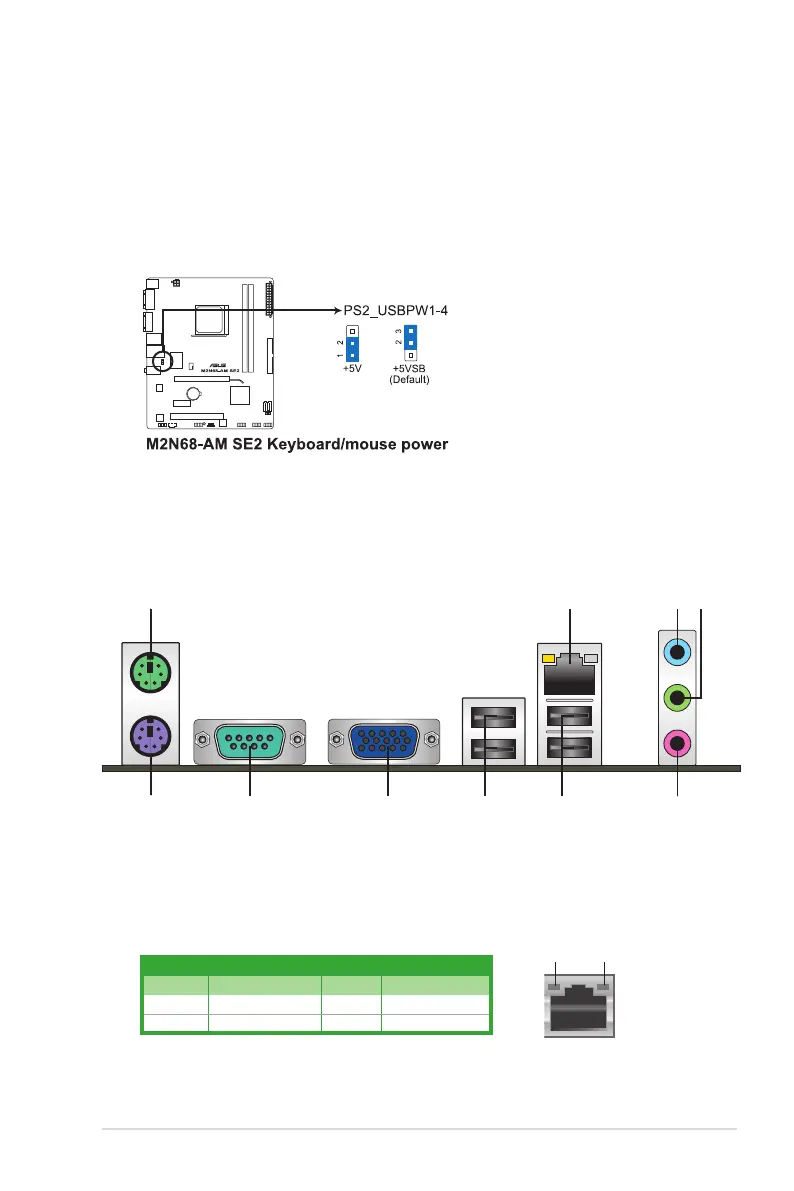

3. Keyboard/mouse power (3-pin PS2_USBPW1-4)
This jumper allows you to enable or disable the keyboard/mouse and USB port 1-4
wake-up feature. When you set this jumper to pins 2-3 (+5VSB), you can wake up the
computer by pressing a key on the keyboard (the default is the Space Bar), clicking
the mouse, or using a USB device. This feature requires an ATX power supply that can
supply at least 1A on the +5VSB lead, and a corresponding setting in the BIOS. The
PS2_USBPW1-4 jumper is for the rear USB ports.
1.7 Connectors
1.7.1 Rear panel ports
1. PS/2 Mouse port. This port is for a PS/2 mouse.
2. LAN (RJ-45) port. This port allows 10/100 PHY connection to a Local Area Network
(LAN) through a network hub.
LED (Orange) LED (Green)
Status Description Status Description
OFF No link OFF No link
ORANGE 100Mbps connection Green 10Mbps connection
3 42
57 69 8
1
10
LAN port LED indications
LAN port
LED
(Green)
LED
(Orange)
Chapter 1: Product introduction1-9

Asus M2N68-AM SE2 - Motherboard - Micro ATX Specifications

General

Form Factor	Micro ATX
Chipset	NVIDIA GeForce 7025/nForce 630a
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
Storage Interface	4 x SATA 3Gb/s
Audio Chipset	Realtek ALC662
LAN	10/100/1000 Mbps
LAN Chipset	Realtek RTL8211CL
Video Outputs	VGA
CPU Socket	AM2+
CPU Type	Athlon 64, Athlon 64 FX, Athlon 64 X2, Sempron
Memory Slots	2
Memory Type	DDR2
IDE	1 x ATA133
Integrated Graphics	NVIDIA GeForce 7025
Audio	HD Audio (6-channel)
