1.7.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
1.7.4 Removing a DIMM

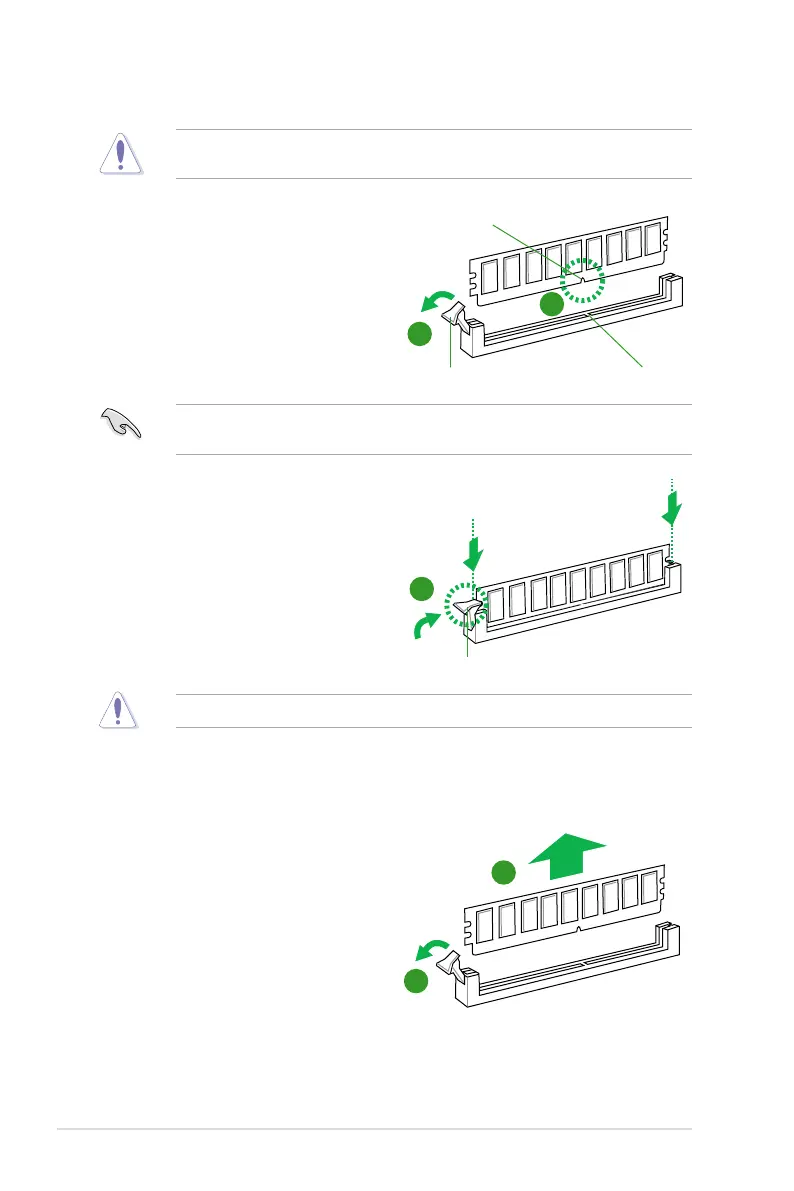

1. Press the retaining clip outward to
unlock the DIMM.
2. Remove the DIMM from the socket.
3. Hold the DIMM by both of its ends,
then insert the DIMM vertically into
the socket. Apply force to both ends
of the DIMM simultaneously until the
retaining clip snaps back into place,
and the DIMM cannot be pushed in
any further to ensure proper sitting of
the DIMM.
1. Unlock a DIMM socket by pressing
the retaining clip outward.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
Locked Retaining Clip
3
2
1
Always insert the DIMM into the socket VERTICALLY to prevent DIMM notch damage.
Unlocked retaining clip
DIMM notch
1
2
DIMM slot key
1-14 ASUS M4N75TD
