1.12 Connectors

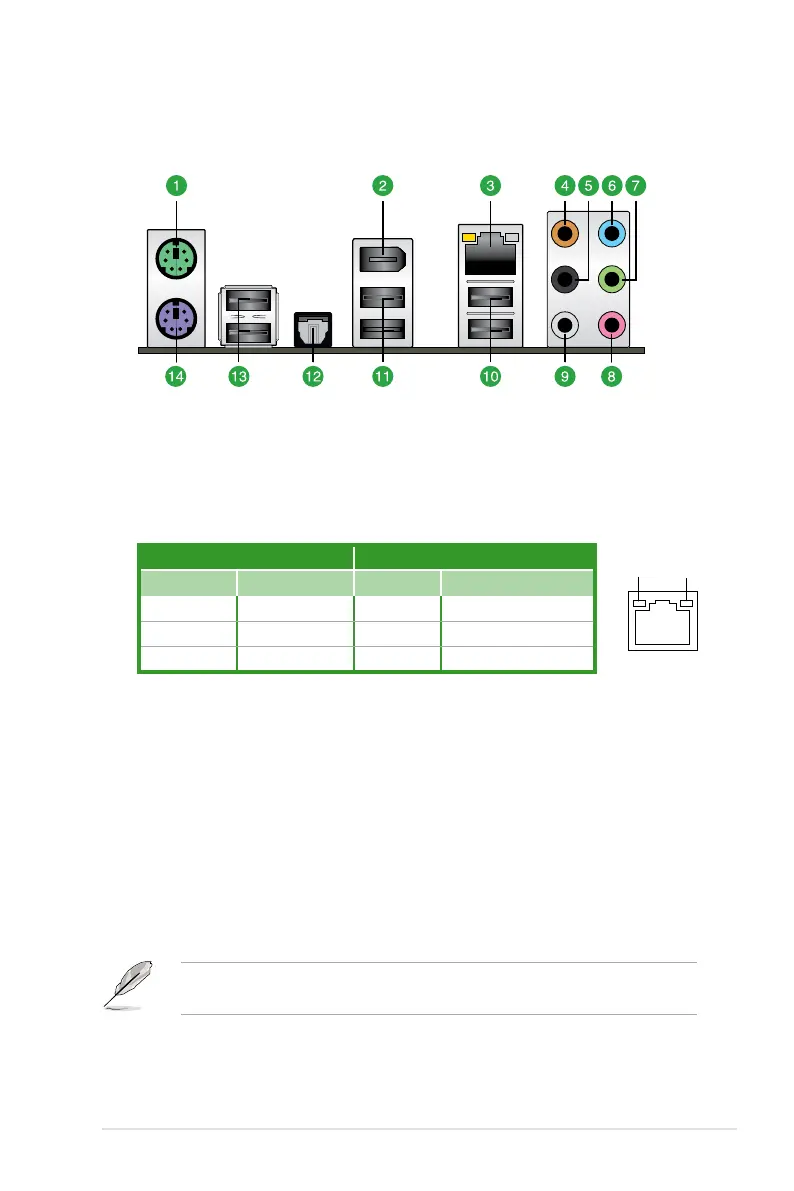

1.12.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. IEEE 1394a port.
This 6-pin IEEE 1394a port provides high-speed connectivity for
audio/video devices, storage peripherals, PCs, or portable devices.
3. LAN (RJ-45) port.
This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
4. Center/Subwoofer port (orange). This port connects the center/subwoofer speakers.
5. Rear Speaker Out port (black).
This port connects the rear speakers in a 4-channel,
6-channel, or 8-channel audio conguration.
6. Line In port (light blue).
This port connects the tape, CD, DVD player, or other audio
sources.
7. Line Out port (lime).
This port connects a headphone or a speaker. In 4-channel,
6-channel, and 8-channel conguration, the function of this port becomes Front
Speaker Out.
8. Microphone port (pink).
This port connects a microphone.
9. Side Speaker Out port (gray).
This port connects the side speakers in an 8-channel
audio conguration.
Refer to the audio conguration table on next page for the function of the audio
ports in 2, 4, 6, or 8-channel conguration.
SPEED
LED
ACT/LINK
LED
LAN port
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked GREEN 100 Mbps connection
BLINKING Data activity ORANGE 1 Gbps connection
Chapter 1: Product introduction 1-21
