Asus M4N78 SE User Manual

1-10 Chapter 1: Product introduction
1.7 System memory
1.7.1 Overview
The motherboard comes with two Double Data Rate 2 (DDR2) Dual Inline Memory Modules
(DIMM) sockets. A DDR2 module has the same physical dimensions as a DDR DIMM but
has a 240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched

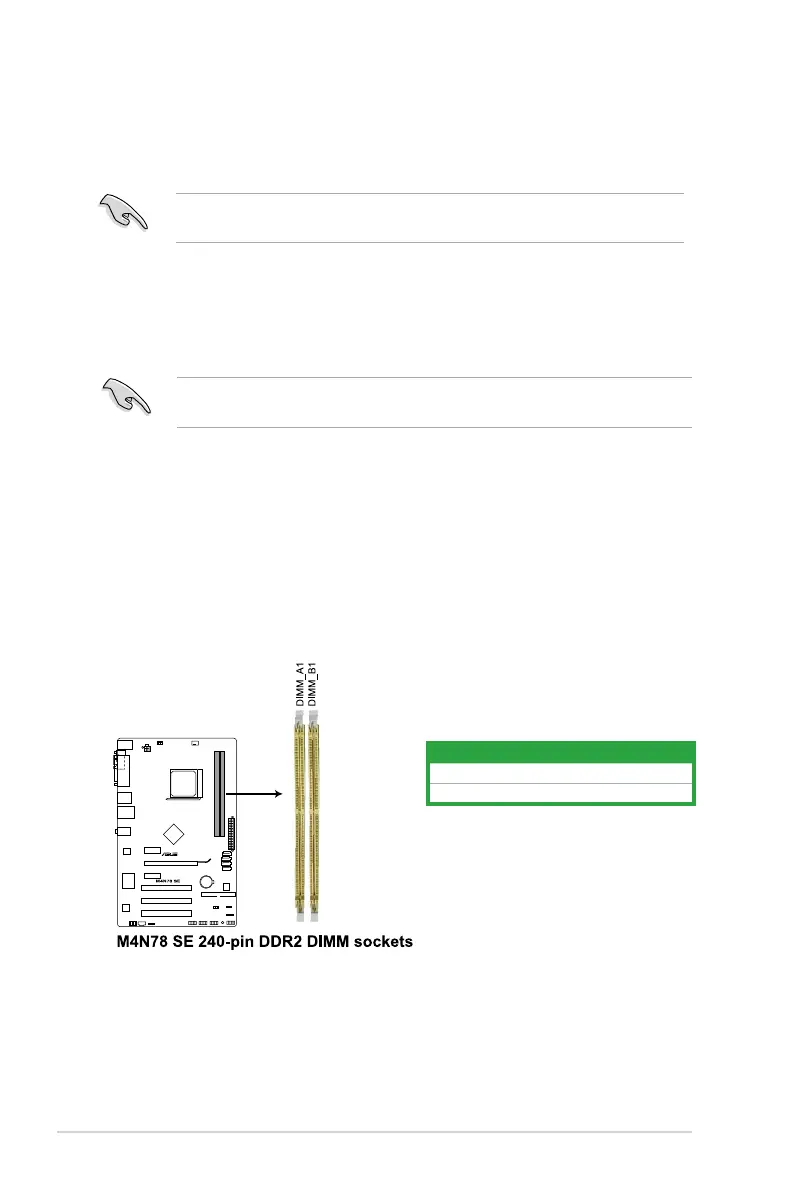

differently to prevent installation on a DDR DIMM socket. The gure illustrates the location of
the DDR2 DIMM sockets:
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1
3. Align the other end of the retention bracket to the retention module base. A clicking
sound denotes that the retention bracket is in place.
Ensure that the fan and heatsink assembly perfectly ts the retention mechanism module
base, otherwise you cannot snap the retention bracket in place.
4. Push down the retention bracket lock on the retention mechanism to secure the
heatsink and fan to the module base.
5. When the fan and heatsink assembly is in place, connect the CPU fan cable to the
connector on the motherboard labeled CPU_FAN.
Do not forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.

Asus M4N78 SE Specifications

General

CPU Socket	AM2+
Memory Type	DDR2
Memory Slots	4 x DIMM
Max Memory	16 GB
Form Factor	ATX
S/PDIF Out	1 x Optical
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 3 x PCI
USB Ports	12 x USB 2.0
LAN	Realtek RTL8211CL Gigabit LAN controller
Video Outputs	VGA
Dimensions	30.5 cm x 24.4 cm
Power Pin	24-pin ATX
Storage Interfaces	1 x UltraDMA 133/100/66 6 x SATA 3 Gb/s
PS/2	1 x PS/2 keyboard/mouse combo port
