Asus M4N78 SE User Manual

1-16 Chapter 1: Product introduction
DDR2 DIMM notch
1
1
2
Unlocked retaining clip
1
DDR2 DIMM notch
2
1

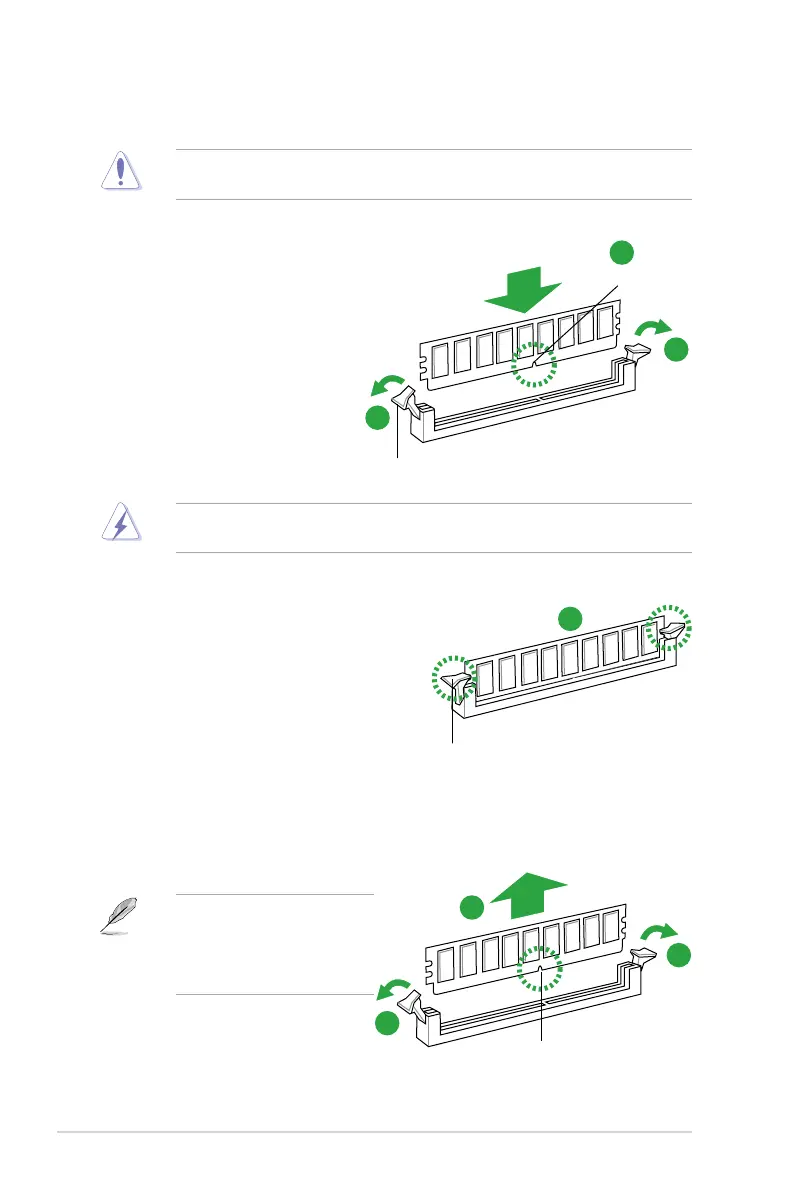

1.7.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
1. Press the retaining clips outward to
unlock a DDR2 DIMM socket.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
break on the socket.
A DDR2 DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a
DIMM into a socket to avoid damaging the DIMM.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in place
and the DIMM is properly seated.
1.7.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining clips
outward to unlock the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with
your ngers when pressing the
retaining clips. The DIMM might
get damaged when it ips out with
extra force.
Locked Retaining Clip
3

Asus M4N78 SE Specifications

General

CPU Socket	AM2+
Memory Type	DDR2
Memory Slots	4 x DIMM
Max Memory	16 GB
Form Factor	ATX
S/PDIF Out	1 x Optical
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 3 x PCI
USB Ports	12 x USB 2.0
LAN	Realtek RTL8211CL Gigabit LAN controller
Video Outputs	VGA
Dimensions	30.5 cm x 24.4 cm
Power Pin	24-pin ATX
Storage Interfaces	1 x UltraDMA 133/100/66 6 x SATA 3 Gb/s
PS/2	1 x PS/2 keyboard/mouse combo port
