3. Align the other end of the retention bracket to the retention module base. A clicking
sound denotes that the retention bracket is in place.
Ensure that the fan and heatsink assembly perfectly ts the retention mechanism module
base, otherwise you cannot snap the retention bracket in place.
4. Push down the retention bracket lock on the retention mechanism to secure the
heatsink and fan to the module base.
5. When the fan and heatsink assembly is in place, connect the CPU fan cable to the
connector on the motherboard labeled CPU_FAN.
DO NOT forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.
1.7 System memory
1.7.1 Overview
This motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets. A DDR3 module has the same physical dimensions as a DDR2 DIMM but
is notched differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are

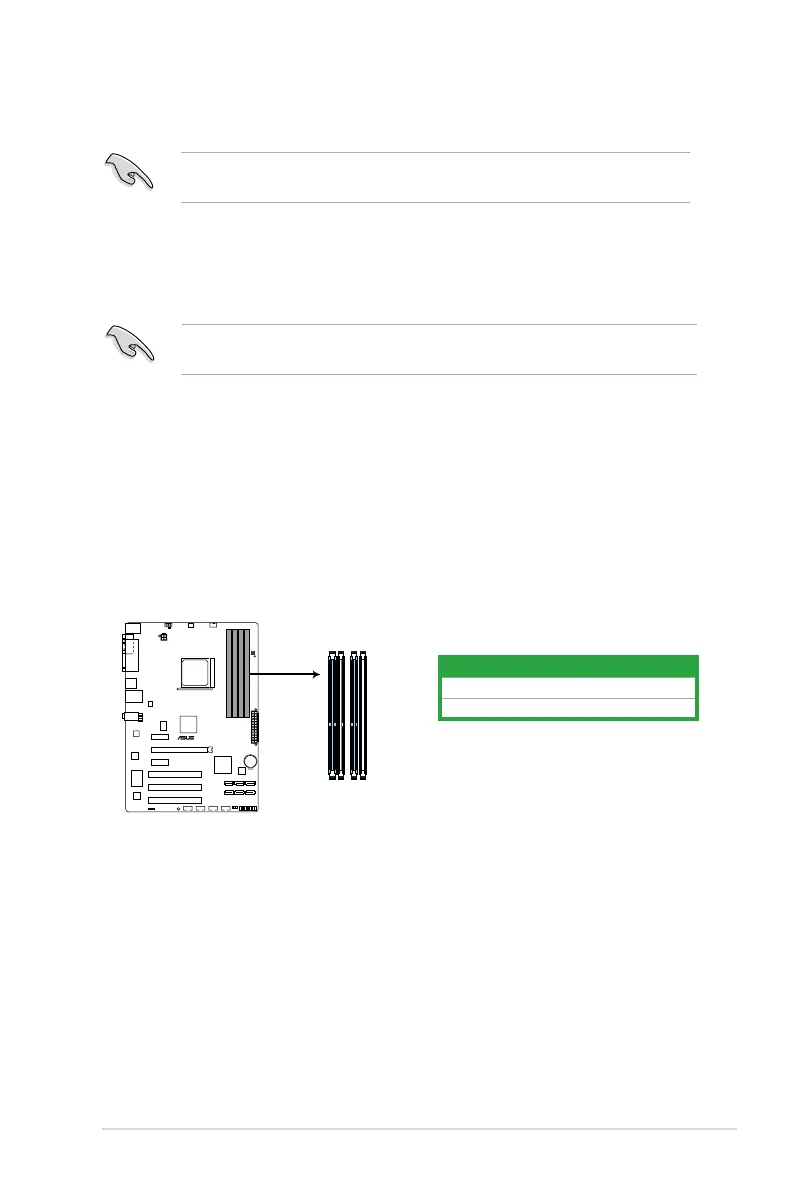

developed for better performance with less power consumption. The gure illustrates the
location of the DDR3 DIMM sockets:
Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
M5A87 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2
M5A87
ASUS M5A87 1-11

Asus M5A87 Specifications

General

ECC	Yes
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 2000 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8
Number of SATA II connectors	6
Number of Parallel ATA connectors	0
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	AMD 870 (RX881)
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10, JBOD
Supported storage drive interfaces	SATA III
On-board graphics card	-
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Controller interface type	AMD SB850
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	213 mm
Width	305 mm
