3-22 Chapter 3: BIOS setup
Chapter 3

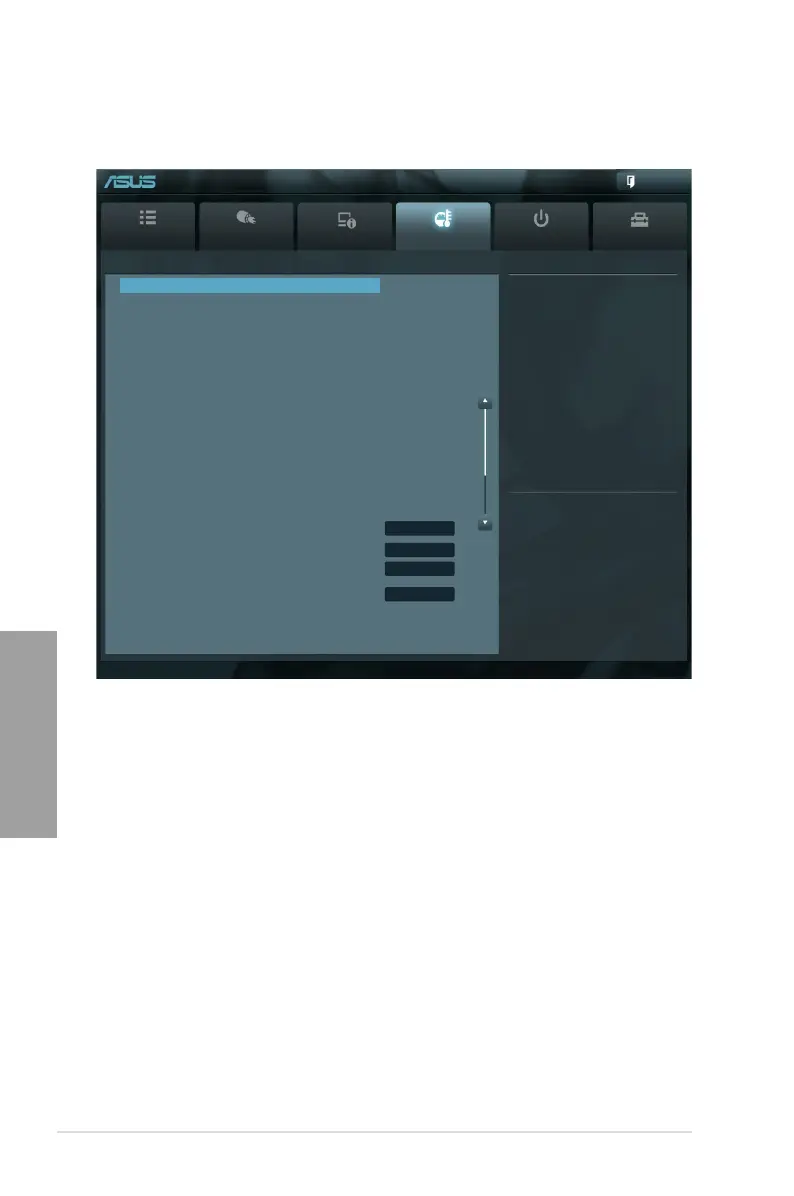

3.6 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Main
Ai Tweaker
Advanced Monitor Boot Tool
Exit
Version 2.00.1201. Copyright (C) 2010 American Megatrends, Inc.
→←
: Select Screen
↑↓
: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
UEFI BIOS Utility - Advanced Mode
CPU Temperature / MB Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the CPU and motherboard
temperatures.
VCORE Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage, VDDA2.5V Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators.
CPU Fan Speed [xxxx RPM] / [N/A]
Chassis Fan 1/2/3 Speed [xxxx RPM] / [N/A]
Power Fan Speed [xxxx RPM] / [N/A]
The onboard hardware monitor automatically detects and displays the CPU, chassis,
and power fan speed in rotations per minute (RPM). If the fan is not connected to the
motherboard, the field shows N/A.
CPU Temperature +69ºC / +181ºF+69ºC / +181ºF
MB Temperature +35ºC / +120ºF
VCORE Voltage +1.320 V
3.3V Voltage +3.216 V
5V Voltage +4.950 V
12V Voltage +11.788 V
VDDA2.5V Voltage +2.532V
CPU Fan Speed 3325 RPM
Chassis Fan Speed N/A
Chassis Fan 2 Speed N/A
Power Fan Speed N/A
CPU Q-Fan Control Enabled
CPU Fan Profile Standard
CPU Fan Speed Low Limit 600 RPM
Chassis Q-Fan Control Disabled
