4.3.15 ROG Connect
ROG Connect allows you to monitor and adjust the local PC through your remote PC.
Setting up USB connection between your local and remote PC
• Install ROG Connect on the remote PC from the provided Support DVD before using
ROG Connect.
• ROG Connect must work with ROG Connect Plus to avail full function. Ensure that
you install ROG Connect Plus on your local PC from the provided Support DVD before
using ROG Connect.
1. Connect the provided ROG Connect
cable to the local PC and the remote PC.
2. Press the ROG Connect Button and it
will light up into a stable glow.

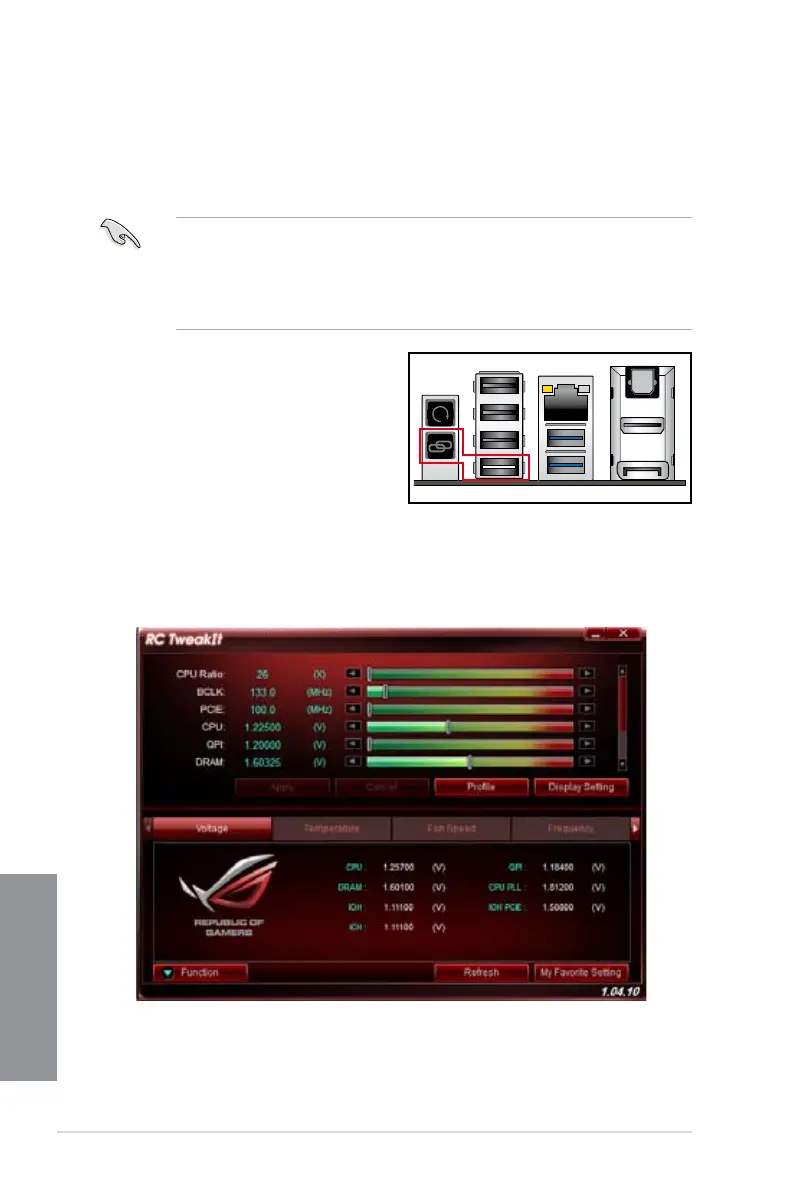

3. Double-click the RC TweakIt shortcut on
the remote PC to activate the function
Using RC TweakIt
To use the RC TweakIt
1. Use the sliders and buttons to monitor or adjust your local PC.

Asus Maximus V Extreme Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133, 2200, 2400, 2600, 2666, 2800 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of SATA connectors	10
Number of SATA II connectors	3
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
I/O ports	1 x Thunderbolt 1 x ROG Connect On/ Off
Manageability features	WfM2.0, DMI2.0, WOL by PME, PXE
HDMI version	1.4a
Headphone outputs	5
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC898
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel Z77
PC health monitoring	CPU, FAN, LED, Temperature
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
OpenGL version	4.2
DirectX version	11
Maximum resolution	2560 x 1600 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, LucidLogix Virtu, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16, 2x8, 4x8
Cables included	SATA
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Networking features	Gigabit LAN
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	272 mm
Width	305 mm
