4. Align and rmly insert the 3-way SLI
bridge connector to the goldngers on
each graphics card. Ensure that the
connector is rmly in place.
5. Connect three independent auxiliary
power sources from the power supply
to the three graphics cards.
6. Connect a VGA or a DVI cable to the
graphics card.

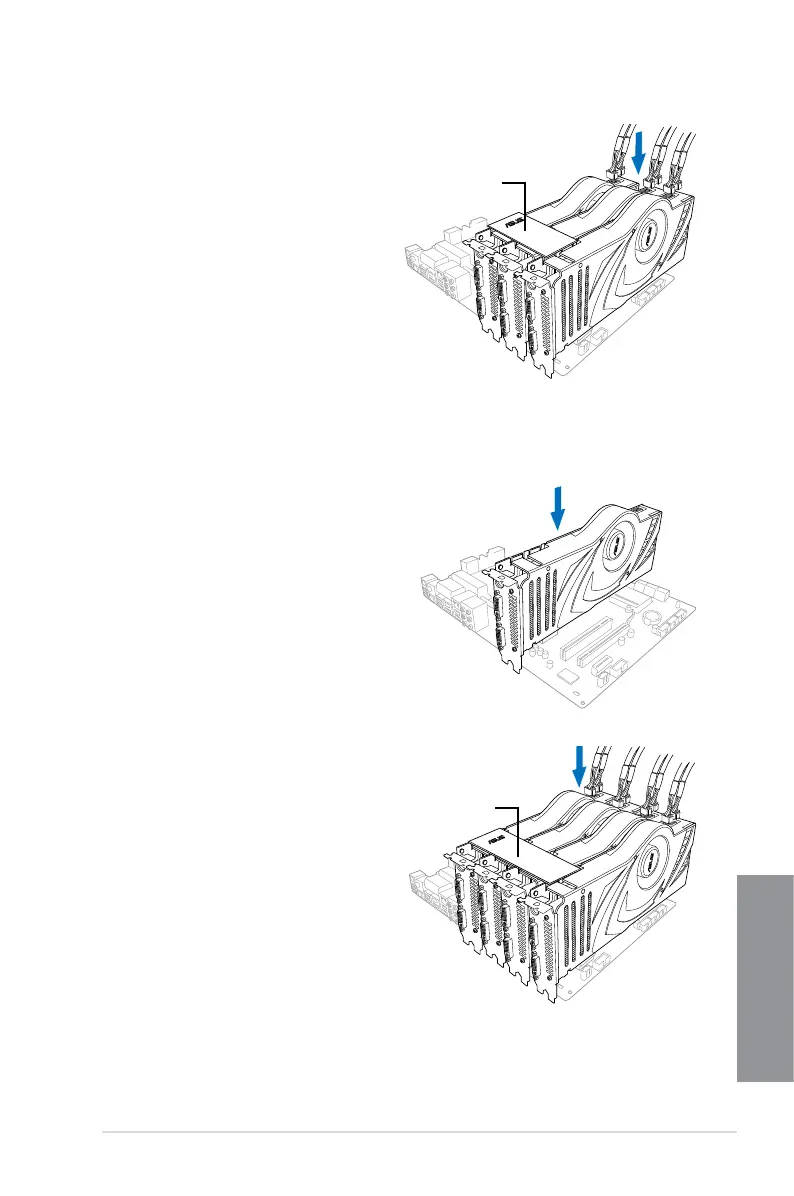

3-WAY SLI bridge
6.2.4 Installing four SLI-ready graphics cards
Refer to the documentation that came with your graphics card package to install the device
drivers.
1. Prepare four SLI-ready graphic a cards.
2. Insert the three graphics cards into the
PCIEX16 slots. If your motherboard
has more than two PCIEX16 slots,
refer to Chapter 1 in this user manual
for locations of the PCIEX16 slots
recommended for multi-graphics card
installation.
3. Ensure that the cards are properly
seated on the slots.
4. Align and rmly insert the 4-WAY SLI
bridge connector to the goldngers on
each graphics card. Ensure that the
connector is rmly in place.
5. Connect four independent auxiliary
power sources from the power supply
to the four graphic cards.
4-WAY SLI bridge
