Asus Maximus V Extreme User Manual

2-26
Chapter 2: Basic Installation
Chapter 2

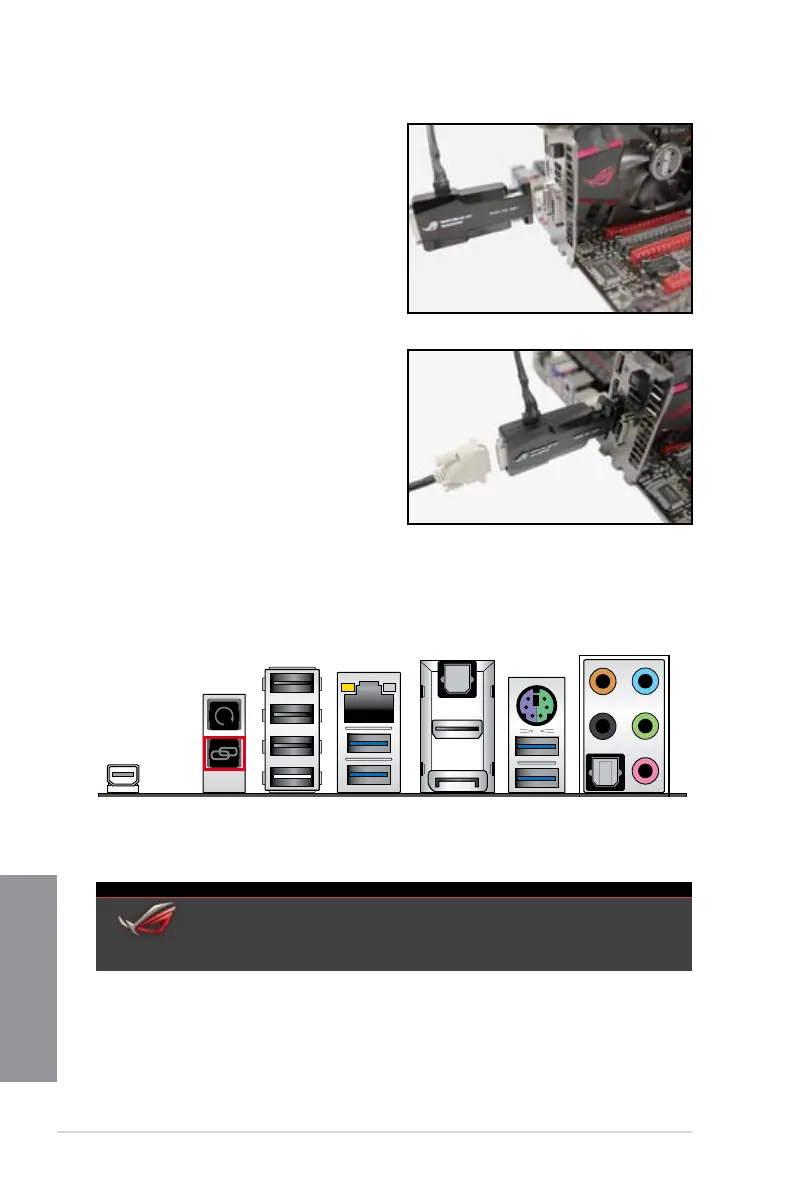

4. Plug in the DVI male connector of
the OC Key device to the DVI female
connector on the display card.
5. Plug in the DVI male connector from the
monitor to the OC Key device.
To use the OC Key device
1. With the system powered ON, press and hold the ROG Connect button on the rear
panel for three seconds to activate the OC Key function.
2. The OSD Poster screen appears, including the OSD Monitor and OSD TweakIt
menus.
OSD MONITOR
CPU VCORE POWER CPU RATIO X BCLK CPU FREQUENCY
1.26250(V) 15.23000 (A) 44.0 x 100.0 4400.0 (MHz)
SUBZERO SENSE VGA1 CORE VGA HOTWIRE 2 CPU TEMP
24.5/-108.0 (C) 0.93750 (V) 0.92435 (V) 34(C)
REPUBLIC OF
GAMERS

Asus Maximus V Extreme Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133, 2200, 2400, 2600, 2666, 2800 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of SATA connectors	10
Number of SATA II connectors	3
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
I/O ports	1 x Thunderbolt 1 x ROG Connect On/ Off
Manageability features	WfM2.0, DMI2.0, WOL by PME, PXE
HDMI version	1.4a
Headphone outputs	5
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC898
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel Z77
PC health monitoring	CPU, FAN, LED, Temperature
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
OpenGL version	4.2
DirectX version	11
Maximum resolution	2560 x 1600 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, LucidLogix Virtu, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16, 2x8, 4x8
Cables included	SATA
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Networking features	Gigabit LAN
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	272 mm
Width	305 mm
