2-2 Chapter 2: Setup
2.1 Connecting the cables

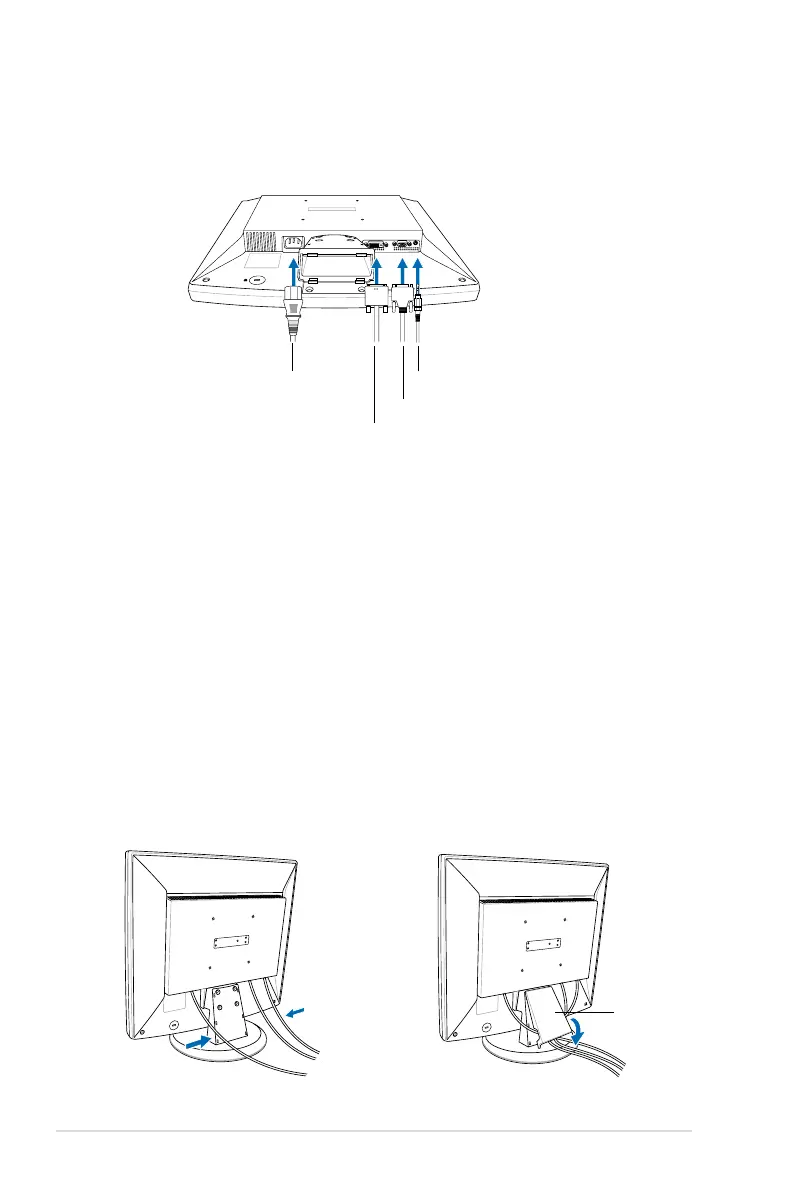

1. Connect the cables as shown:
• To connect the audio cable: connect one end of the audio cable to
the monitor’s Audio-in port, and then connect the other end to the
computer multi-media (or audio) card’s audio output.
• To connect the power cord: connect one end of the power cord
securely to the monitor’s AC input port, the other end to a power
outlet.
• To connect the VGA/DVI cable:
a. Plug the VGA/DVI connector to the LCD monitor’s VGA/DVI port.
b. Connect the other end of the VGA/DVI cable to your computer’s
VGA/DVI port.
c. Tighten the two screws to secure the VGA/DVI connector.
2. Gather all the cables, then hold them with the cable holder. Align the
cable holder to the two slots near the base and close it carefully. A
click indicates that the cable holder has been closed securely.
Power cord
DVI cable
VGA cable
Audio cable
Cable
holder
