Asus Motherboard P5GC-MX User Manual

1-6 Chapter 1: Product introduction
P5GC-MX
R
1.5 Motherboard overview
Before you install the motherboard, study the conguration of your chassis
to ensure that the motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so can cause you physical injury and damage
motherboard components.
Do not overtighten the screws! Doing so can damage the motherboard.
1.5.1 Placement direction
When installing the motherboard, make sure that you place it into the
chassis in the correct orientation. The edge with external ports goes to the
rear part of the chassis as indicated in the image below.
1.5.2 Screw holes

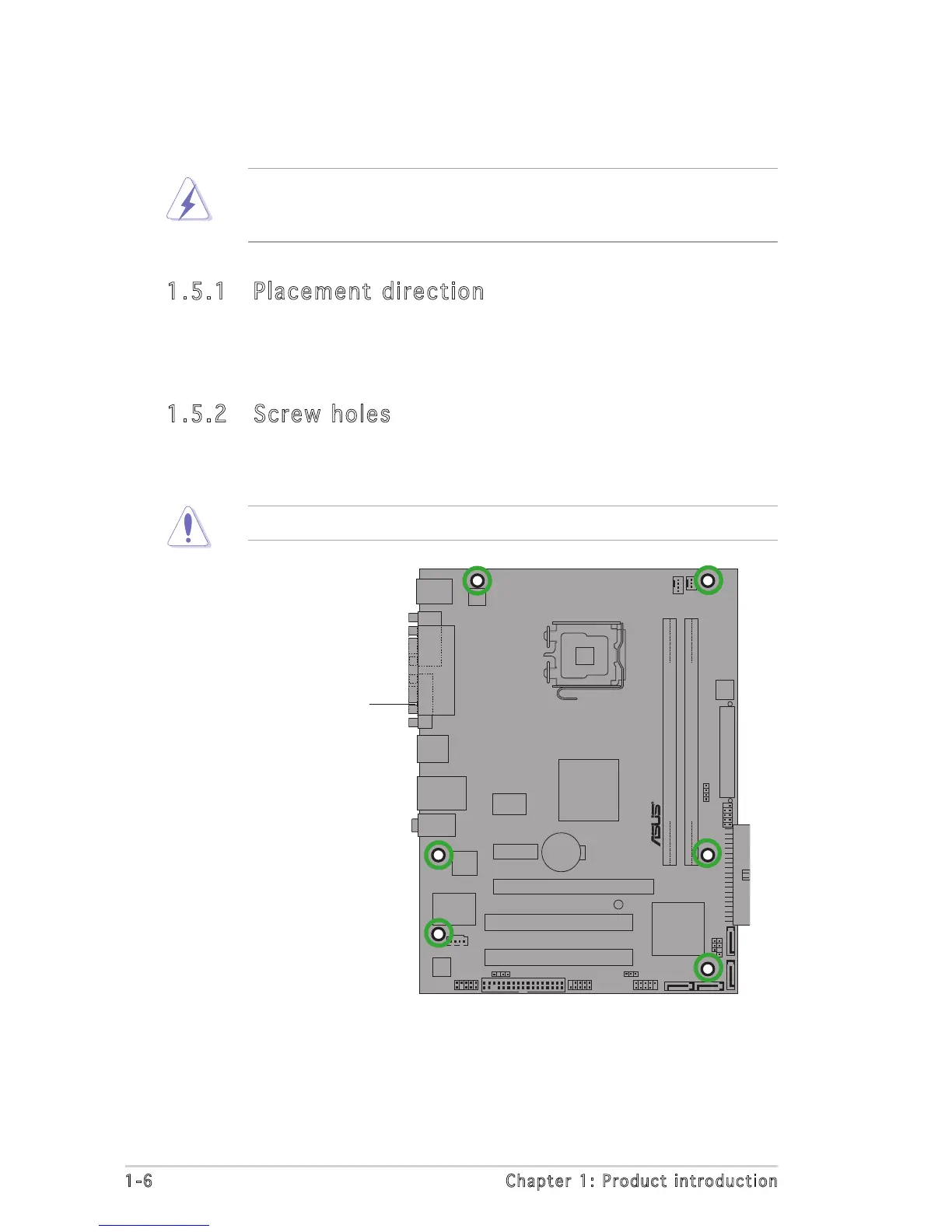

Place six (6) screws into the holes indicated by circles to secure the
motherboard to the chassis.
Place this side towards
the rear of the chassis

Asus Motherboard P5GC-MX Specifications

General

Form Factor	Micro ATX
Chipset	Intel 945GC
CPU Socket	LGA 775
Memory Slots	2 x DIMM
Maximum Memory	2 GB
Memory Type	DDR2
Integrated Graphics	Intel GMA 950
Video Outputs	1 x VGA
Expansion Slots	1 x PCIe x16, 2 x PCI
Audio	Realtek ALC883 6-Channel High Definition Audio
USB Ports	8 x USB 2.0
Storage Interface	4 x SATA 3 Gb/s, 1 x UltraDMA 100/66
