2.5.3 Installing a DIMM
Make sure to unplug the power supply before adding or removing
DIMMs or other system components. Failure to do so may cause
severe damage to both the motherboard and the components.
Figure 2-15 Installed DIMM
Follow these steps to install a DIMM.
1. Unlock a DIMM socket by pressing the retaining clips outward.
2. Align a DIMM on the socket such that the notches on the DIMM match
the breaks on the socket.
3. Firmly insert the DIMM into the socket until the retaining clips snap
back in place and the DIMM is properly seated.

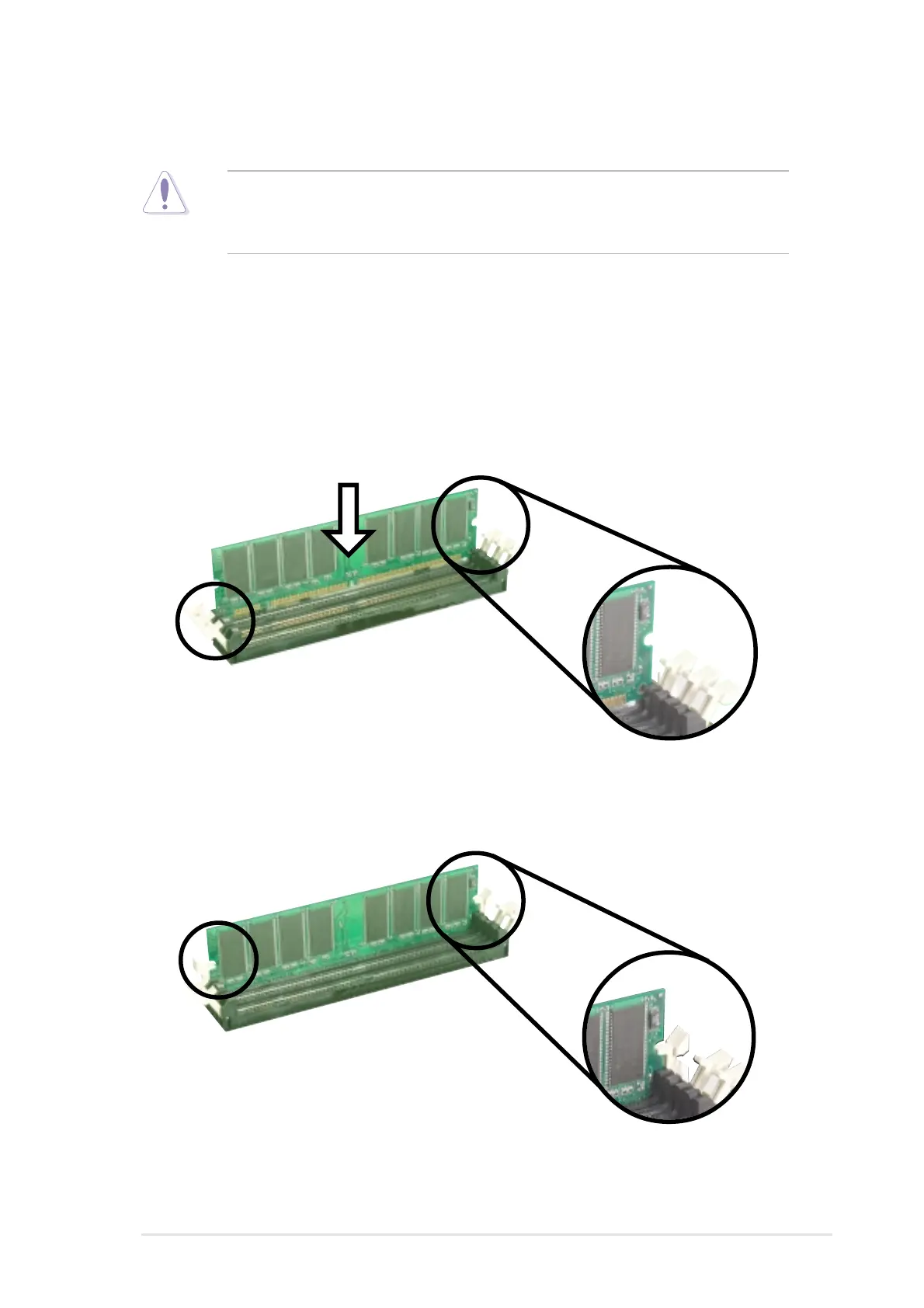

Figure 2-14 Installing a DIMM
Unlocked Retaining Clip
Locked Retaining Clip
