LAN port LED indications
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1.10 Connectors

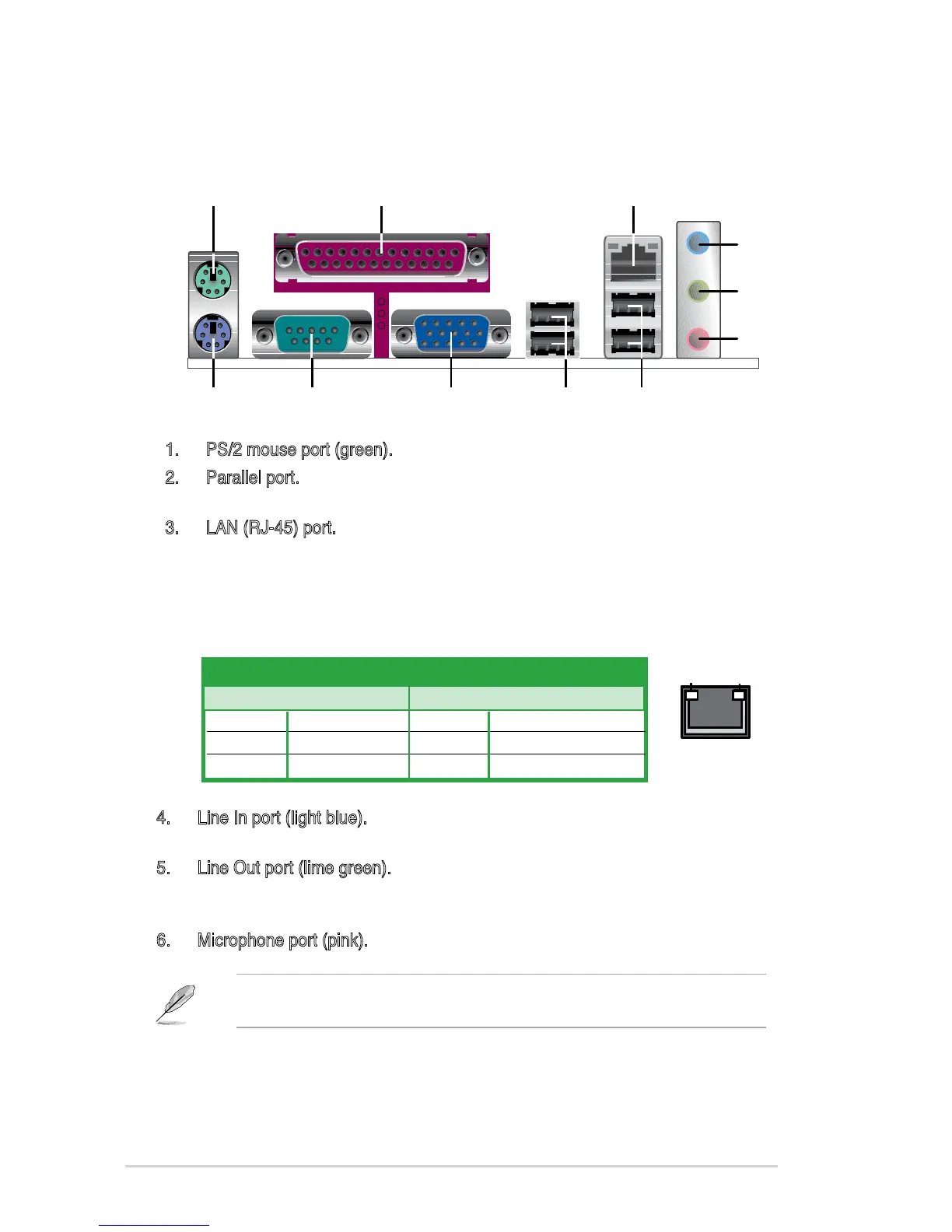

1.10.1 Rear panel connectors
Refer to the audio conguration table on the next page for the function of the
audio ports in 2, 4, or 6-channel conguration.
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. LAN (RJ-45) port. Supported by Marvell Gigabit LAN controller, this port
allows Gigabit connection to a Local Area Network (LAN) through a network
hub. Refer to the table below for the LAN port LED indications.
4. Line In port (light blue). This port connects the tape, CD, DVD player, or other
audio sources.
5. Line Out port (lime green). This port connects a headphone or a speaker. In
4-channel, and 6-channel conguration, the function of this port becomes
Front Speaker Out.
6. Microphone port (pink). This port connects a microphone.
