Audio 2, 4, or 6-channel conguration
Light Blue Line In Rear Speaker Out Rear Speaker Out
Lime Green Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Bass/Center
Port Headset 4-channel 6-channel
2-channel
7. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
8. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
9. VGA port. This port is for a VGA monitor or other VGA-compatible devices.
10. Serial port. This 9-pin COM1 port is for pointing devices or other serial
devices.
11. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
1.10.2 Internal connectors
1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided oppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the oppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using an FDD cable with a covered Pin 5.
P5GC-VM
R

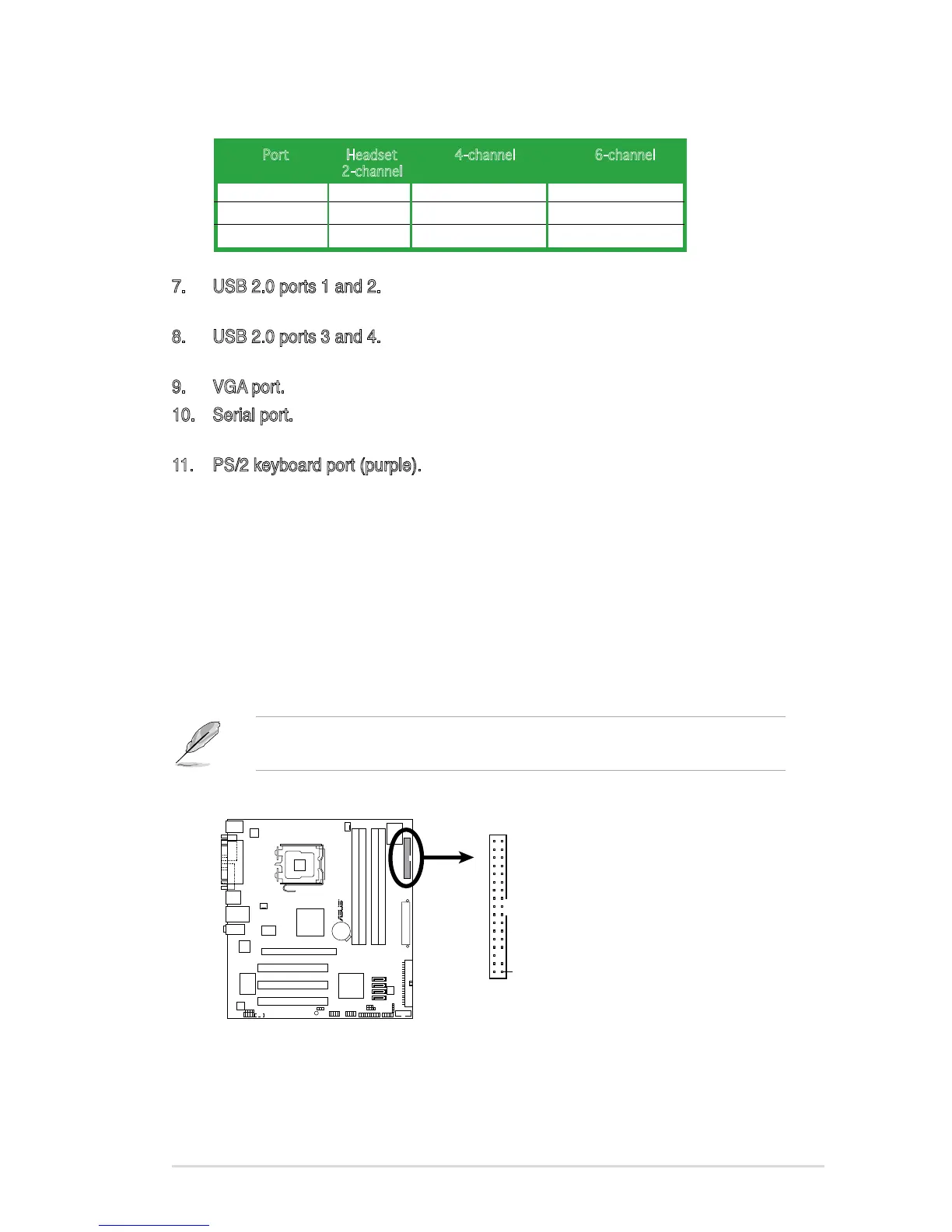

P5GC-VM Floppy Disk Drive Connector
NOTE:
Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN 1
FLOPPY
