1.6.2 Installling the CPU heatsink and fan
The Intel
®
Core™2 Duo/Pentium
®
D/Pentium
®
4 and Celeron
®
D processors
require a specially designed heatsink and fan assembly to ensure optimum
thermal condition and performance.
• Install the motherboard to the chassis before you install the CPU fan
and heatsink assembly
• When you buy a boxed Intel
®
Core™2 Duo/Pentium
®
D/Pentium
®
4
or Celeron
®
D LGA775 processor, the package includes the CPU fan
and heatsink assembly. If you buy a CPU separately, make sure that
you use only Intel
®
-certied multi-directional heatsink and fan.
• Your I Intel
®
Core™2 Duo/Pentium
®
D/Pentium
®
4 or Celeron
®
D
LGA775 LGA775 heatsink and fan assembly comes in a push-pin
design and requires no tool to install.
If you purchased a separate CPU heatsink and fan assembly, make sure
that a Thermal Interface Material is properly applied to the CPU heatsink
or CPU before you install the heatsink and fan assembly.
To install the CPU heatsink and fan:

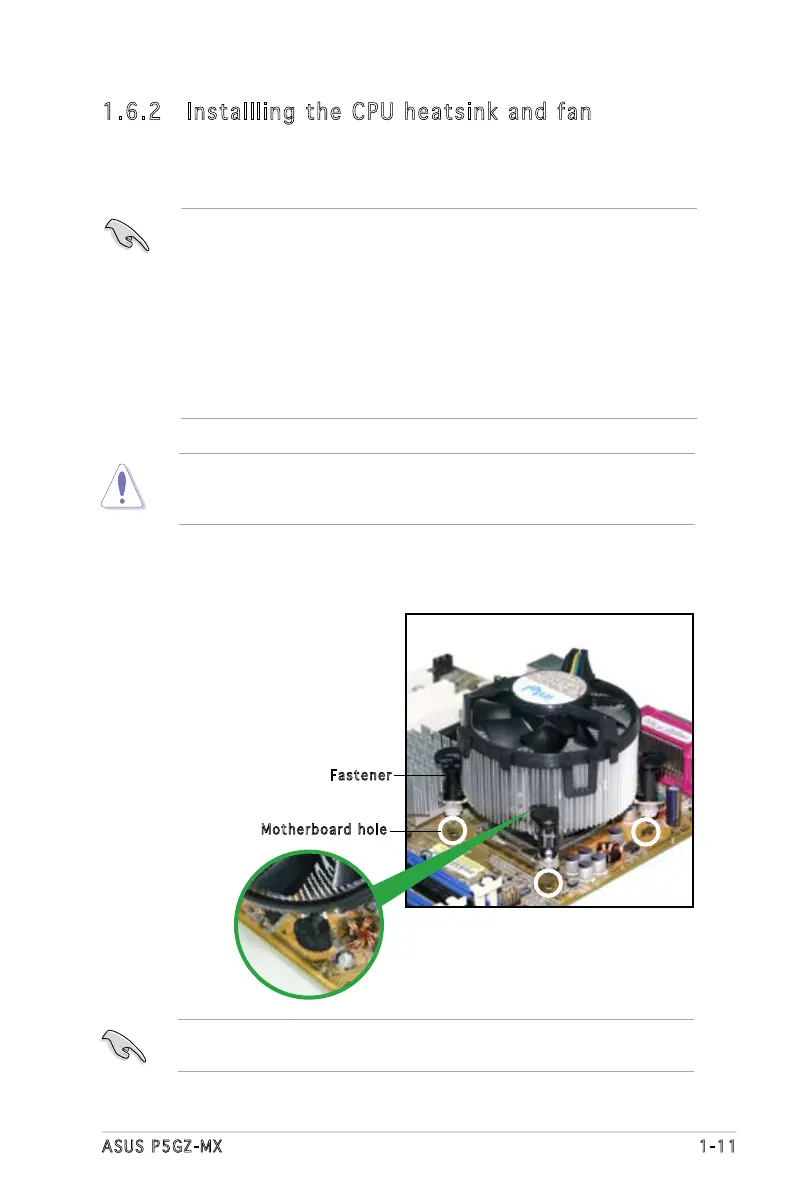

1. Place the heatsink on top of the
installed CPU, making sure that
the four fasteners match the
holes on the motherboard.
Fasten er
Mother boar d hole
Make sure each fastener is oriented as shown, with the narrow groove
directed outward.
