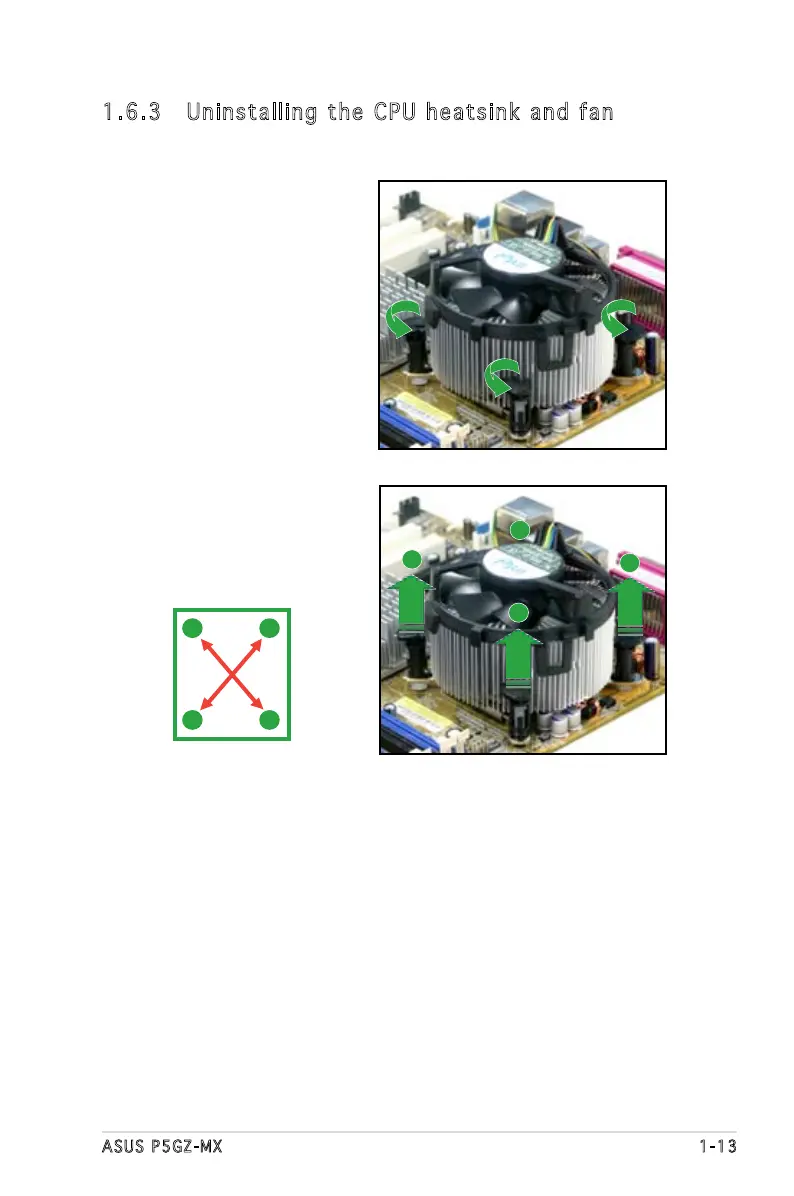

To uninstall the CPU heatsink and fan:
1.
Disconnect the CPU fan
cable from the connector
on the motherboard.
2.
Rotate each fastener
counterclockwise.
3.
Pull up two fasteners at a
time in a diagonal sequence
to disengage the heatsink
and fan assembly from the
motherboard.
A
A
B
B
B
B
A
A
24
26
Table of Contents
Default Chapter
3
Table of Contents
3
Canadian Department of Communications Statement
6
Federal Communications Commission Statement
6
Notices
6
Electrical Safety
7
Safety Information
7
About this Guide
8
Conventions Used in this Guide
9
Typography
9
P5GZ-MX Specifications Summary
10
Chapter 1: Product Introduction
13
Welcome
14
Package Contents
14
Special Features
14
Product Highlights
14
1.3.2 Innovative ASUS Features
16
Before You Proceed
17
Onboard LED
17
Motherboard Overview
18
Placement Direction
18
Screw Holes
18
Motherboard Layout
19
Central Processing Unit (CPU)
20
Installling the CPU
20
Installling the CPU Heatsink and Fan
23
Uninstalling the CPU Heatsink and Fan
25
System Memory
27
Overview
27
Memory Configurations
27
DDR2 Qualified Vendors List
28
Installing a DIMM
29
Removing a DIMM
29
Expansion Slots
30
Installing an Expansion Card
30
Configuring an Expansion Card
30
Interrupt Assignments
31
PCI Slots
32
PCI Express X16
32
PCI Express X1
32
Jumpers
35
Clear RTC RAM
35
PCI-E Mode Slection
36
XJ1-5 Jumper Setting Configurations
36
1.10 Connectors
38
1.10.1 Rear Panel Connectors
38
LAN Port LED Indications
38
1.10.2 Internal Connectors
39
Serial Ata Connectors
41
Atx Power Connectors
43
Chassis Intrusion Connector
45
Front Panel Audio Connector
45
System Panel Connector
46
Chapter 2: BIOS Setup
47
Managing and Updating Your BIOS
48
Creating a Bootable Floppy Disk
48
ASUS EZ Flash Utility
49
AFUDOS Utility
50
Updating the Bios File
51
ASUS Crashfree BIOS 2 Utility
52
Recovering the Bios from the Support CD
53
ASUS Update Utility
54
Updating the Bios through the Internet
55
Updating the Bios through a Bios File
56
BIOS Setup Program
57
BIOS Menu Screen
58
Menu Bar
58
Navigation Keys
58
Menu Items
59
Sub-Menu Items
59
Configuration Fields
59
Pop-Up Window
59
Scroll Bar
59
General Help
59
Main Menu
60
System Time
60
System Date
60
Legacy Diskette a
60
Primary, Third and Fourth IDE Master/Slave
61
IDE Configuration
62
System Information
63
Advanced Menu
64
Jumperfree Configuration
64
LAN Cable Status
66
USB Configuration
67
CPU Configuration
68
Chipset
69
Onboard Devices Configuration
71
PCI Pnp
73
Power Menu
74
Suspend Mode
74
ACPI 2.0 Support
74
ACPI APIC Support
74
APM Configuration
75
Hardware Monitor
77
Boot Menu
78
Boot Device Priority
78
Boot Settings Configuration
79
Security
80
Change User Password
81
Clear User Password
81
Exit Menu
82
Discard Changes
83
Load Setup Defaults
83
Chapter 3: Software Support
85
Installing an Operating System
86
Support CD Information
86
Running the Support CD
86
Drivers Menu
87
Utilities Menu
88
Manuals Menu
89
ASUS Contact Information
90
Cpu Features
91
Appendix: CPU Features
92
Intel ® EM64T
92
Using the Intel ® EM64T Feature
92
Enhanced Intel Speedstep Technology (EIST)
92
System Requirements
92
A.2.1 System Requirements
92
Using the EIST
93
Intel ® Hyper-Threading Technology
94
Using the Hyper-Threading Technology
94
