2-14 Chapter 2: Hardware information
Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
2.4 System memory
2.4.1 Overview
The motherboard comes with two Double Data Rate 3 (DDR3) and four Double
Data Rate 2 (DDR2) Dual Inline Memory Modules (DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2/DDR DIMM but
is notched differently to prevent installation on a DDR2/DDR DIMM socket, while
a DDR3/DDR2 module has a 240-pin footprint compared to the 184-pin DDR
DIMM. DDR3 modules are developed for better performance with less power

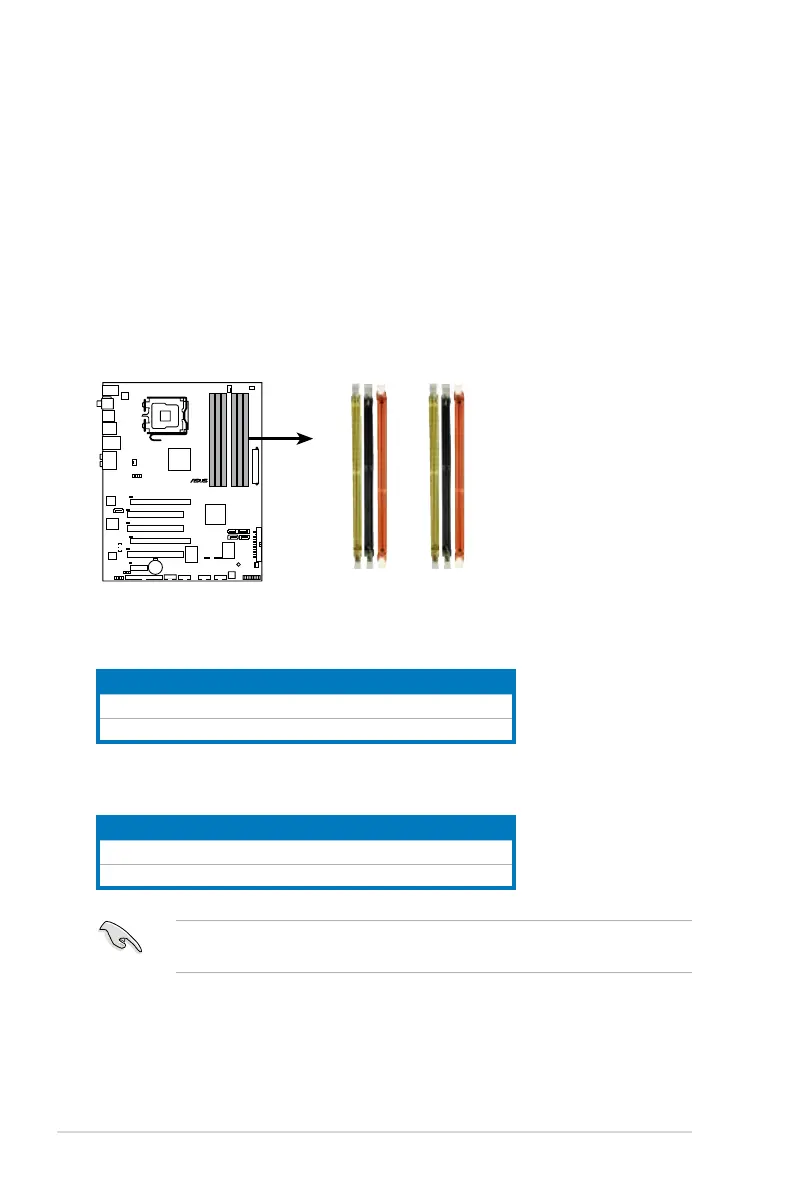

consumption. The gure illustrates the location of the DDR3/DDR2 DIMM sockets:
DDR3 module installation
DDR2 module installation
You can only install either DDR2 module(s) or DDR3 module(s) on the
motherboard; otherwise, the system will not boot up.
P5KC
®
P5KC 240-pin DDR3/DDR2 DIMM sockets
DDR2_A1
DDR2_A2
DDR3_A1
DDR2_B1
DDR2_B2
DDR3_B1
Channel Sockets
Channel A DDR3_DIMM_A1
Channel B DDR3_DIMM_B1
