2-32 Chapter 2: Hardware information

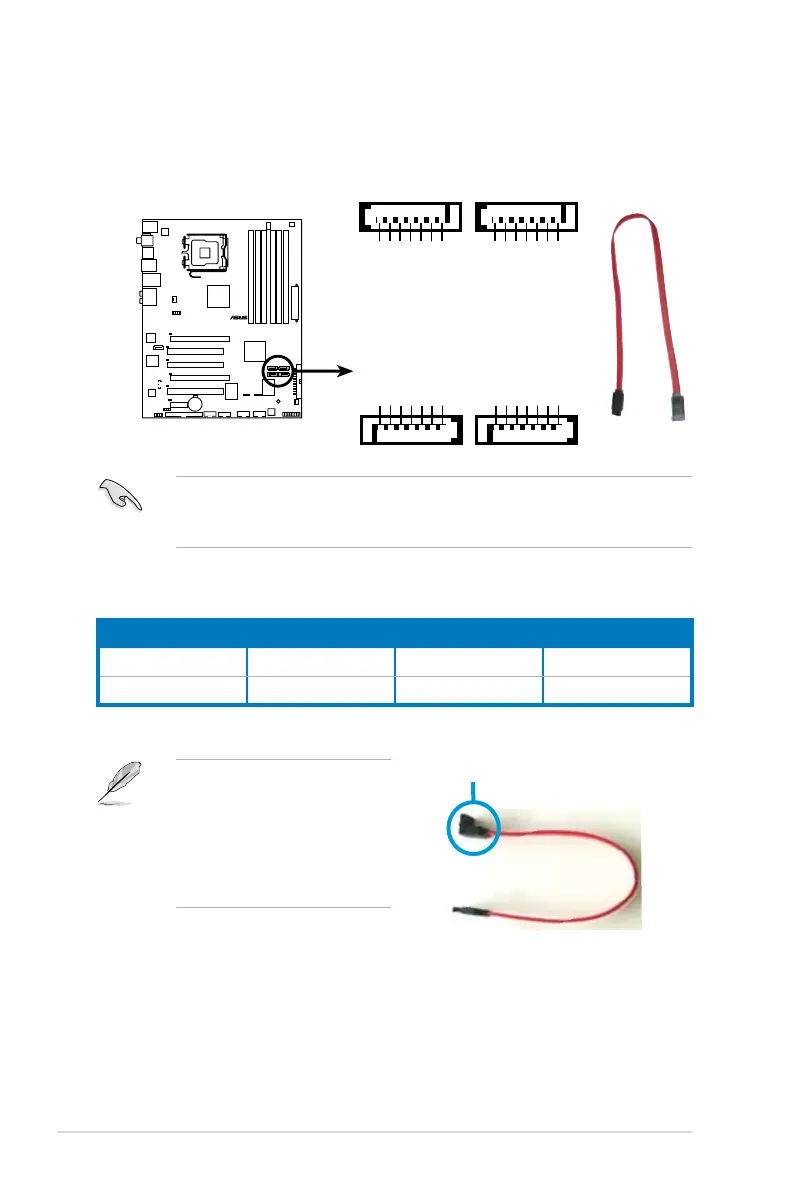

3. ICH9 Serial ATA connectors
(7-pin SATA1 [red], SATA2 [red], SATA3 [black], SATA4 [black])
These connectors are for the Serial ATA signal cables for Serial ATA hard disk
drives.
When using the connectors in Standard IDE mode, connect the primary (boot)
hard disk drive to the SATA1/2 connector. Refer to the table below for the
recommended SATA hard disk drive connections.
Connect the right-angle side
of SATA signal cable to SATA
device. Or you may connect the
right-angle side of SATA cable to
the onboard SATA port to avoid
mechanical conict with huge
graphics cards.
right angle side
Serial ATA hard disk drive connection
Connector Color Setting Use
SATA 1/2 Red Master Boot disk
SATA 3/4 Black Slave Data disk
R
P5B
P5B SATA Connectors
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
SATA1
SATA4
SATA3
SATA2
P5KC
®
P5KC SATA connectors
SATA3
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
SATA2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA4 SATA1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND

Asus P5KC Specifications

General

ECC	No
Non-ECC	Yes
Number of memory slots	6
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
Number of SATA connectors	5
Special features	ASUS Quiet Thermal Solution: - ASUS AI Gear2. - ASUS AI Nap. - ASUS Fanless Design: Heat-pipe solution. - ASUS Fanless Design: Stack Cool 2. - ASUS Q-Fan 2. ASUS Crystal Sound: - ASUS Noise Filter. ASUS EZ DIY: - ASUS Q-Connector. - ASUS O.C. Profile. - ASUS CrashFree BIOS 3. - ASUS EZ Flash 2. - ASUS AI Slot Detector.
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Controller interface type	Serial ATA
Controller 2nd interface type	UltraDMA 133/100/66
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard form factor	ATX
Compatible operating systems	2 x PCI-E x16 1 x PCI-E x1 3 x PCI
Bundled software	Drivers ASUS PC Probe II ASUS Update ASUS AI Suite
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
