ASUS P5L-MX 1-15
1.7 System memory
1.7.1 Overview
The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline
Memory Modules (DIMM) sockets.
A DDR2 module has the same physical dimensions as a DDR DIMM but has
a 240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are
notched differently to prevent installation on a DDR DIMM socket.

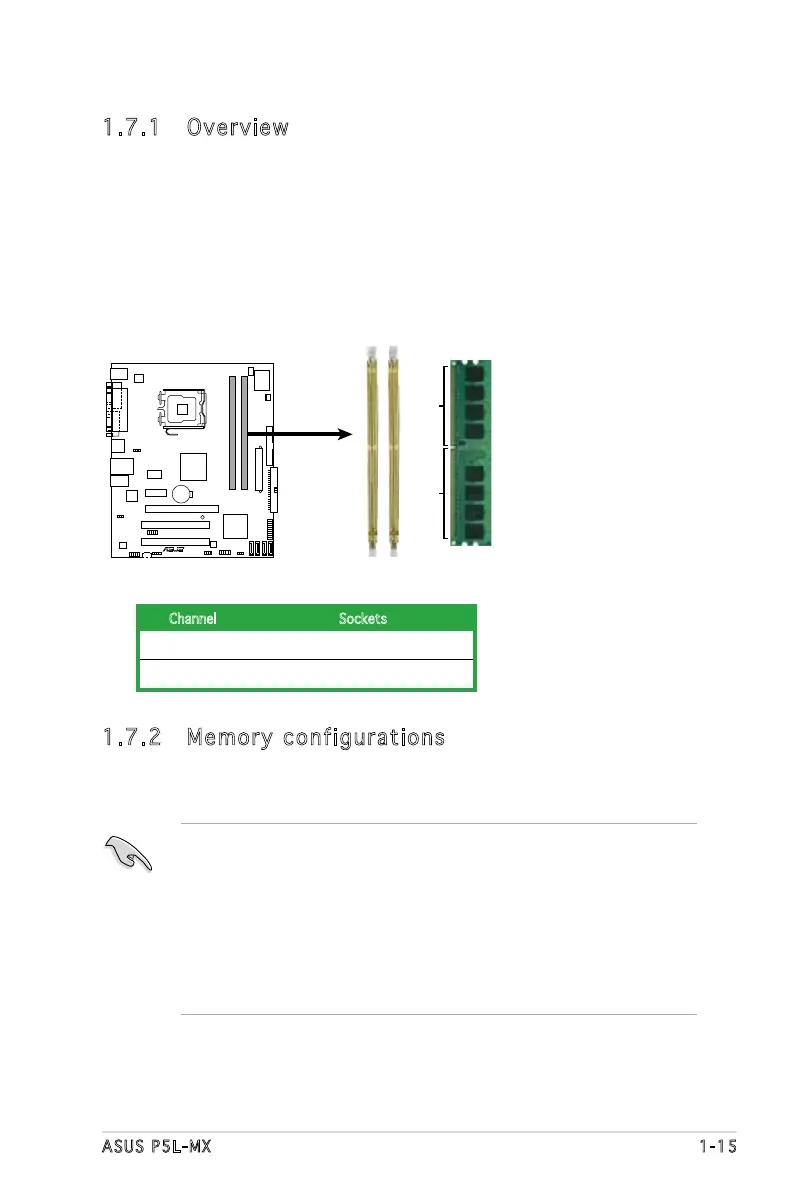

The gure illustrates the location of the DDR2 DIMM sockets:
1.7.2 Memory configurations
You may install 128MB, 256 MB, 512 MB and 1 GB unbuffered non-ECC
DDR2 DIMMs into the DIMM sockets.
• For dual-channel conguration, the size of memory module installed
per channel must be the same (DIMM_A1= DIMM_B1)
• Always install DIMMs with the same CAS latency. For optimum
compatibility, it is recommended that you obtain memory modules
from the same vendor. Refer to the DDR2 Qualied Vendors List on
page 1-17 for details.
• If you are installing only one DIMM module for a Single-channel
conguration, install the module on DIMM_B1.
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1
P5L-MX
R
P5L-MX 240-pin DDR2 DIMM Sockets
128 Pins
112 Pins
DIMM_B1
DIMM_A1

Asus P5L-MX Specifications

General

Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Number of SATA connectors	4
Number of Parallel ATA connectors	1
Manageability features	WfM 2.0, DMI 2.0, WOL PME, WOR PME, PXE
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
BIOS type	AMI
BIOS memory size	32 Mbit
Audio chip	ADI AD1986A
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows Vista/XP/2000
Graphics card	GMA 950
Networking features	100/1000
